BCT3756E - High Efficiency Dimming Boost WLED Driver

Description

The BCT3756E is a white LED driver with integrated boost converter.

With an internal 38V switch FET, the BCT3756E drives up a string of up to 10 LEDs in series.

Features

  • Support 0.3% PWM dimming.
  • 1.1MHz Switching Frequency.
  • 38V Over-voltage Protection for up to 10 LEDs in Series.
  • 200mV Reference Voltage.
  • 2.7V to 5.5V Input Voltage Range.
  • Over-current and Over-temperature Protection.
  • Built-in Soft-start Limits Inrush Current.
  • Package DFN2x2-6L.

📥 Download Datasheet

Datasheet Details

Part number BCT3756E
Manufacturer BROADCHIP
File Size 1.17 MB
Description High Efficiency Dimming Boost WLED Driver
Datasheet download datasheet BCT3756E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT3756 Dimming Boost WLED Driver
BCT3752 Asynchronies Boost
BCT3024 24-CHANNELS LED DRIVER
BCT3119 9-Channel 64steps Constant-Current LED Driver
BCT3142 1.1A Buck/Boost Charge Pump LED Driver

Full PDF Text Transcription

Click to expand full text

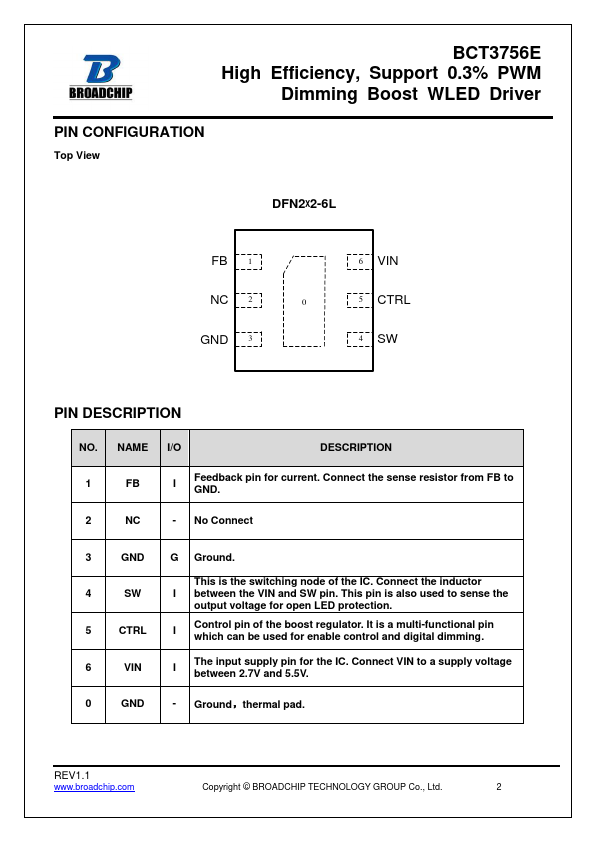

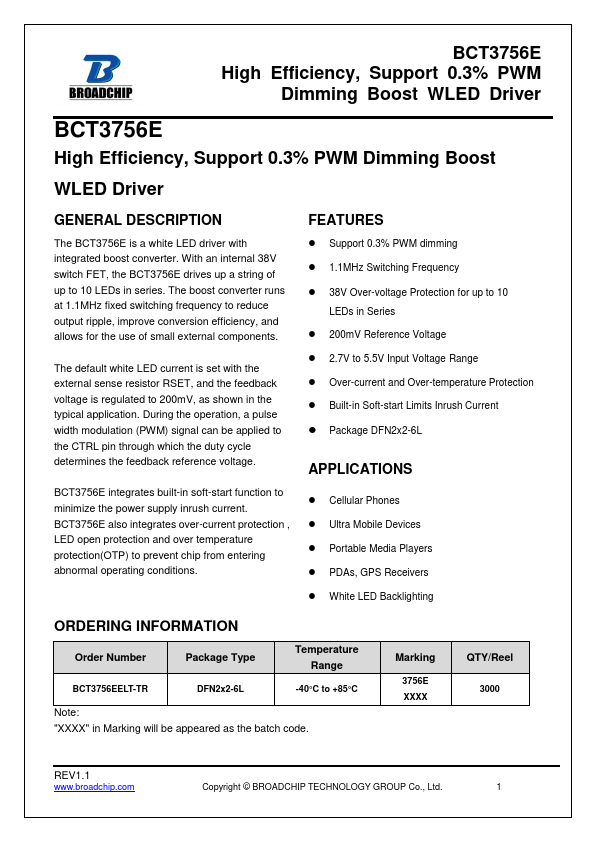

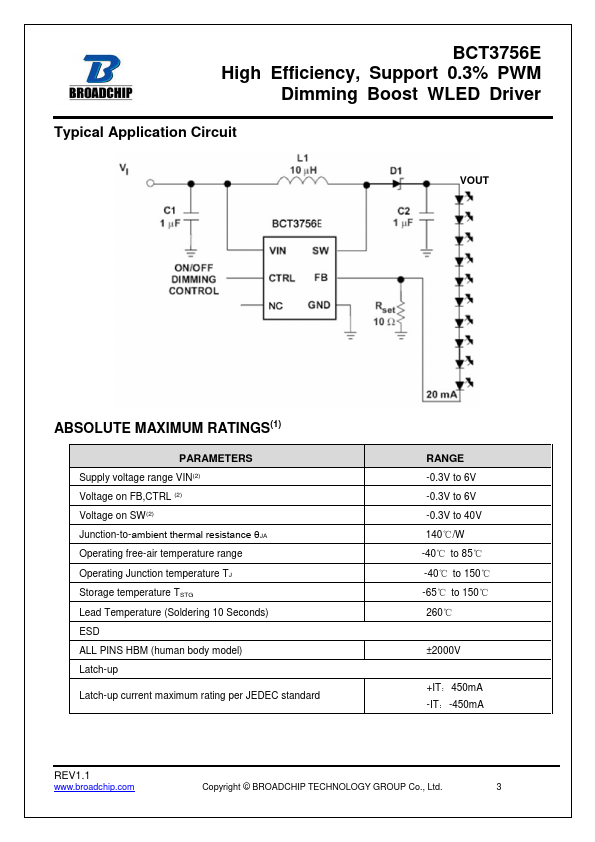

BCT3756E High Efficiency, Support 0.3% PWM Dimming Boost WLED Driver BCT3756E High Efficiency, Support 0.3% PWM Dimming Boost WLED Driver GENERAL DESCRIPTION The BCT3756E is a white LED driver with integrated boost converter. With an internal 38V switch FET, the BCT3756E drives up a string of up to 10 LEDs in series. The boost converter runs at 1.1MHz fixed switching frequency to reduce output ripple, improve conversion efficiency, and allows for the use of small external components. The default white LED current is set with the external sense resistor RSET, and the feedback voltage is regulated to 200mV, as shown in the typical application.
