BCT4221 - USB2.0 Hi-Speed Switches

Datasheet Summary

Description

The BCT4221 is a high bandwidth, fast double-pole double-throw (DPDT) analog switch.

Its wide bandwidth and low bit-to-bit skew allow it to pass high-speed differential signals with good signal integrity.

Features

VCC Operating Range: 2.7V-5.5V.
Analog Signal Range: 0 to VCC.
-3dB Bandwidth: 720MHz.
Off Isolation:-38dB @250MHz.
Crosstalk Rejection:- 38dB @250MHz.
ON-Resistance:6Ω Typical.
Extended Temperature Range:.
40°C to 85°C.
Green QFN2.0X1.5-10L packages.
ESD:HBM 8000V.

Datasheet Details

Part number	BCT4221
Manufacturer	BROADCHIP
File Size	283.43 KB
Description	USB2.0 Hi-Speed Switches
Datasheet	BCT4221 Datasheet

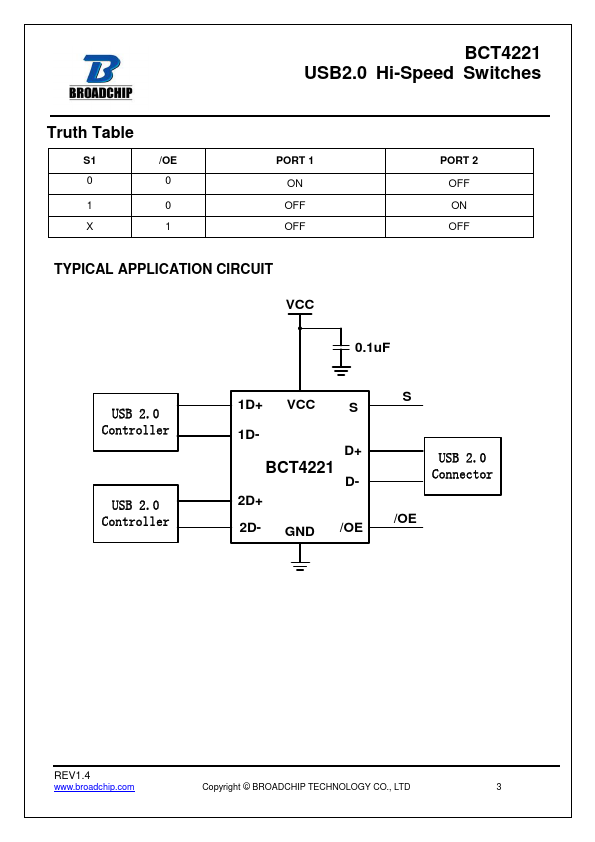

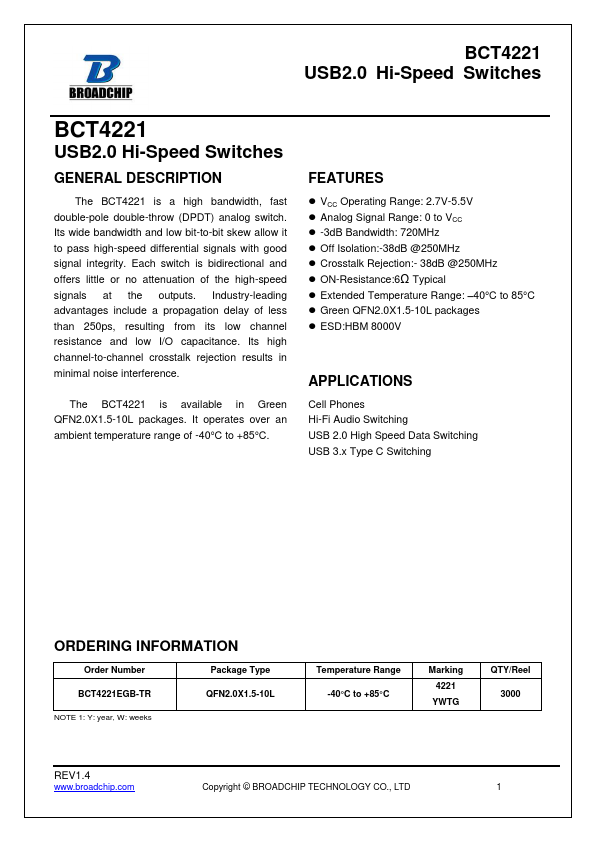

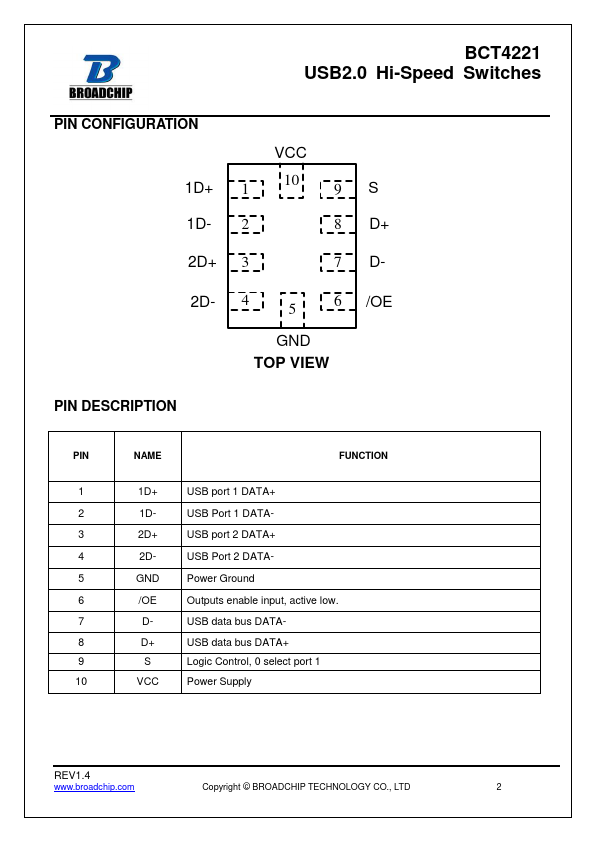

Additional preview pages of the BCT4221 datasheet.

📁 Similar Datasheet

BCT10-S30-UP6X2-H1151 - Capacitive sensor (Turck)

BCT10-S30-UP6X2T-H1151 - Capacitive sensor (Turck)

BCT5-S18-UN6X2T-H1151 - Capacitive sensor (Turck)

BCT5-S18-UP6X2T-H1151 - Capacitive sensor (Turck)

BCT72328 - LED Driver (BlueChips)

BCT72328S - LED Display Driver and Key Scan (BlueChips)

Full PDF Text Transcription

Click to expand full text

BCT4221 USB2.0 Hi-Speed Switches BCT4221 USB2.0 Hi-Speed Switches GENERAL DESCRIPTION The BCT4221 is a high bandwidth, fast double-pole double-throw (DPDT) analog switch. Its wide bandwidth and low bit-to-bit skew allow it to pass high-speed differential signals with good signal integrity. Each switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. Industry-leading advantages include a propagation delay of less than 250ps, resulting from its low channel resistance and low I/O capacitance. Its high channel-to-channel crosstalk rejection results in minimal noise interference. The BCT4221 is available in Green QFN2.0X1.5-10L packages. It operates over an ambient temperature range of -40°C to +85°C. FEATURES  VCC Operating Range: 2.7V-5.
