BCT4224 - USB2.0 High-Speed 4:1 Mux/DeMux Switch

Description

The BCT4224 is a high bandwidth, fast dual 4-Channels (DP4T) Analog Mux/DeMux Switch.

Wide bandwidth and low bit-to-bit skew allow it to pass high-speed differential signals with good signal integrity.

Features

  • VCC Operating Range: 2.3V ~ 5.5V.
  • Analog Signal Range: 0V ~ 3.6V.
  • Differential -3dB Bandwidth: 1.6GHz Typical.
  • Off Isolation: -44dB@240MHz -28dB@800MHz.
  • RON: 3.0Ω Typical.
  • ESD Tolerance 4kV HBM on all pins.
  • QFN16L 2.6x1.8mm Package.

📥 Download Datasheet

Datasheet Details

Part number BCT4224
Manufacturer BROADCHIP
File Size 539.62 KB
Description USB2.0 High-Speed 4:1 Mux/DeMux Switch
Datasheet download datasheet BCT4224 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT4221 USB2.0 Hi-Speed Switches
BCT4222A High-Speed DPDT Analog Switch
BCT4222B 350MHz DPDT Analog Switch
BCT4222C High-Speed DPDT Analog Switch
BCT4223 Dual-SPDT Analog Switch

Full PDF Text Transcription

Click to expand full text

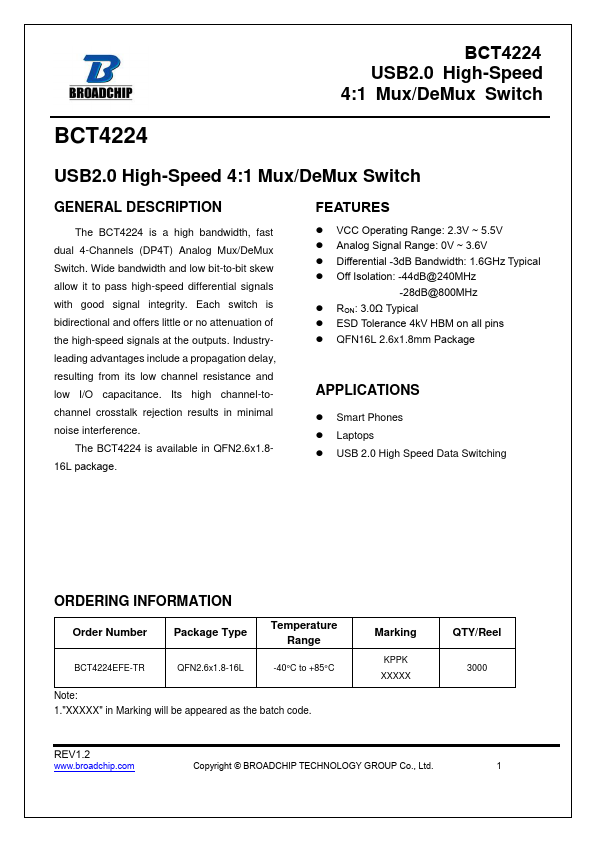

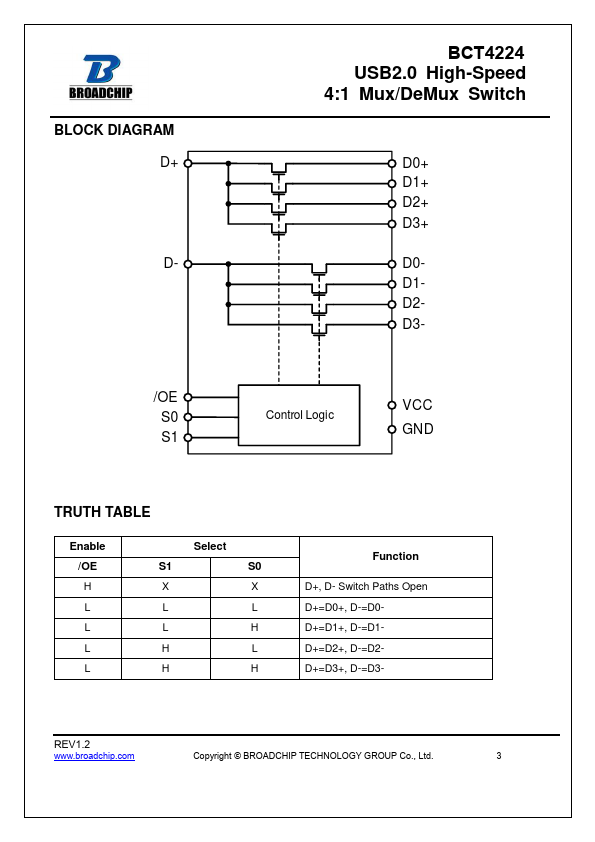

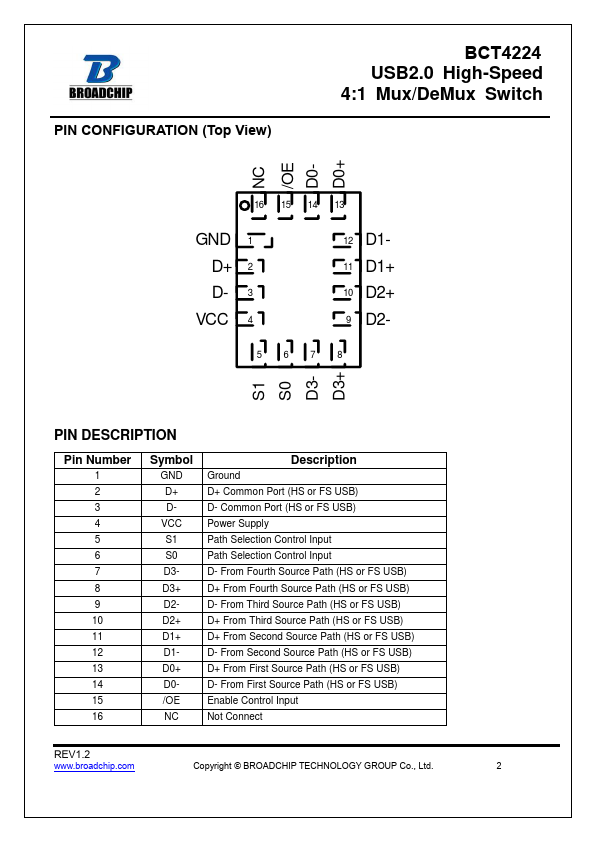

BCT4224 USB2.0 High-Speed 4:1 Mux/DeMux Switch BCT4224 USB2.0 High-Speed 4:1 Mux/DeMux Switch GENERAL DESCRIPTION The BCT4224 is a high bandwidth, fast dual 4-Channels (DP4T) Analog Mux/DeMux Switch. Wide bandwidth and low bit-to-bit skew allow it to pass high-speed differential signals with good signal integrity. Each switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. Industryleading advantages include a propagation delay, resulting from its low channel resistance and low I/O capacitance. Its high channel-tochannel crosstalk rejection results in minimal noise interference. The BCT4224 is available in QFN2.6x1.816L package. FEATURES  VCC Operating Range: 2.3V ~ 5.5V  Analog Signal Range: 0V ~ 3.6V  Differential -3dB Bandwidth: 1.
