BCT4227 - High-Speed DPDT Analog Switch

General Description

The BCT4227 is a high bandwidth, fast double-pole double-throw (DPDT) analog switch.

Its wide bandwidth and low bit-to-bit skew allow it to pass high-speed differential signals with good signal integrity.

Key Features

  • VCC Operating Range: 1.65V to 4.5V.
  • Rail-to-Rail Signal Range.
  • ON-Resistance Matching: 0.05Ω (TYP).
  • ON-Resistance Flatness: 0.08Ω (TYP).
  • High Off Isolation: 58dB at 10MHz.
  • 54dB (10MHz) Crosstalk Rejection Reduces Signal Distortion.
  • Break-Before-Make Switching.
  • -3dB Bandwidth: 720MHz.
  • Extended Industrial Temperature Range:.
  • 40°C to 85°C.
  • Packaging (Pb-free & Green available).

📥 Download Datasheet

Datasheet Details

Part number BCT4227
Manufacturer BROADCHIP
File Size 811.65 KB
Description High-Speed DPDT Analog Switch
Datasheet download datasheet BCT4227 Datasheet

Other Datasheets by BROADCHIP

Part Number Description
BCT4221 USB2.0 Hi-Speed Switches
BCT4222A High-Speed DPDT Analog Switch
BCT4222B 350MHz DPDT Analog Switch
BCT4222C High-Speed DPDT Analog Switch
BCT4223 Dual-SPDT Analog Switch
BCT4224 USB2.0 High-Speed 4:1 Mux/DeMux Switch
BCT4257 SPDT Analog Switch
BCT4005 Ultra Low ON-Resistance Low Voltage Dual SPDT Analog Switch
BCT4157 Low-Voltage SPDT Analog Switch
BCT4302B Dual SIM Card Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

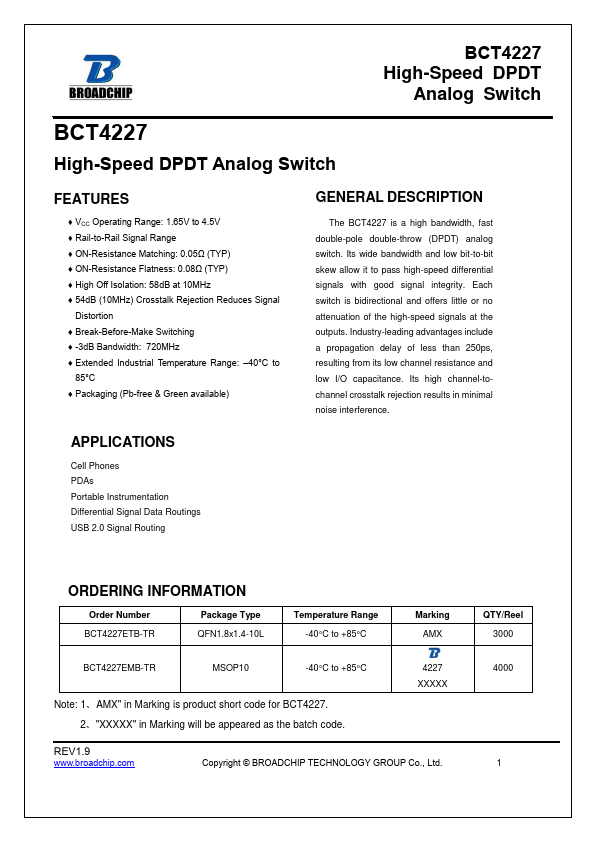

BCT4227 High-Speed DPDT Analog Switch BCT4227 High-Speed DPDT Analog Switch FEATURES ♦ VCC Operating Range: 1.65V to 4.5V ♦ Rail-to-Rail Signal Range ♦ ON-Resistance Matching: 0.05Ω (TYP) ♦ ON-Resistance Flatness: 0.08Ω (TYP) ♦ High Off Isolation: 58dB at 10MHz ♦ 54dB (10MHz) Crosstalk Rejection Reduces Signal Distortion ♦ Break-Before-Make Switching ♦ -3dB Bandwidth: 720MHz ♦ Extended Industrial Temperature Range: –40°C to 85°C ♦ Packaging (Pb-free & Green available) GENERAL DESCRIPTION The BCT4227 is a high bandwidth, fast double-pole double-throw (DPDT) analog switch. Its wide bandwidth and low bit-to-bit skew allow it to pass high-speed differential signals with good signal integrity.
