BCT646 - 2:1 MIPI C-PHY D-PHY 4-Data Lane Switch

Product Overview

BROADCHIP

📥 Download Datasheet

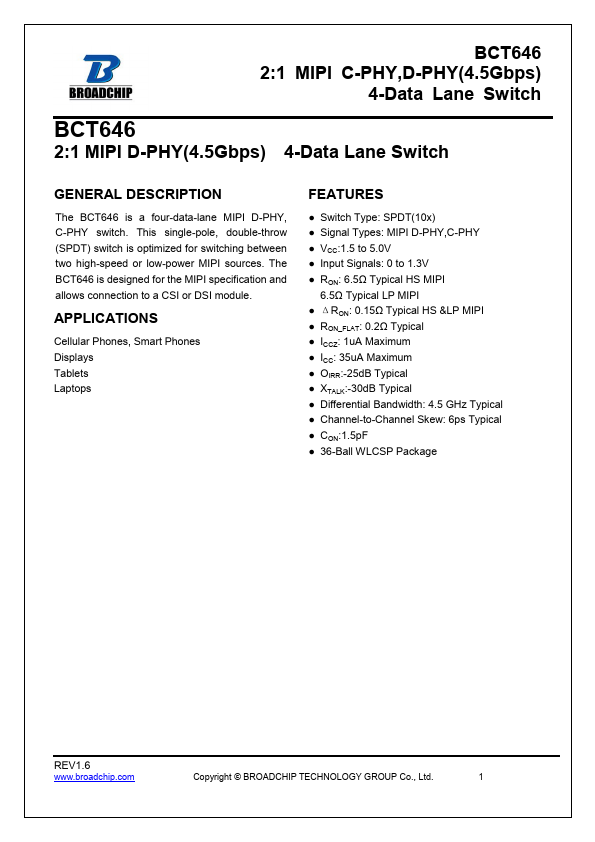

BCT646 2:1 MIPI C-PHY D-PHY 4-Data Lane Switch by BROADCHIP - Datasheet Preview — Datasheet preview – BCT646

Datasheet Details

Part number	BCT646
Manufacturer	BROADCHIP
File Size	0.98 MB
Description	2:1 MIPI C-PHY D-PHY 4-Data Lane Switch
Datasheet	BCT646 Datasheet

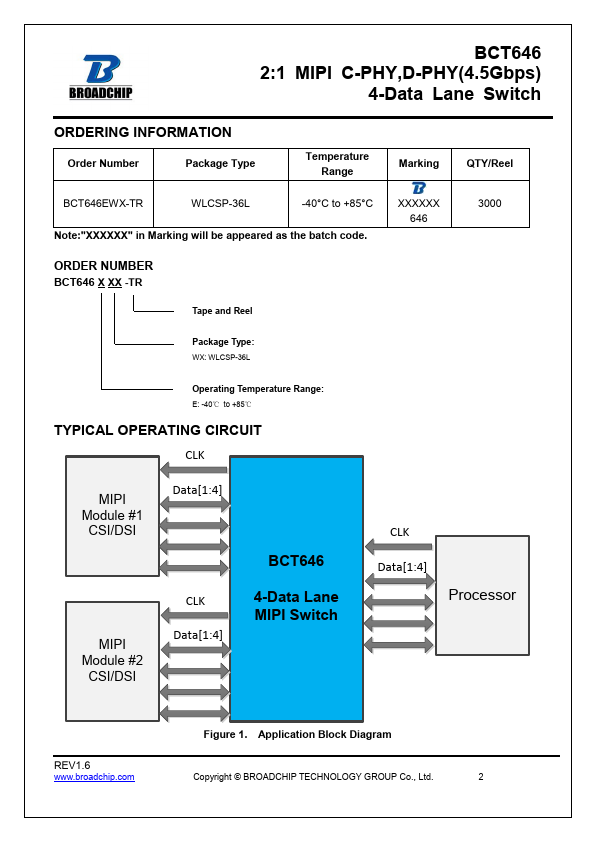

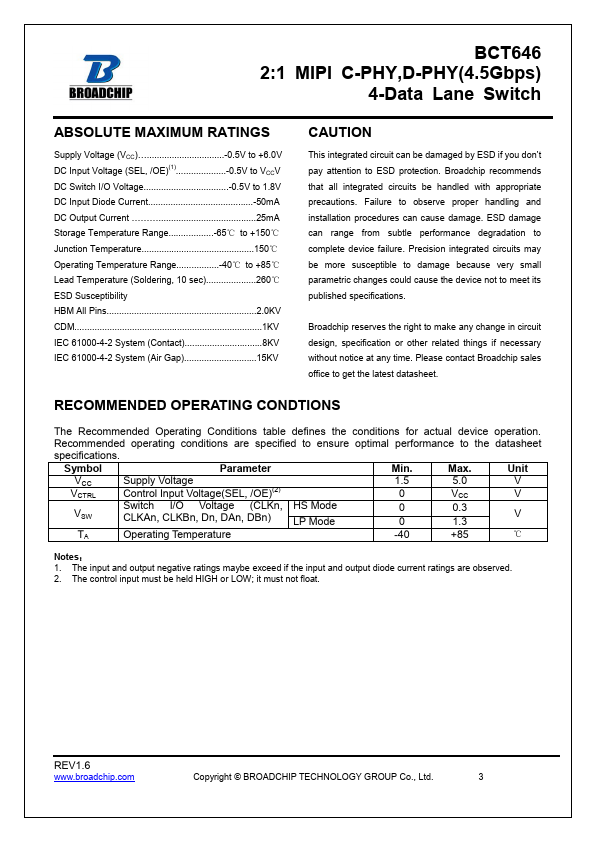

Additional preview pages of the BCT646 datasheet.

Product details

Description

The BCT646 is a four-data-lane MIPI D-PHY, C-PHY switch.

Features

Switch Type: SPDT(10x).
Signal Types: MIPI D-PHY,C-PHY.
VCC:1.5 to 5.0V.
Input Signals: 0 to 1.3V.
RON: 6.5Ω Typical HS MIPI 6.5Ω Typical LP MIPI.
ΔRON: 0.15Ω Typical HS &LP MIPI.
RON_FLAT: 0.2Ω Typical.
ICCZ: 1uA Maximum.
ICC: 35uA Maximum.
OIRR:-25dB Typical.
XTALK:-30dB Typical.
Differential Bandwidth: 4.5 GHz Typical.
Channel-to-Channel Skew: 6ps Typical.
CON:1.5pF.
36-Ball WLCSP Package REV1.6 www. broadchip. com Co.
