BCT78L10E - 150mA High Voltage Regulators

Description

The BCT78L10E is a low-power, high voltage, low-dropout, CMOS linear voltage regulators operate up to 36.0V input voltage with 3uA low power.

It is the perfect choice for high input voltage, low power applications.

A low ground current makes this part attractive for battery operated power systems.

Features

  • include fold-back current limit and thermal shutdown protection. The BCT78L10E is available in Green SOT23-3, SOT89-3 packages. It operates over an ambient temperature range of -40°C to +85°C.

📥 Download Datasheet

Datasheet Details

Part number BCT78L10E
Manufacturer BROADCHIP
File Size 526.05 KB
Description 150mA High Voltage Regulators
Datasheet download datasheet BCT78L10E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT72328 LED Driver BlueChips
BCT72328S LED Display Driver and Key Scan BlueChips
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck

Other Datasheets by BROADCHIP

Part Number Description
BCT78L12E 150mA High Voltage Regulators
BCT7915H Over-Voltage Protection Load Switch
BCT0104 4-Bit Bidirectional Voltage-Level Translator
BCT1117 1A Bipolar Linear Regulator
BCT1117B 0.8A Bipolar Linear Regulator

Full PDF Text Transcription

Click to expand full text

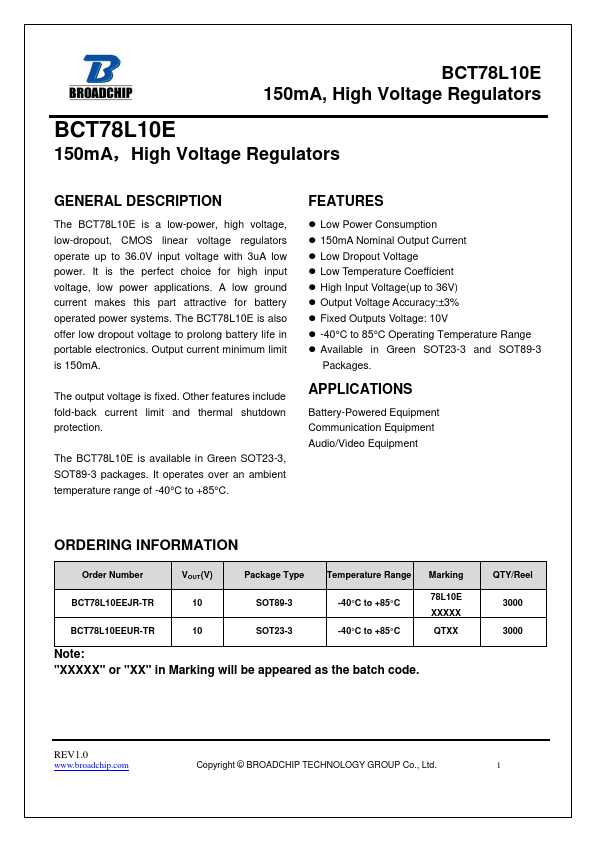

BCT78L10E 150mA, High Voltage Regulators BCT78L10E 150mA，High Voltage Regulators GENERAL DESCRIPTION The BCT78L10E is a low-power, high voltage, low-dropout, CMOS linear voltage regulators operate up to 36.0V input voltage with 3uA low power. It is the perfect choice for high input voltage, low power applications. A low ground current makes this part attractive for battery operated power systems. The BCT78L10E is also offer low dropout voltage to prolong battery life in portable electronics. Output current minimum limit is 150mA. The output voltage is fixed. Other features include fold-back current limit and thermal shutdown protection. The BCT78L10E is available in Green SOT23-3, SOT89-3 packages. It operates over an ambient temperature range of -40°C to +85°C.
