BCT78L12E Datasheet 150mA High Voltage Regulators

Manufacturer: BROADCHIP

Overview: BCT78L12E 150mA, High Voltage Regulators BCT78L12E 150mA，High Voltage Regulators.

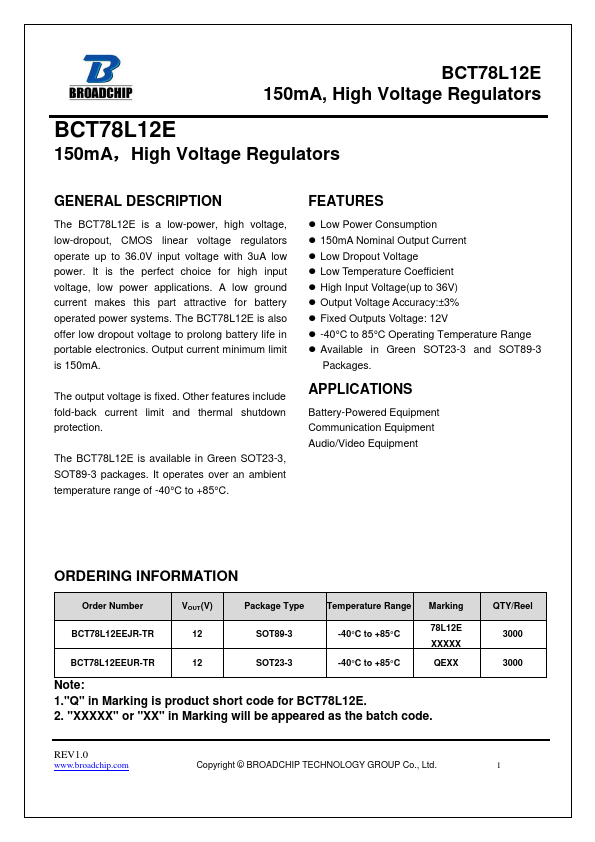

BCT78L12E 150ma high voltage regulators by BROADCHIP - Datasheet Preview

Datasheet Details

Part number	BCT78L12E
Manufacturer	BROADCHIP
File Size	535.93 KB
Description	150mA High Voltage Regulators
Download	BCT78L12E Download (PDF)

General Description

The BCT78L12E is a low-power, high voltage, low-dropout, CMOS linear voltage regulators operate up to 36.0V input voltage with 3uA low power.

It is the perfect choice for high input voltage, low power applications.

A low ground current makes this part attractive for battery operated power systems.

Key Features

include fold-back current limit and thermal shutdown protection. The BCT78L12E is available in Green SOT23-3, SOT89-3 packages. It operates over an ambient temperature range of -40°C to +85°C.
