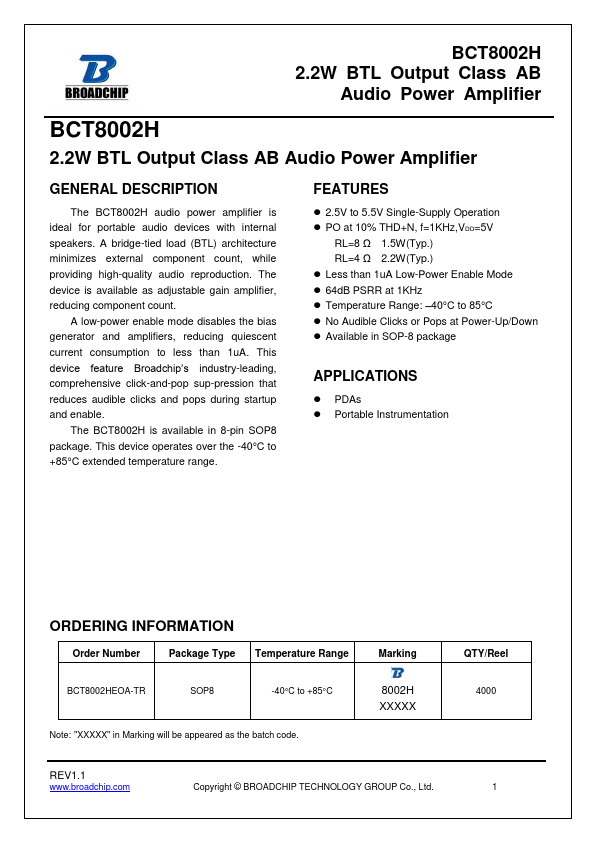

BCT8002H - 2.2W BTL Output Class AB Audio Power Amplifier

Description

The BCT8002H audio power amplifier is ideal for portable audio devices with internal speakers.

A bridge-tied load (BTL) architecture minimizes external component count, while providing high-quality audio reproduction.

The device is available as adjustable gain amplifier, reducing component count.

Features

  • 2.5V to 5.5V Single-Supply Operation.
  • PO at 10% THD+N, f=1KHz,VDD=5V RL=8 Ω 1.5W(Typ. ) RL=4 Ω 2.2W(Typ. ).
  • Less than 1uA Low-Power Enable Mode.
  • 64dB PSRR at 1KHz.
  • Temperature Range:.
  • 40°C to 85°C.
  • No Audible Clicks or Pops at Power-Up/Down.

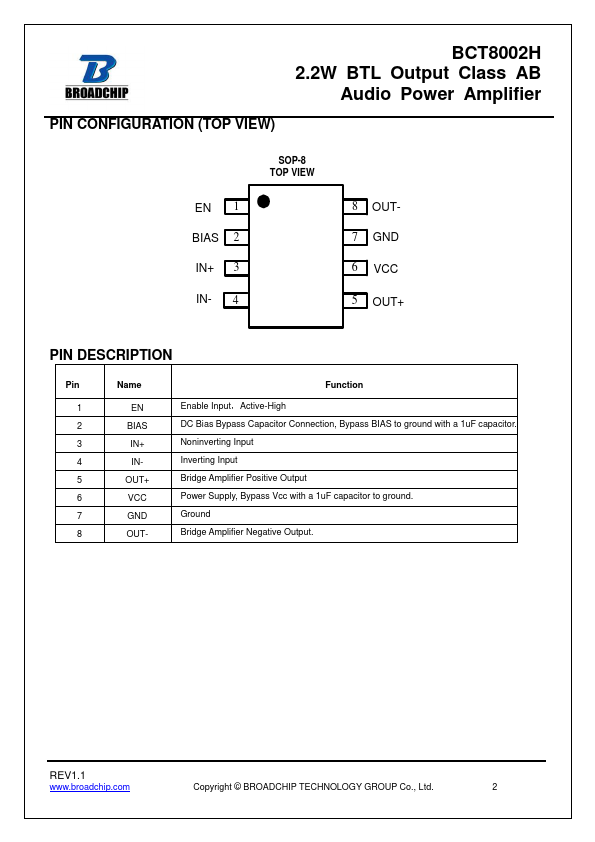

  • Available in SOP-8 package.

📥 Download Datasheet

Datasheet Details

Part number BCT8002H
Manufacturer BROADCHIP
File Size 390.42 KB
Description 2.2W BTL Output Class AB Audio Power Amplifier
Datasheet download datasheet BCT8002H Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT8002 2.2W BTL Output Class AB Audio Power Amplifier
BCT8890 2.2W BTL Output Class AB Audio Power Amplifier
BCT8890H 2.2W BTL Output Class AB Audio Power Amplifier
BCT8902 8.5V Adaptive DF-Chargepump High Efficiency Large Volume Audio Amplifier
BCT89317A High Efficiency Low Noise Class T Audio Amplifier

Full PDF Text Transcription

Click to expand full text
BCT8002H 2.2W BTL Output Class AB Audio Power Amplifier BCT8002H 2.2W BTL Output Class AB Audio Power Amplifier GENERAL DESCRIPTION The BCT8002H audio power amplifier is ideal for portable audio devices with internal speakers. A bridge-tied load (BTL) architecture minimizes external component count, while providing high-quality audio reproduction. The device is available as adjustable gain amplifier, reducing component count. A low-power enable mode disables the bias generator and amplifiers, reducing quiescent current consumption to less than 1uA. This device feature Broadchip’s industry-leading, comprehensive click-and-pop sup-pression that reduces audible clicks and pops during startup and enable. The BCT8002H is available in 8-pin SOP8 package.
