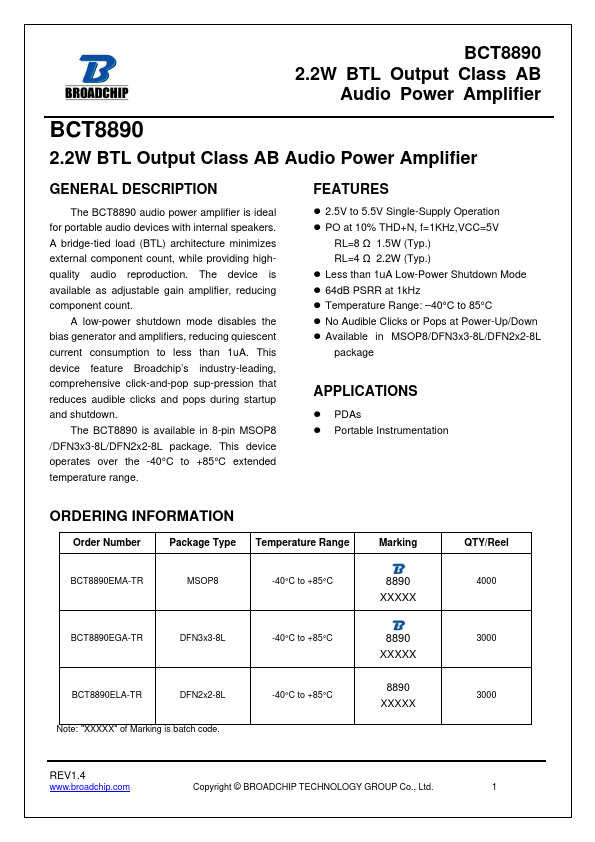

BCT8890 - 2.2W BTL Output Class AB Audio Power Amplifier

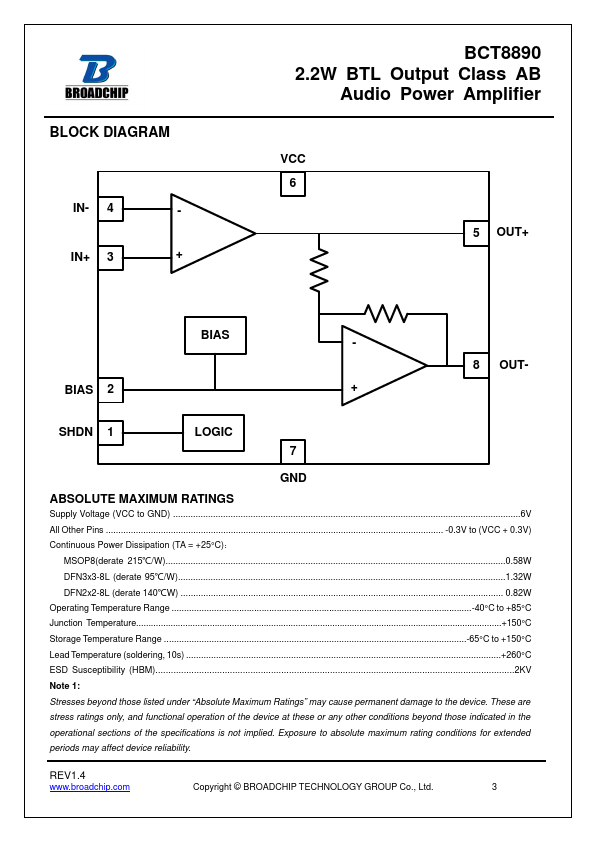

Description

The BCT8890 audio power amplifier is ideal for portable audio devices with internal speakers.

A bridge-tied load (BTL) architecture minimizes external component count, while providing highquality audio reproduction.

The device is available as adjustable gain amplifier, reducing component count.

Features

  • 2.5V to 5.5V Single-Supply Operation.
  • PO at 10% THD+N, f=1KHz,VCC=5V RL=8 Ω 1.5W (Typ. ) RL=4 Ω 2.2W (Typ. ).
  • Less than 1uA Low-Power Shutdown Mode.
  • 64dB PSRR at 1kHz.
  • Temperature Range:.
  • 40°C to 85°C.
  • No Audible Clicks or Pops at Power-Up/Down.

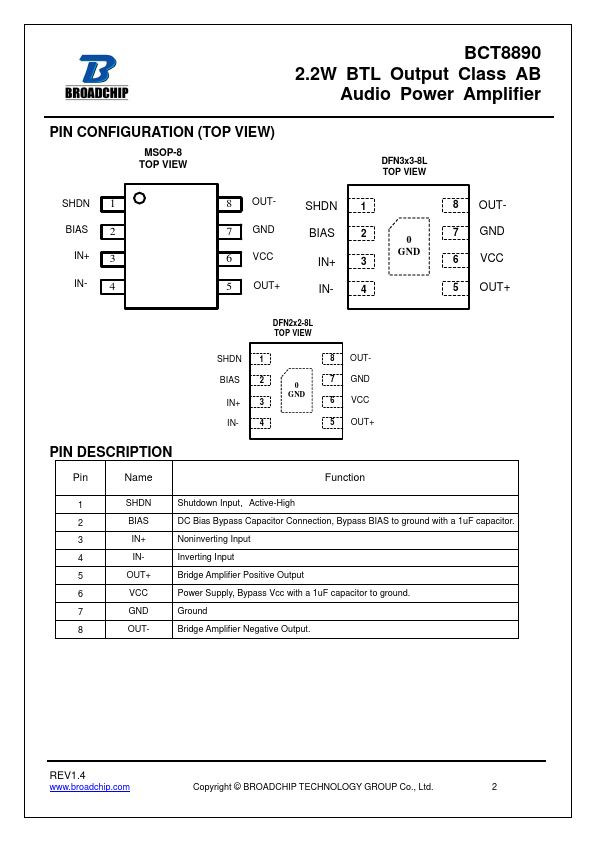

  • Available in MSOP8/DFN3x3-8L/DFN2x2-8L package.

📥 Download Datasheet

Datasheet Details

Part number BCT8890
Manufacturer BROADCHIP
File Size 335.22 KB
Description 2.2W BTL Output Class AB Audio Power Amplifier
Datasheet download datasheet BCT8890 Datasheet
