BU406 is NPN SILICON POWER TRANSISTORS manufactured by Bourns.

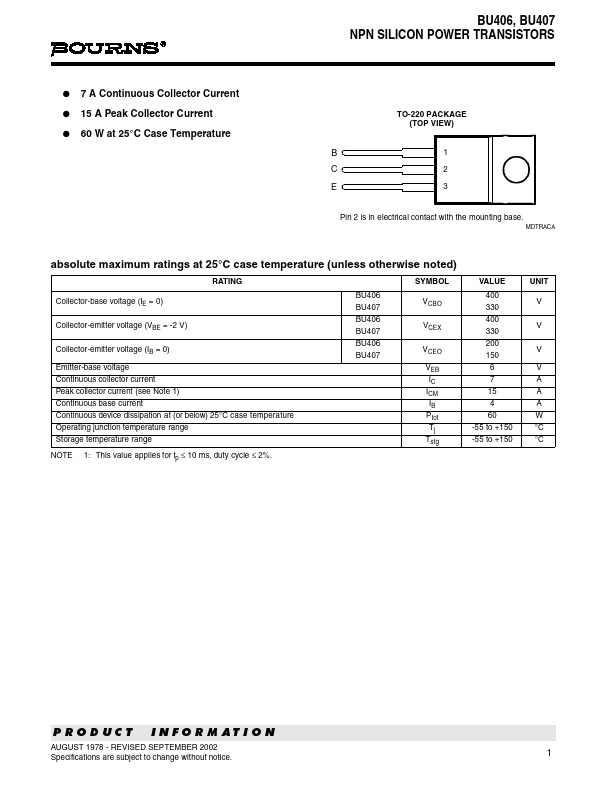

BU406, BU407 NPN SILICON POWER TRANSISTORS
- 7 A Continuous Collector Current
- 15 A Peak Collector Current
- 60 W at 25°C Case Temperature
TO-220 PACKAGE (TOP VIEW)
Pin 2 is in electrical contact with the mounting base.
MDTRACA absolute maximum ratings at 25°C case temperature (unless otherwise noted)
RATING
Collector-base voltage (IE = 0)
Collector-emitter voltage (VBE = -2 V)
Collector-emitter voltage (IB = 0) Emitter-base voltage Continuous collector current Peak collector current (see Note 1) Continuous base current Continuous device dissipation at (or below) 25°C case temperature Operating junction temperature range Storage temperature range NOTE 1: This value applies for tp ≤ 10 ms, duty cycle ≤ 2%.
BU406 BU407 BU406 BU407 BU406 BU407
SYMBOL
VCBO
VCEX
VCEO
VEB IC ICM IB Ptot Tj Tstg
VALUE
400 330 400 330 200 150
6 7 15 4 60 -55 to +150 -55 to +150
UNIT
V A A A W °C °C
PRODUCT INFORMATION
AUGUST 1978
- REVISED SEPTEMBER 2002 Specifications are subject to change without notice.

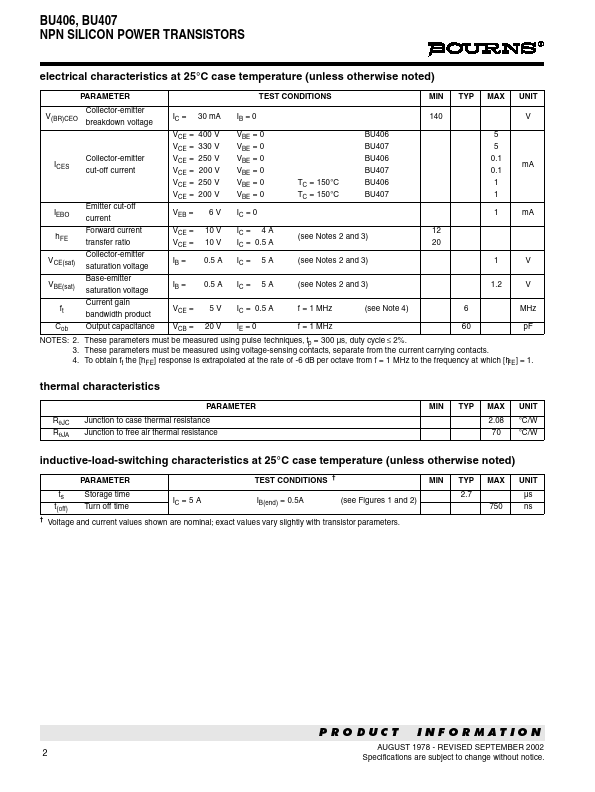

BU406, BU407 NPN SILICON POWER TRANSISTORS electrical characteristics at 25°C case temperature (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN TYP MAX UNIT
Collector-emitter V(BR)CEO breakdown voltage
IC = 30 m A IB = 0
Collector-emitter ICES cut-off current
IEBO
Emitter cut-off...
