5082-7650 - Seven-Segment Displays

Download the 5082-7650 datasheet PDF. This datasheet also covers the 5082-7610 variant, as both devices belong to the same seven-segment displays family and are provided as variant models within a single manufacturer datasheet.

Description

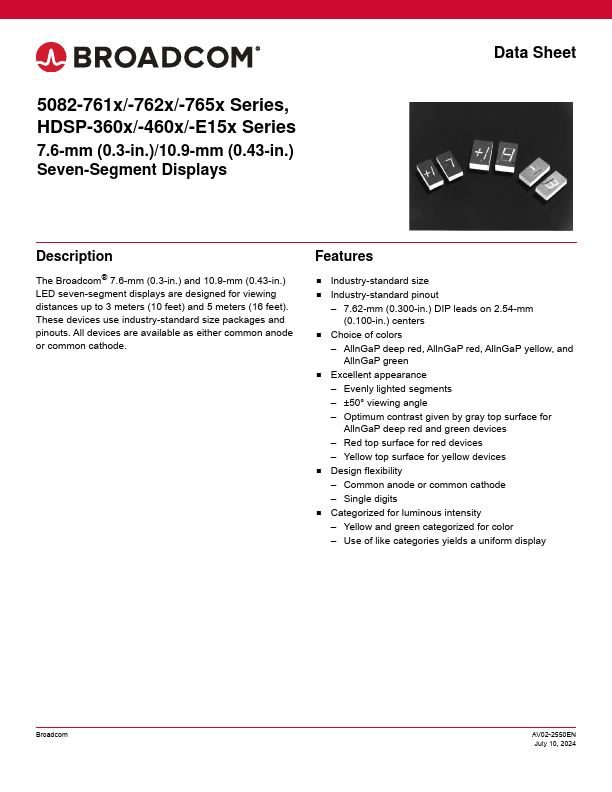

The Broadcom® 7.6-mm (0.3-in.) and 10.9-mm (0.43-in.) LED seven-segment displays are designed for viewing distances up to 3 meters (10 feet) and 5 meters (16 feet).

These devices use industry-standard size packages and pinouts.

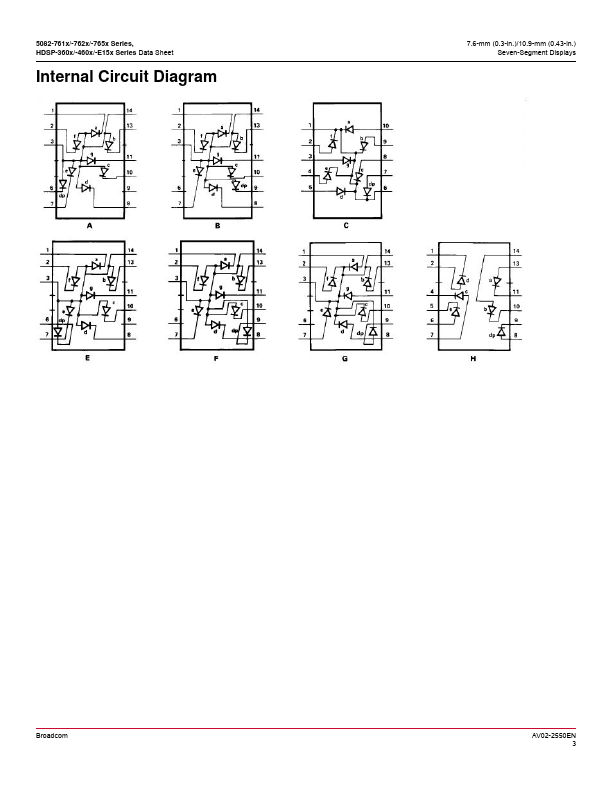

All devices are available as either common anode or common cathode.

Features

  • Industry-standard size.
  • Industry-standard pinout.

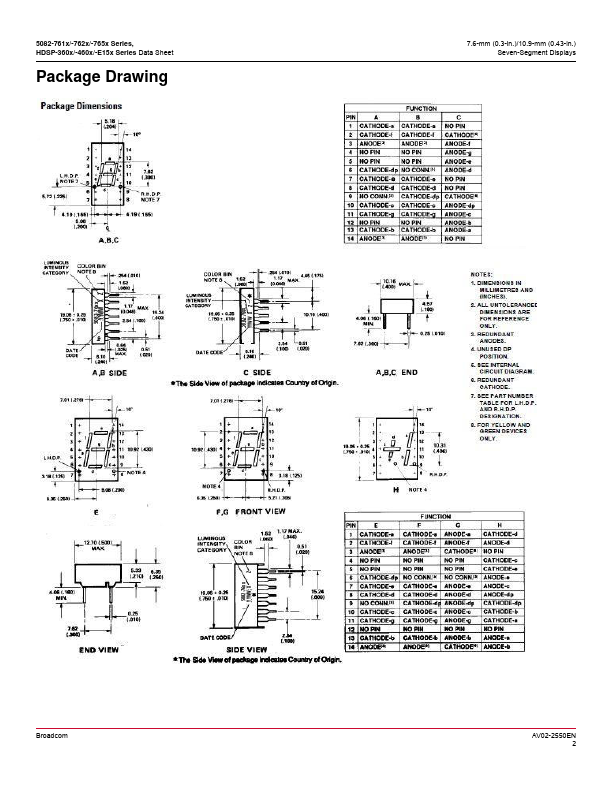

  • 7.62-mm (0.300-in. ) DIP leads on 2.54-mm (0.100-in. ) centers.
  • Choice of colors.
  • AllnGaP deep red, AllnGaP red, AllnGaP yellow, and AllnGaP green.
  • Excellent appearance.
  • Evenly lighted segments.
  • ±50° viewing angle.
  • Optimum contrast given by gray top surface for AllnGaP deep red and green devices.
  • Red top surface for red devices.
  • Yellow top surface for yellow devices.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5082-7610-Broadcom.pdf) that lists specifications for multiple related part numbers.
