5082-7653 - Seven-Segment Displays

Download the 5082-7653 datasheet PDF. This datasheet also covers the 5082-7610 variant, as both devices belong to the same seven-segment displays family and are provided as variant models within a single manufacturer datasheet.

Description

The Broadcom® 7.6-mm (0.3-in.) and 10.9-mm (0.43-in.) LED seven-segment displays are designed for viewing distances up to 3 meters (10 feet) and 5 meters (16 feet).

These devices use industry-standard size packages and pinouts.

All devices are available as either common anode or common cathode.

Features

  • Industry-standard size.
  • Industry-standard pinout.
  • 7.62-mm (0.300-in. ) DIP leads on 2.54-mm (0.100-in. ) centers.
  • Choice of colors.
  • AllnGaP deep red, AllnGaP red, AllnGaP yellow, and AllnGaP green.
  • Excellent appearance.
  • Evenly lighted segments.
  • ±50° viewing angle.
  • Optimum contrast given by gray top surface for AllnGaP deep red and green devices.
  • Red top surface for red devices.
  • Yellow top surface for yellow devices.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5082-7610-Broadcom.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
5082-7653 0.43-INCH SEVEN SEGMENT DISPLAYS QT Optoelectronics
5082-7653 0.43-INCH SEVEN SEGMENT DISPLAYS Fairchild Semiconductor
5082-7653 7-Segment Displays Agilent
5082-7650 0.43-INCH SEVEN SEGMENT DISPLAYS QT Optoelectronics
5082-7650 0.43-INCH SEVEN SEGMENT DISPLAYS Fairchild Semiconductor

Other Datasheets by Broadcom

Part Number Description
5082-7650 Seven-Segment Displays
5082-7651 Seven-Segment Displays
5082-7610 Seven-Segment Displays
5082-7611 Seven-Segment Displays
5082-7620 Seven-Segment Displays

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

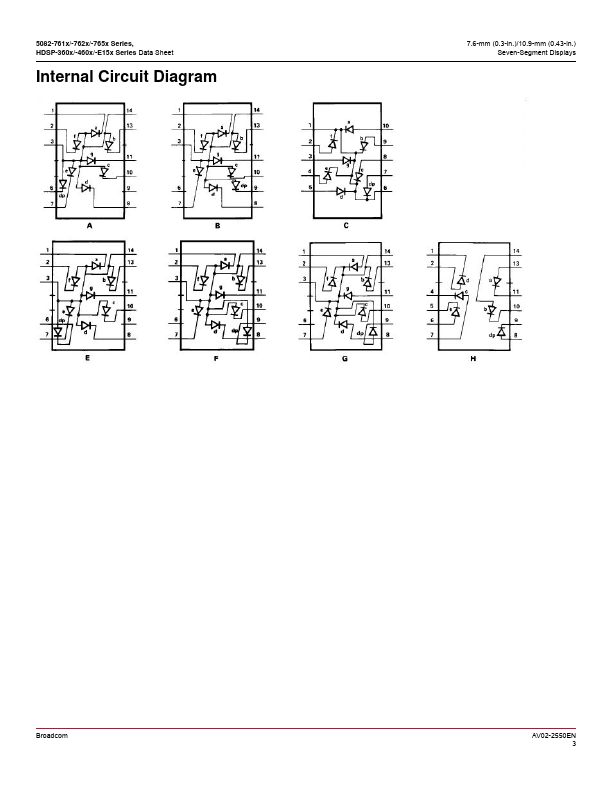

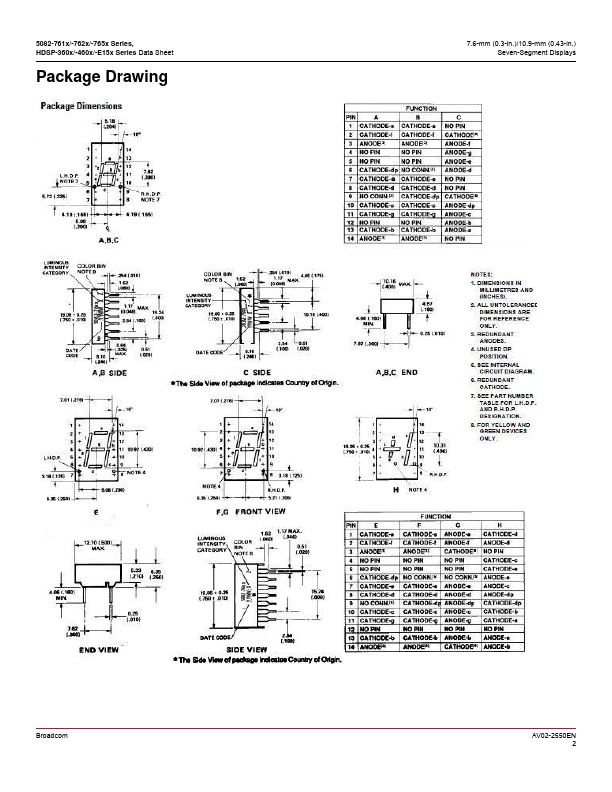

5082-761x/-762x/-765x Series, HDSP-360x/-460x/-E15x Series 7.6-mm (0.3-in.)/10.9-mm (0.43-in.) Seven-Segment Displays Data Sheet Description The Broadcom® 7.6-mm (0.3-in.) and 10.9-mm (0.43-in.) LED seven-segment displays are designed for viewing distances up to 3 meters (10 feet) and 5 meters (16 feet). These devices use industry-standard size packages and pinouts. All devices are available as either common anode or common cathode. Features  Industry-standard size  Industry-standard pinout – 7.62-mm (0.300-in.) DIP leads on 2.54-mm (0.100-in.
