ACFL-3161 - 10-Amp Peak Gate Drive Optocoupler

Datasheet Summary

Description

The Broadcom® ACFL-3161 driver is a 10A peak, rail-to-rail output gate drive optocoupler.

The ACFL-3161 comes in a compact, surface-mountable SO-12 package for space savings.

It provides an isolation voltage of 5 kVrms between input and output channels.

Features

  • fast propagation delay and tight dead time distortion, which make it ideal for driving SiC MOSFET and IGBTs at high frequency. Broadcom isolation products provide reinforced insulation and reliability that delivers safe signal isolation critical in automotive and high temperature industrial.

📥 Download Datasheet

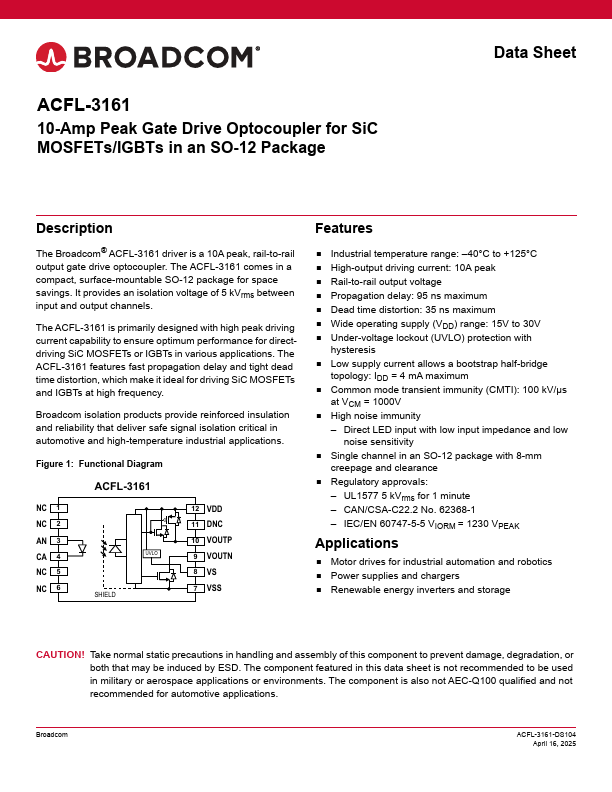

Datasheet preview – ACFL-3161

Datasheet Details

Part number ACFL-3161
Manufacturer Broadcom
File Size 405.60 KB
Description 10-Amp Peak Gate Drive Optocoupler
Datasheet download datasheet ACFL-3161 Datasheet

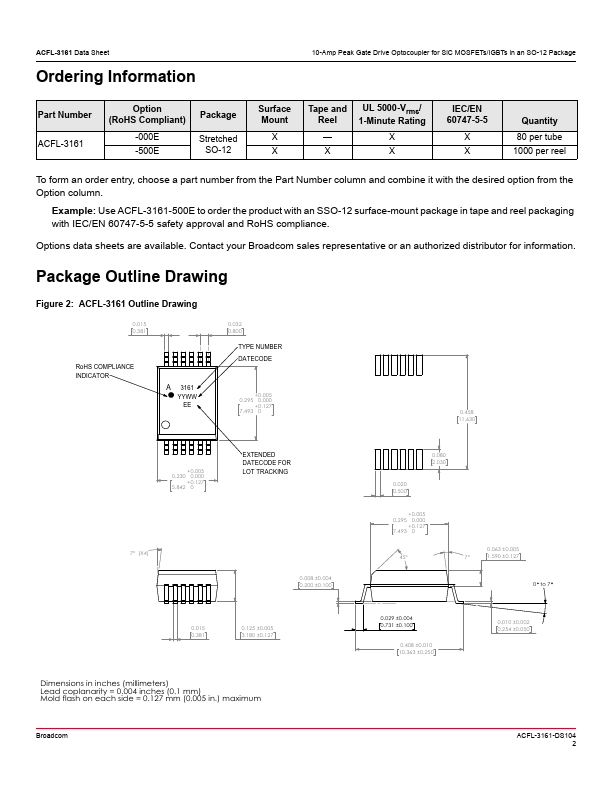

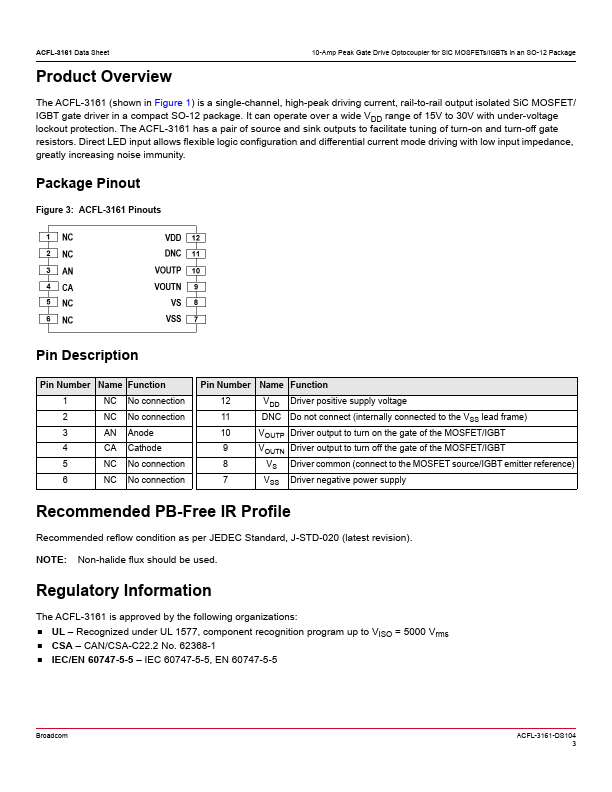

Additional preview pages of the ACFL-3161 datasheet.

📁 Similar Datasheet

  • ACFL-5211T - Wide Operating Temperature 1MBd Digital Optocoupler (AVAGO)
  • ACFL-5211U - Bi-directional Wide Operating Temperature 1MBd Digital Optocoupler (AVAGO)
  • ACFL-5212T - Wide Operating Temperature 20kBd Digital Optocoupler Configurable Phototransistor (AVAGO)
  • ACFL-6211T - Low Power Digital Optocoupler (Avago)
  • ACFL-6211U - Low Power Digital Optocoupler (Avago)
  • ACFL-6212T - Low Power Digital Optocoupler (Avago)
  • ACFL-6212U - Low Power Digital Optocoupler (Avago)
  • ACF2101 - SWITCHED INTEGRATOR (Burr-Brown Corporation)
  • ACF321825 - (ACF321825 / ACF451832) 3-Terminal Filters (TDK)
  • ACF451832 - 3-Terminal Filters for Signal Line and DC Power Line SMD (TDK)
Other Datasheets by Broadcom

Full PDF Text Transcription

Click to expand full text
ACFL-3161 10-Amp Peak Gate Drive Optocoupler for SiC MOSFET/IGBT in an SO-12 Package Data Sheet Description The Broadcom® ACFL-3161 driver is a 10A peak, rail-to-rail output gate drive optocoupler. The ACFL-3161 comes in a compact, surface-mountable SO-12 package for space savings. It provides an isolation voltage of 5 kVrms between input and output channels. The ACFL-3161 is primarily designed with high peak driving current capability to ensure optimum performance for direct driving SiC MOSFET or IGBT in various applications. The ACFL-3161 features fast propagation delay and tight dead time distortion, which make it ideal for driving SiC MOSFET and IGBTs at high frequency.
