AEDR-9930E2 - Three-Channel Reflective Incremental Rotary Encoder

Product Overview

Broadcom

Part number	AEDR-9930E2
Manufacturer	Broadcom
File Size	1.70 MB
Description	Three-Channel Reflective Incremental Rotary Encoder
Datasheet	AEDR-9930E2 Datasheet

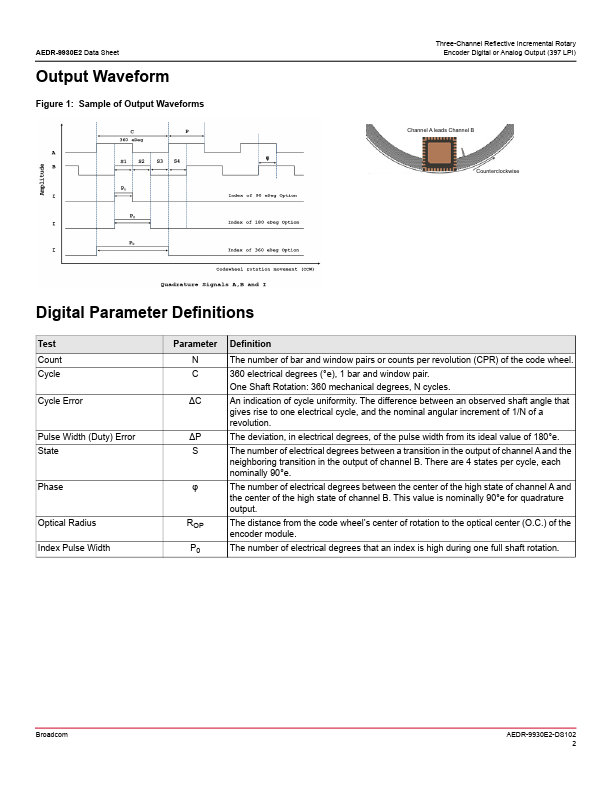

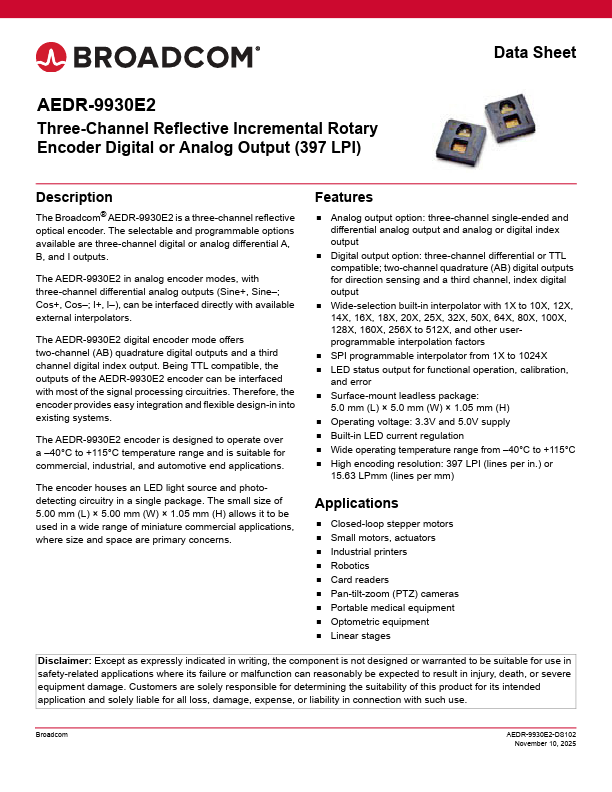

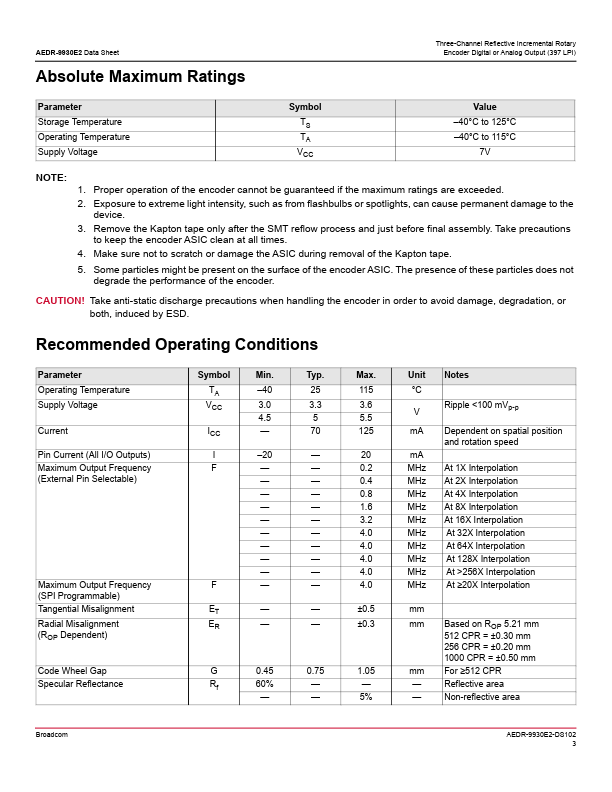

Additional preview pages of the AEDR-9930E2 datasheet.

The Broadcom® AEDR-9930E2 is a three-channel reflective optical encoder.

The selectable and programmable options available are three-channel digital or analog differential A, B, and I outputs.

Analog output option: three-channel single-ended and differential analog output and analog or digital index output.
Digital output option: three-channel differential or TTL compatible; two-channel quadrature (AB) digital outputs for direction sensing and a third channel, index digital output.
Wide-selection built-in interpolator with 1X to 10X, 12X, 14X, 16X, 18X, 20X, 25X, 32X, 50X, 64X, 80X, 100X, 128X, 160X, 256X to 512X, and other userprogrammable interpolation factors.
