AEDR-9930E2L - Three-Channel Reflective Incremental Linear Encoder

General Description

The Broadcom® AEDR-9930E2L is a three-channel reflective optical encoder.

The selectable and programmable options available are three-channel digital or analog differential A, B, and I outputs.

Key Features

  • Analog output option: three-channel single-ended and differential analog output and analog or digital index output.
  • Digital output option: three-channel differential or TTL compatible; two-channel quadrature (AB) digital outputs for direction sensing and a third channel, index digital output.
  • Wide-selection built-in interpolator with 1X to 10X, 12X, 14X, 16X, 18X, 20X, 25X, 32X, 50X, 64X, 80X, 100X, 128X, 160X, 256X to 512X, and other userprogrammable interpolation factors.

📥 Download Datasheet

Datasheet Details

Part number AEDR-9930E2L
Manufacturer Broadcom
File Size 1.61 MB
Description Three-Channel Reflective Incremental Linear Encoder
Datasheet download datasheet AEDR-9930E2L Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AEDR-8300 Agilent AEDR-8300 Series Encoders Reflective Surface Mount Optical Encoder Hewlett-Packard
AEDR-8400 Reflective Surface Mount Optical Encoder AVAGO TECHNOLOGIES
AED13B50-L DC-DC / Intermediate Bus Converter Emerson
AED13B50N-L DC-DC / Intermediate Bus Converter Emerson
AED17Q50 DC-DC / Intermediate Bus Converter Emerson

Other Datasheets by Broadcom

Part Number Description
AEDR-9930E2 Three-Channel Reflective Incremental Rotary Encoder
AEDR-8710 3-Channel High Resolution Reflective Incremental Encoder
AEDR-8711 3-Channel High Resolution Reflective Incremental Encoder
AEDR-8712 3-Channel High Resolution Reflective Incremental Encoder
AEDR-8713 3-Channel High Resolution Reflective Incremental Encoder

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

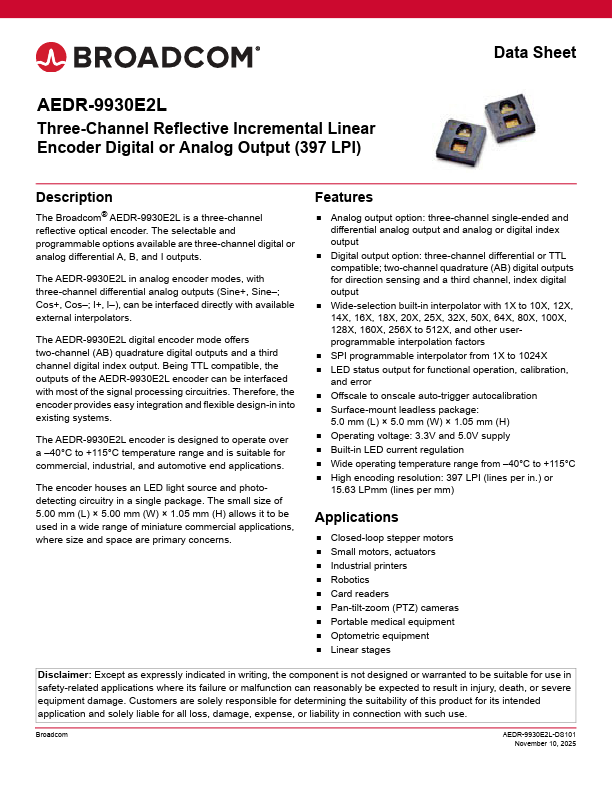

Data Sheet AEDR-9930E2L Three-Channel Reflective Incremental Linear Encoder Digital or Analog Output (397 LPI) Description The Broadcom® AEDR-9930E2L is a three-channel reflective optical encoder. The selectable and programmable options available are three-channel digital or analog differential A, B, and I outputs. The AEDR-9930E2L in analog encoder modes, with three-channel differential analog outputs (Sine+, Sine–; Cos+, Cos–; I+, I–), can be interfaced directly with available external interpolators. The AEDR-9930E2L digital encoder mode offers two-channel (AB) quadrature digital outputs and a third channel digital index output. Being TTL compatible, the outputs of the AEDR-9930E2L encoder can be interfaced with most of the signal processing circuitries.
