AFBR-2418Z
Overview

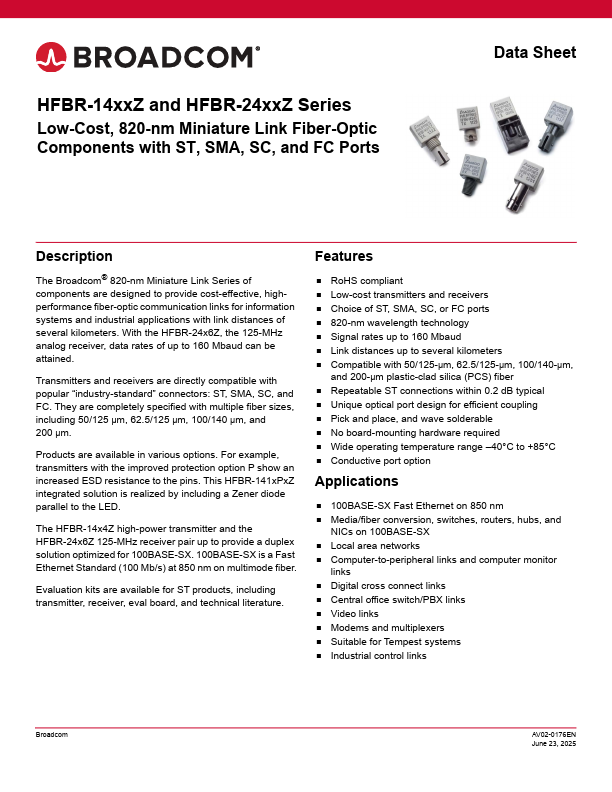

The Broadcom® 820-nm Miniature Link Series of components are designed to provide cost-effective, highperformance fiber-optic communication links for information systems and industrial applications with link distances of several kilometers. With the HFBR-24x6Z, the 125-MHz analog receiver, data rates of up to 160 Mbaud can be attained.
- RoHS compliant
- Low-cost transmitters and receivers
- Choice of ST, SMA, SC, or FC ports
- 820-nm wavelength technology
- Signal rates up to 160 Mbaud
- Link distances up to several kilometers
- Compatible with 50/125-μm, 62.5/125-μm, 100/140-μm, and 200-μm plastic-clad silica (PCS) fiber
- Repeatable ST connections within 0.2 dB typical
- Unique optical port design for efficient coupling
- Pick and place, and wave solderable
