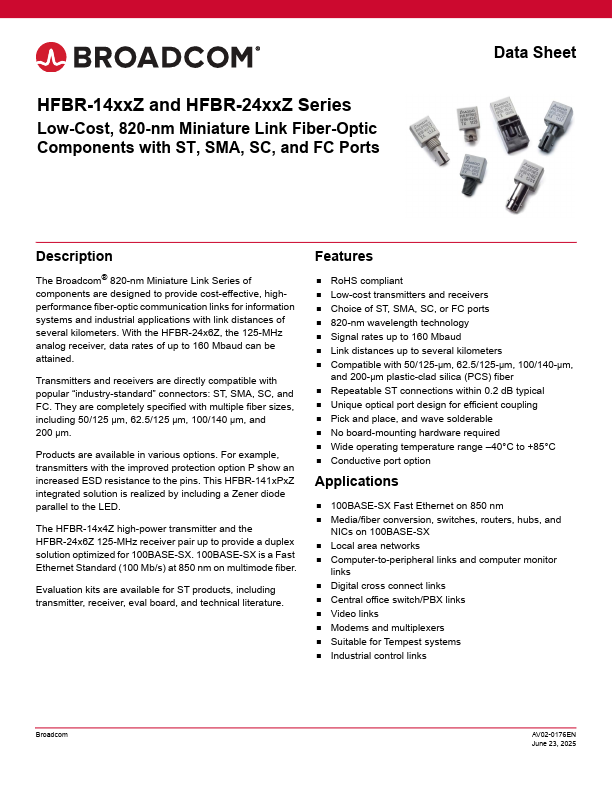

HFBR-14xxZ and HFBR-24xxZ Series Low-Cost, 820-nm Miniature Link Fiber-Optic ponents with ST, SMA, SC, and FC Ports Data Sheet Description The Broad® 820-nm Miniature Link Series of ponents are designed to provide cost-effective, highperformance fiber-optic munication links for information systems and industrial applications with link distances of several kilometers. With the HFBR-24x6Z, the 125-MHz analog receiver, data rates of up to 160 Mbaud can be attained. Transmitters and receivers are directly patible with popular “industry-standard” connectors: ST, SMA, SC, and FC. They are pletely specified with multiple fiber sizes, including 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm. Products are available in various options. For example, transmitters with the improved protection option P show an increased ESD resistance to the pins. This HFBR-141xPxZ integrated solution is realized by including a Zener diode parallel to the LED. The HFBR-14x4Z high-power transmitter and the HFBR-24x6Z 125-MHz receiver pair up to provide a duplex solution optimized for 100BASE-SX. 100BASE-SX is a Fast Ethernet Standard (100 Mb/s) at 850 nm on multimode fiber. Evaluation kits are available for ST products, including transmitter, receiver, eval board, and technical literature. Features - RoHS pliant - Low-cost transmitters and receivers - Choice of ST, SMA, SC, or FC ports - 820-nm wavelength technology - Signal rates up to 160 Mbaud - Link distances up to several kilometers - patible with 50/125-μm, 62.5/125-μm, 100/140-μm, and 200-μm plastic-clad silica (PCS) fiber - Repeatable ST connections within 0.2 dB typical - Unique optical port design for efficient coupling - Pick and place, and wave solderable - No board-mounting hardware required - Wide operating...
