Datasheet Details

Part number	HDSP-333A
Manufacturer	Broadcom
File Size	774.07 KB
Description	General-Purpose Seven-Segment Display
Datasheet	HDSP-333A Datasheet
Note	This datasheet PDF includes multiple part numbers: HDSP-333A, HDSP-332E. Please refer to the document for exact specifications by model.

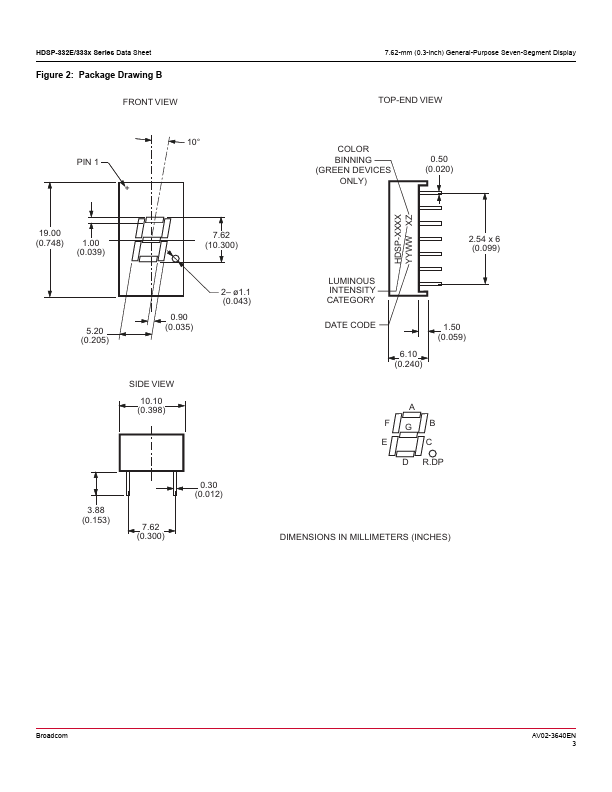

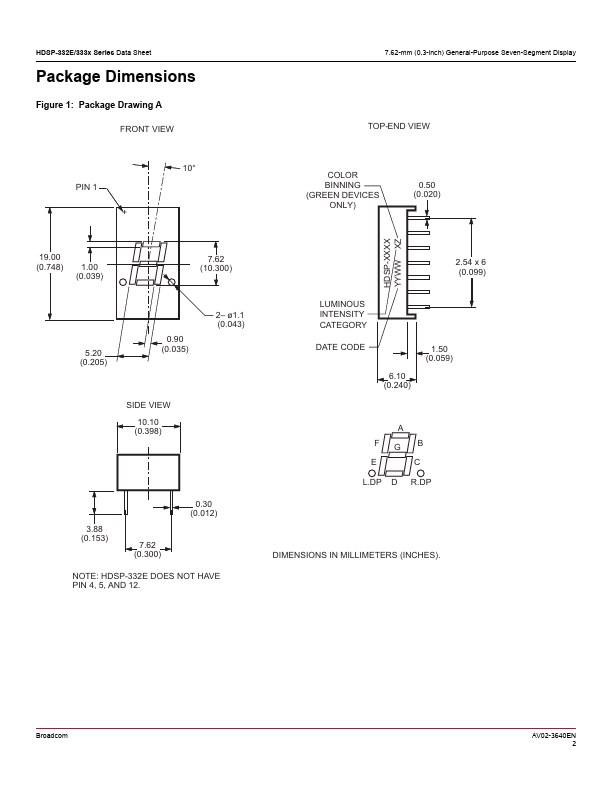

Additional preview pages of the HDSP-333A datasheet.

Product details

Description

The Broadcom® HDSP-332E/333x Series 7.62-mm (0.3-inch) LED seven-segment display uses an industrystandard size package and pinout.

The device is available in either common anode or common cathode.

The choice of colors includes red, green, and deep red.

Features

Industry-standard size.
Industry-standard pinout.
7.62-mm (0.3-inch) character height.
DIP lead on 2.54 mm.
Choice of colors.
Red, green, deep red.
Excellent appearance.
Optimum contrast achieved on gray surface upon light-up.
±50° viewing angle.
Design flexibility.
Common anode or common cathode.
Single digit.
Left-hand and right-hand decimal point.
Categorized for luminous intensity.
