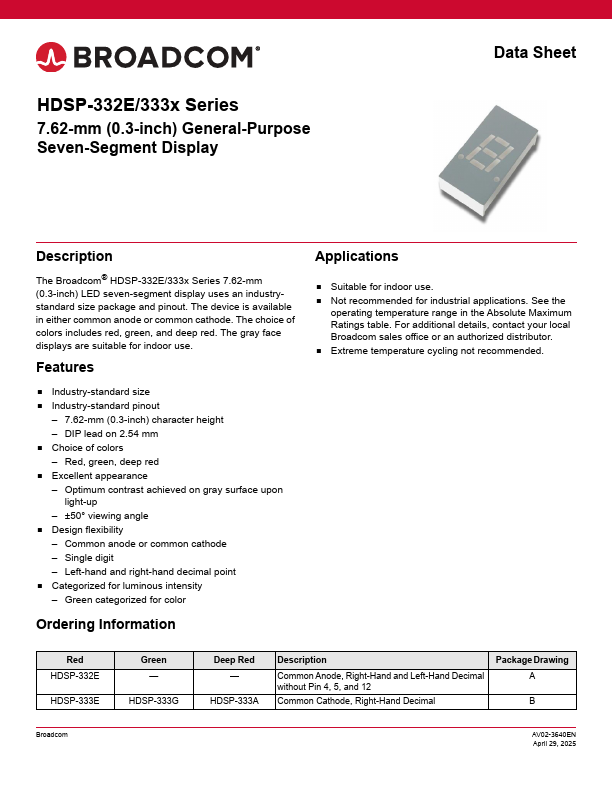

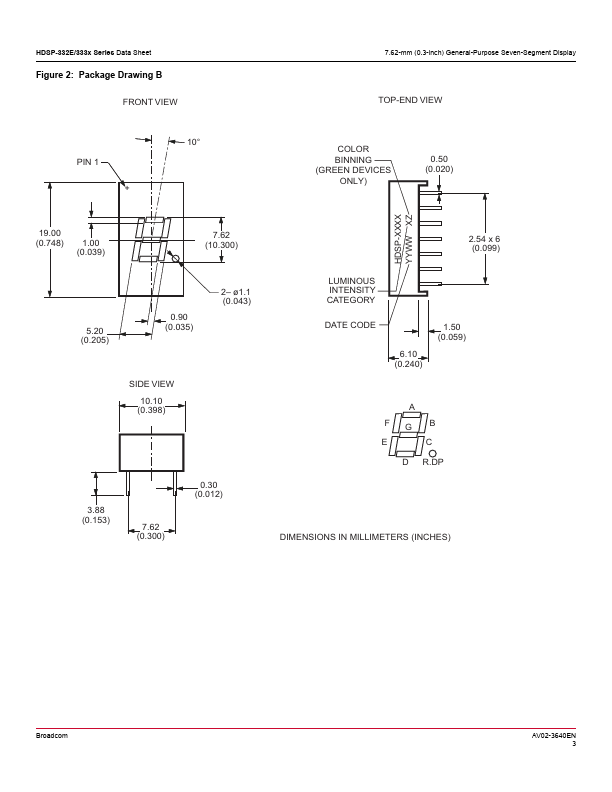

Description The Broad® HDSP-332E/333x Series 7.62-mm (0.3-inch) LED seven-segment display uses an industrystandard size package and pinout. The device is available in either mon anode or mon cathode. The choice of colors includes red, green, and deep red. The gray face displays are suitable for indoor use. Features - Industry-standard size - Industry-standard pinout - 7.62-mm (0.3-inch) character height - DIP lead on 2.54 mm - Choice of colors - Red, green, deep red - Excellent appearance - Optimum contrast achieved on gray surface upon light-up - ±50° viewing angle - Design flexibility - mon anode or mon cathode - Single digit - Left-hand and right-hand decimal point - Categorized for luminous intensity - Green categorized for color Ordering Information Applications - Suitable for indoor use. - Not remended for industrial applications. See the operating temperature range in the Absolute Maximum Ratings table. For additional details, contact your local Broad sales office or an authorized distributor. - Extreme temperature cycling not remended. Red HDSP-332E Green - HDSP-333G Deep Red - HDSP-333A Description mon Anode, Right-Hand and Left-Hand Decimal without Pin 4, 5, and 12 mon Cathode, Right-Hand Decimal Package Drawing A Broad AV02-3640EN April 29, 2025 HDSP-332E/333x Series Data Sheet Package Dimensions Figure 1: Package Drawing A FRONT VIEW 10° PIN 1 + 7.62-mm (0.3-inch) General-Purpose Seven-Segment Display TOP-END...
