1N4148W Datasheet | Bruckewell Technology

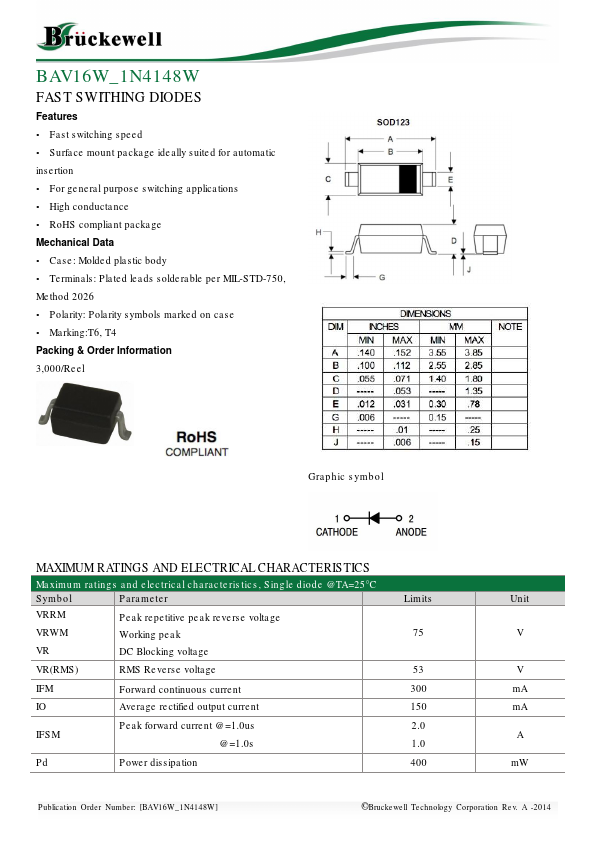

BAV16W_1N4148W FAST SWITHING DIODES Features - Fast switching speed - Surface mount package ideally suited for automatic insertion - For general purpose switching applications - High conductance - Ro HS pliant package Mechanical Data - Case: Molded plastic body - Terminals: Plated leads solderable per MIL-STD-750, Method 2026 - Polarity: Polarity symbols marked on case - Marking:T6, T4 Packing & Order Information 3,000/Reel Graphic symbol MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Maximum ratings and electrical characteristics, Single diode @TA=25°C Symbol Parameter Limits Unit VRRM Peak repetitive peak reverse voltage VRWM Working peak DC Blocking voltage VR(RMS) RMS Reverse voltage Forward continuous current 300 m A Average rectified output current 150 m...
