PCM1606 - 24-Bit 6-Channel DIGITAL-TO-ANALOG CONVERTER

Description

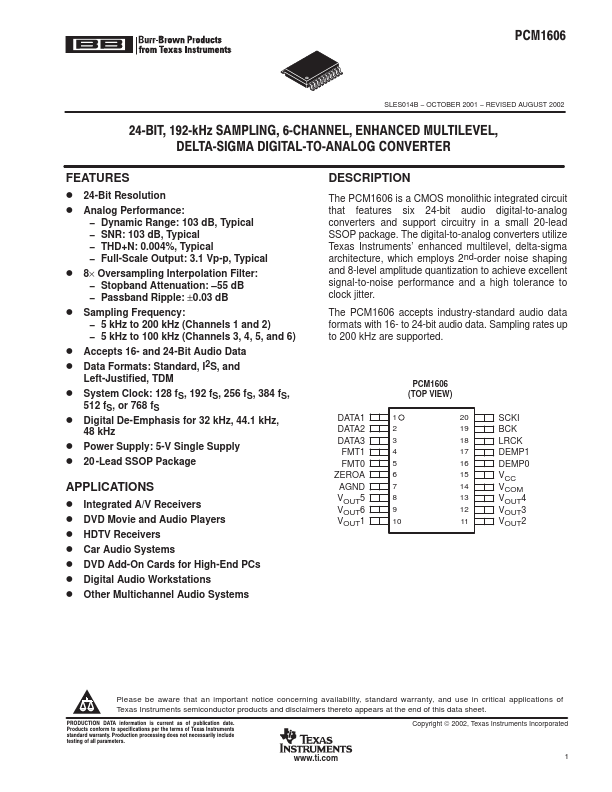

The PCM1606 is a CMOS monolithic integrated circuit that

Features

  • D 24-Bit Resolution D Analog Performance:.
  • Dynamic Range: 103 dB, Typical.
  • SNR: 103 dB, Typical.
  • THD+N: 0.004%, Typical.
  • Full-Scale Output: 3.1 Vp-p, Typical D 8× Oversampling Interpolation Filter:.
  • Stopband Attenuation:.
  • 55 dB.
  • Passband Ripple: ±0.03 dB D Sampling Frequency:.
  • 5 kHz to 200 kHz (Channels 1 and 2).
  • 5 kHz to 100 kHz (Channels 3, 4, 5, and 6) D Accepts 16- and 24-Bit Audio Data D Data Formats: Standard,.

📥 Download Datasheet

Datasheet preview – PCM1606

📁 Similar Datasheet

  • PCM1602A - Delta-Sigma Digital-to-Analog Converter (Texas Instruments)
  • PCM1680 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1681 - Eight-Channel Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1681-Q1 - Eight-Channel Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1690 - Eight-Channel Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1690-Q1 - Eight-Channel Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM16C00 - Configurable Multiple Function PCMCIA Interface Chip (National Semiconductor)
  • PCM16C010 - Configurable PC Card Interface Chip (National Semiconductor)
  • PCM13001SR - Power Transformers (GROUP-TEK)
  • PCM14004SR - Power Transformers (GROUP-TEK)
Other Datasheets by Burr-Brown
  • PCM1600 - 24-Bit 6-Channel DIGITAL-TO-ANALOG CONVERTER
  • PCM1601 - 24-Bit 6-Channel DIGITAL-TO-ANALOG CONVERTER
  • PCM1602 - Delta-Sigma Digital-to-Analog Converter
  • PCM1604 - 24-Bit 6-Channel DIGITAL-TO-ANALOG CONVERTER
  • PCM1605 - 24-Bit 6-Channel DIGITAL-TO-ANALOG CONVERTER
  • PCM1608 - Delta-Sigma Digital-to-Analog Converter
  • PCM1609A - 24-BIT 8-CHANNEL DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter

Full PDF Text Transcription

Click to expand full text

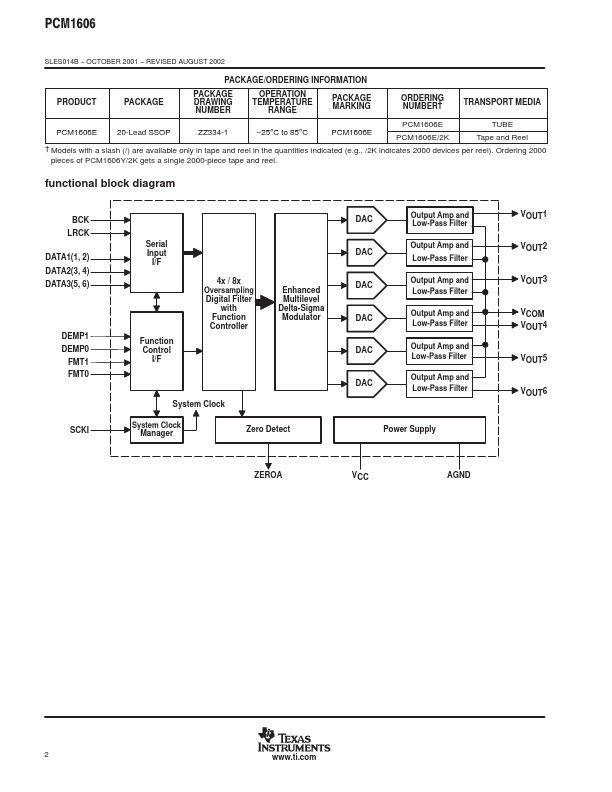

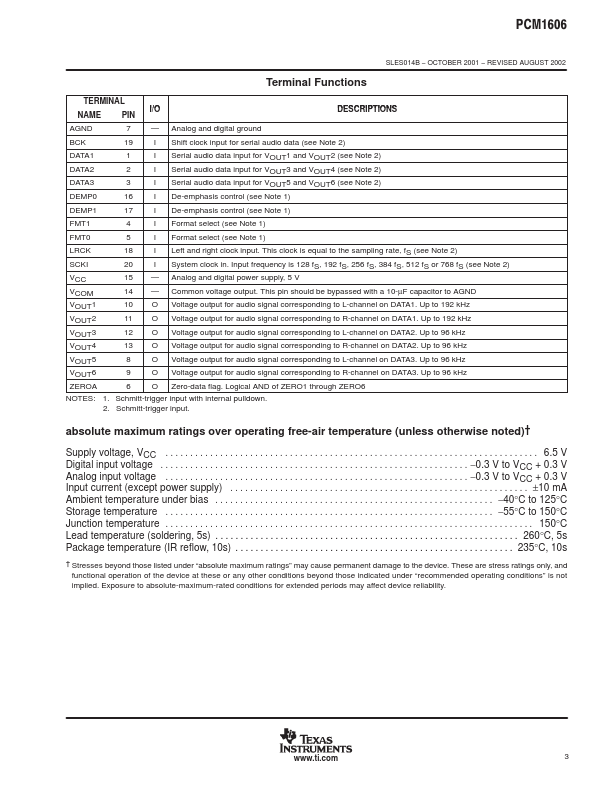

PCM1606 SLES014B − OCTOBER 2001 − REVISED AUGUST 2002 24ĆBIT, 192ĆkHz SAMPLING, 6ĆCHANNEL, ENHANCED MULTILEVEL, DELTAĆSIGMA DIGITALĆTOĆANALOG CONVERTER FEATURES D 24-Bit Resolution D Analog Performance: − Dynamic Range: 103 dB, Typical − SNR: 103 dB, Typical − THD+N: 0.004%, Typical − Full-Scale Output: 3.1 Vp-p, Typical D 8× Oversampling Interpolation Filter: − Stopband Attenuation: –55 dB − Passband Ripple: ±0.03 dB D Sampling Frequency: − 5 kHz to 200 kHz (Channels 1 and 2) − 5 kHz to 100 kHz (Channels 3, 4, 5, and 6) D Accepts 16- and 24-Bit Audio Data D Data Formats: Standard, I2S, and Left-Justified, TDM D System Clock: 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, or 768 fS D Digital De-Emphasis for 32 kHz, 44.
