PCM1609A Datasheet 24-BIT 8-CHANNEL DIGITAL-TO-ANALOG CONVERTER

Manufacturer: Burr-Brown (Texas Instruments)

PCM1609A 24-bit 8-channel digital-to-analog converter by Burr-Brown (Texas Instruments) - Datasheet Preview

Datasheet Details

Part number	PCM1609A
Manufacturer	Burr-Brown (Texas Instruments)
File Size	566.64 KB
Description	24-BIT 8-CHANNEL DIGITAL-TO-ANALOG CONVERTER
Datasheet	PCM1609A Datasheet

General Description

The PCM1609A is a CMOS, monolithic integrated circuit that

Overview

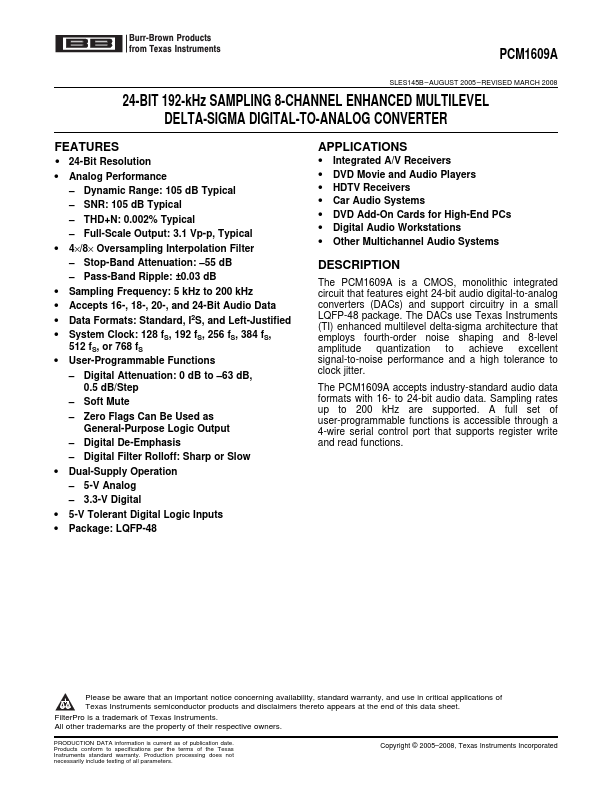

BurrĆBrown Products from Texas Instruments PCM1609A SLES145B – AUGUST 2005 – REVISED MARCH 2008 24-BIT 192-kHz SAMPLING 8-CHANNEL ENHANCED MULTILEVEL DELTA-SIGMA DIGITAL-TO-ANALOG.

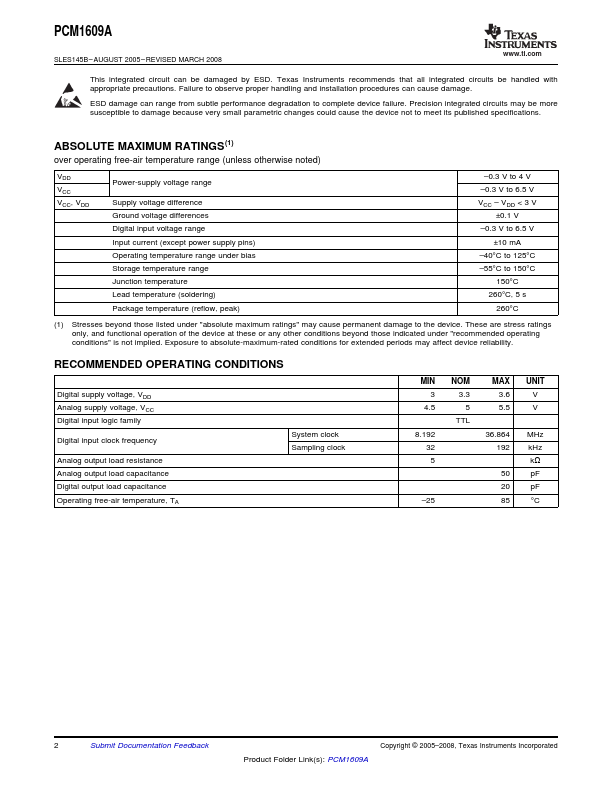

Key Features

1.
23 24-Bit Resolution.

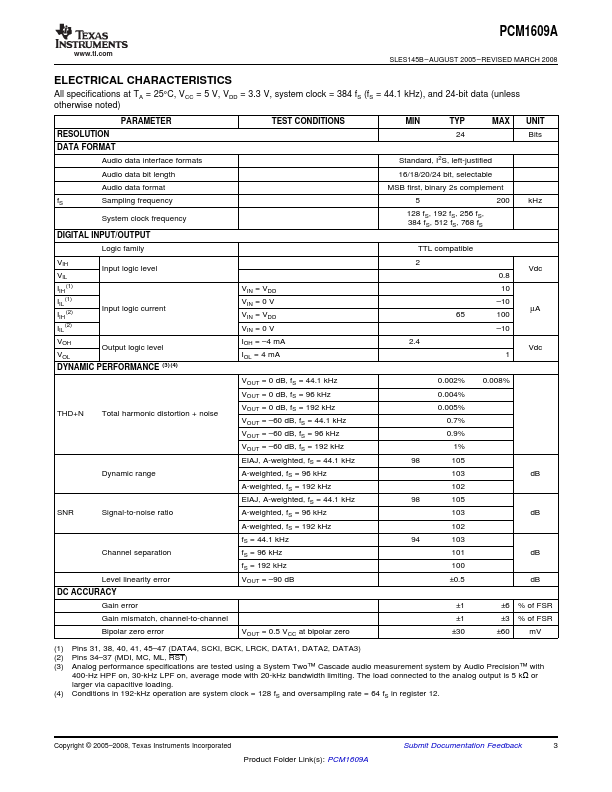

Analog Performance.
Dynamic Range: 105 dB Typical.
SNR: 105 dB Typical.
THD+N: 0.002% Typical.
Full-Scale Output: 3.1 Vp-p, Typical.
4×/8× Oversampling Interpolation Filter.
Stop-Band Attenuation:.
55 dB.
Pass-Band Ripple: ±0.03 dB.
Sampling Frequency: 5 kHz to 200 kHz.
Accepts 16-, 18-, 20-, and 24-Bit Audio Data.
Data Formats: Standard, I2S, and Left-Justi.
