REG103 - 500mA Low-Dropout Regulator

General Description

The REG103 is a family of low-noise, low-dropout, linear regulators with low ground pin current.

Its new DMOS topology provides significant improvement over previous designs, including low-dropout voltage (only 115mV typ at full load), and better transient performance.

Key Features

  • q NEW DMOS.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
REG005016A OLED Graphic 50x16 dots Display Raystar
REG007616A OLED Graphic 76x16 dots Display Raystar
REG010008A OLED Graphic 100x8 dots Display Raystar
REG010016A OLED Graphic 100x16 dots Display Raystar
REG010016B OLED Graphic 100x16 dots Display Raystar

Other Datasheets by Burr-Brown (Texas Instruments)

Part Number Description
REG101 DMOS 100mA Low-Dropout Regulator
REG102 DMOS 250mA Low-Dropout Regulator
REG104 DMOS 1A Low-Dropout Regulator
REG1117 800mA and 1A Low Dropout Positive Regulator
REG1117A 800mA and 1A Low Dropout Positive Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

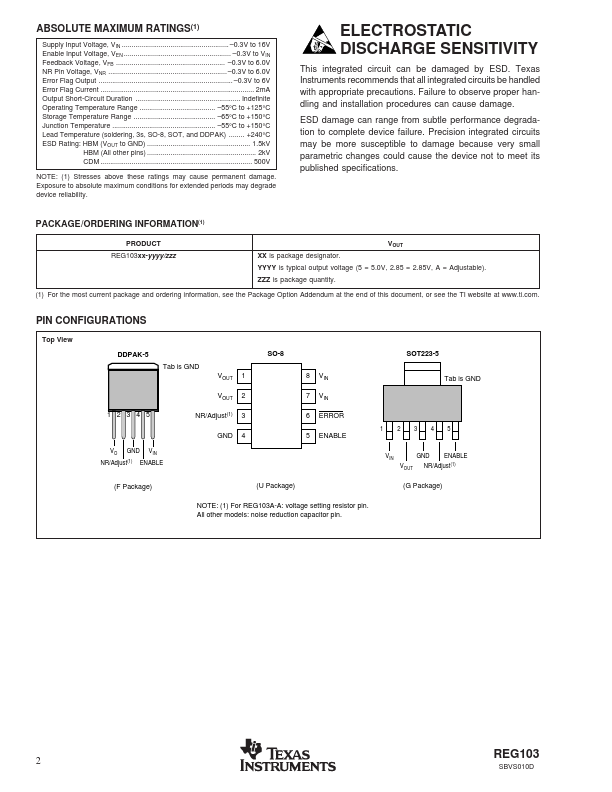

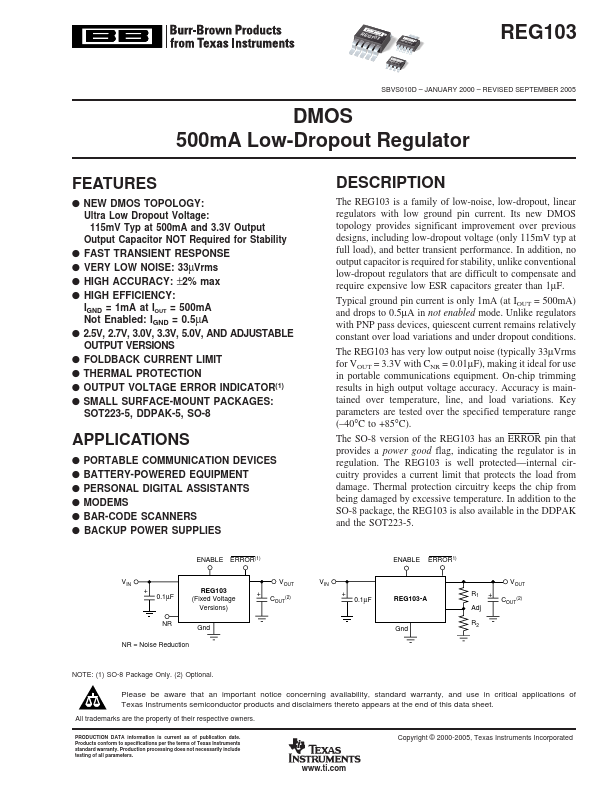

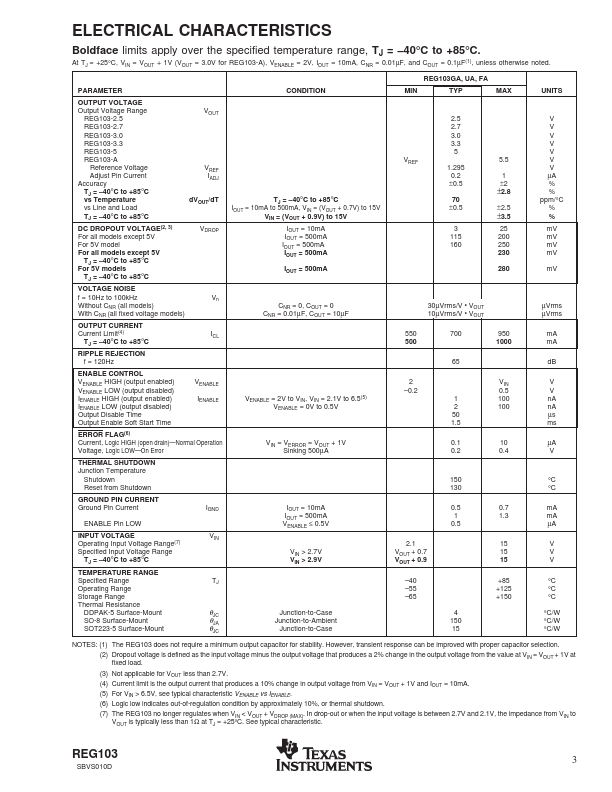

REG103 REG103 REG103 REG103 SBVS010D – JANUARY 2000 – REVISED SEPTEMBER 2005 DMOS 500mA Low-Dropout Regulator FEATURES q NEW DMOS TOPOLOGY: Ultra Low Dropout Voltage: 115mV Typ at 500mA and 3.3V Output Output Capacitor NOT Required for Stability q FAST TRANSIENT RESPONSE q VERY LOW NOISE: 33µVrms q HIGH ACCURACY: ±2% max q HIGH EFFICIENCY: IGND = 1mA at IOUT = 500mA Not Enabled: IGND = 0.5µA q 2.5V, 2.7V, 3.0V, 3.3V, 5.0V, AND ADJUSTABLE OUTPUT VERSIONS q FOLDBACK CURRENT LIMIT q THERMAL PROTECTION q OUTPUT VOLTAGE ERROR INDICATOR(1) q SMALL SURFACE-MOUNT PACKAGES: SOT223-5, DDPAK-5, SO-8 APPLICATIONS q PORTABLE COMMUNICATION DEVICES q BATTERY-POWERED EQUIPMENT q PERSONAL DIGITAL ASSISTANTS q MODEMS q BAR-CODE SCANNERS q BACKUP POWER SUPPLIES ENABLE ERROR(1) VIN + 0.
