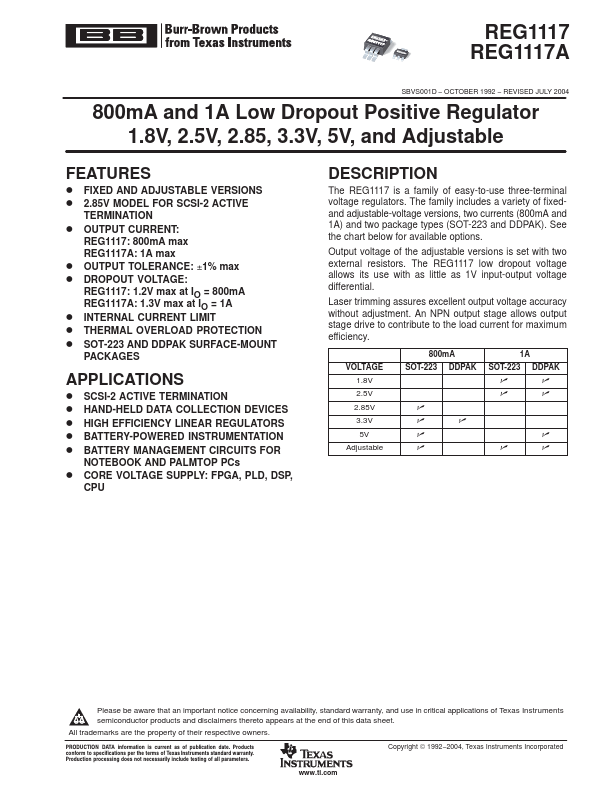

REG1117 datasheet by Burr-Brown (Texas Instruments).
| Part number | REG1117 |
|---|---|
| Datasheet | REG1117-BurrBrown.pdf |
| File Size | 414.24 KB |
| Manufacturer | Burr-Brown (Texas Instruments) |
| Description | 800mA and 1A Low Dropout Positive Regulator |
|
|

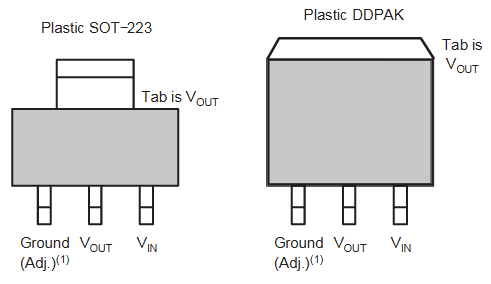

The REG1117 is a family of easy-to-use three-terminal voltage regulators. The family includes a variety of fixedand adjustable-voltage versions, two currents (800mA and 1A) and two package types (SOT-223 and DDPAK). See the chart below for available options.
