REG1118 - 800mA Low Dropout Positive Regulator

Product Overview

📥 Download Datasheet

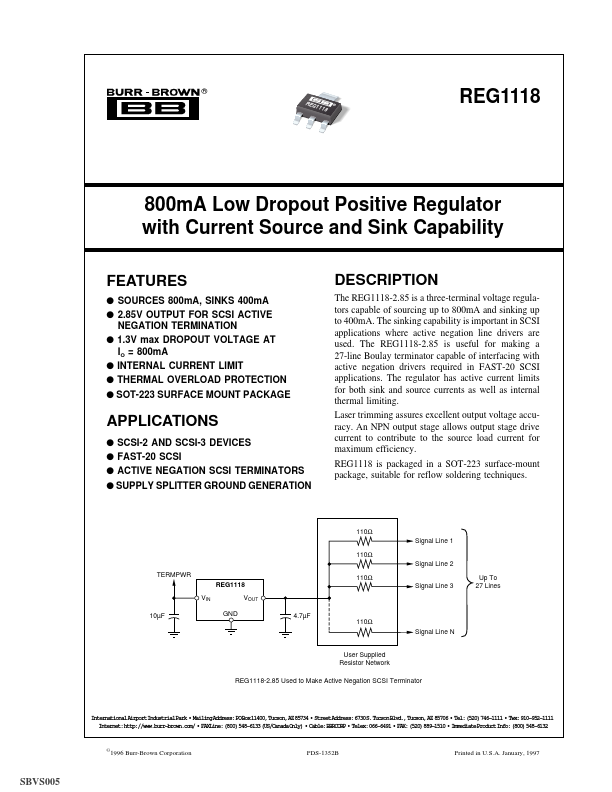

Datasheet preview – REG1118

Datasheet Details

Part number REG1118
Manufacturer Burr-Brown
File Size 213.01 KB
Description 800mA Low Dropout Positive Regulator
Datasheet download datasheet REG1118 Datasheet

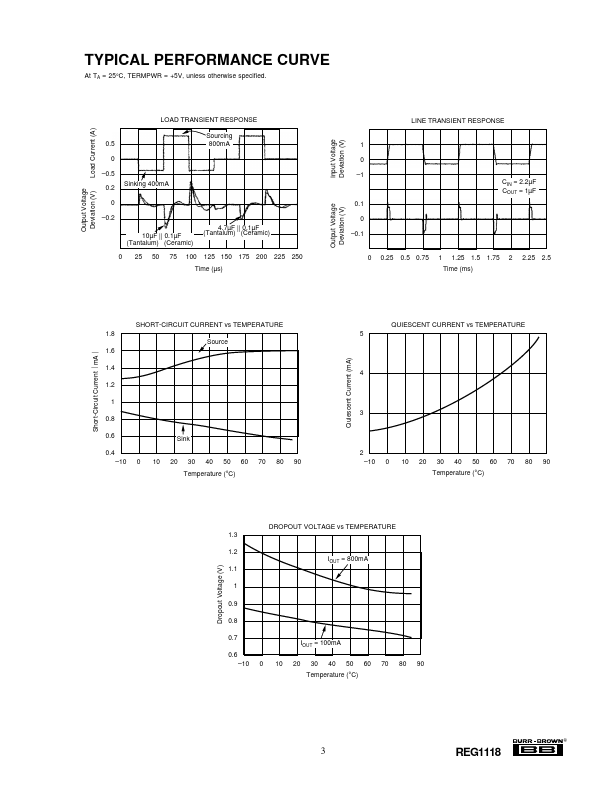

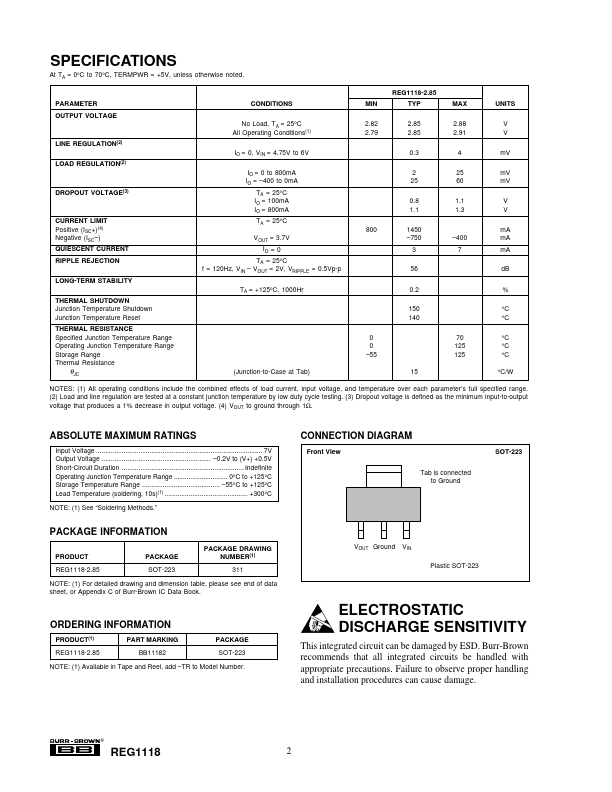

Additional preview pages of the REG1118 datasheet.

Product details

Description

The REG1118-2.85 is a three-terminal voltage regulators capable of sourcing up to 800mA and sinking up to 400mA.

The sinking capability is important in SCSI applications where active negation line drivers are used.

Features
