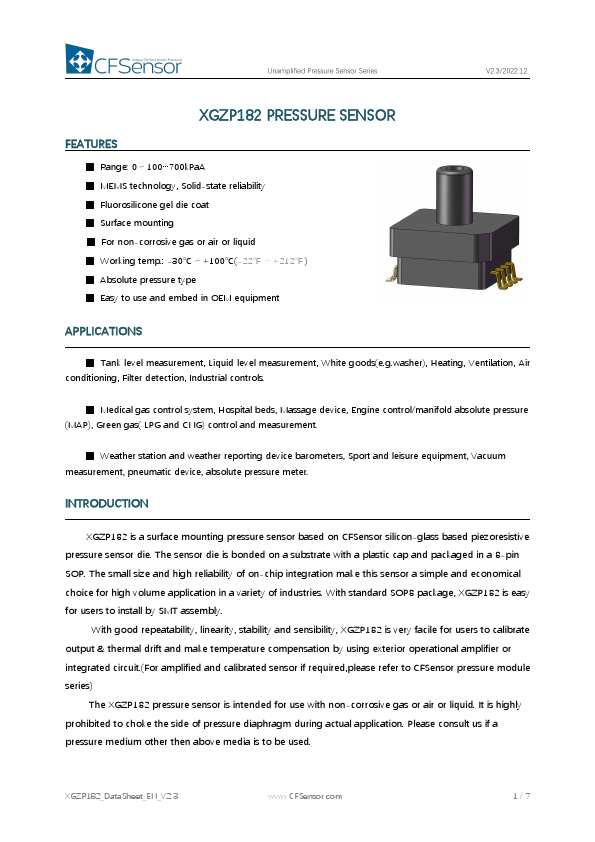

CFSensor XGZP182
XGZP182 is a surface mounting pressure sensor based on CFSensor silicon-glass based piezoresistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 8-pin SOP. The small size and high reliability of on-chip integration make this sensor a simple and economical choice for high volume application in a variety of industries.| Part No. | XGZP182 |
|---|---|
| Datasheet | XGZP182 Download |
| Manufacturer |  CFSensor |
| Description | Unamplified Pressure Sensor |
| Buy | Stock & Price |
FEATURES
● Range: 0～100…700kPaA● MEMS technology, Solid-state reliability
● Fluorosilicone gel die coat
● Surface mounting
● For non-corrosive gas or air or liquid
● Working temp.: -30℃～+100℃(-22℉～+212℉)
● Absolute pressure type
● Easy to use and embed in OEM equipment
APPLICATIONS
● Tank level measurement, Liquid level measurement, White goods(e.g.washer), Heating, Ventilation, Air conditioning, Filter detection, Industrial controls.● Medical gas control system, Hospital beds, Massage device, Engine control/manifold absolute pressure (MAP), Green gas( LPG and CNG) control and measurement.
● Weather station and weather reporting device barometers, Sport and leisure equipment, Vacuum measurement, pneumatic device, absolute pressure meter. INTRODUCTION With standard SOP8 package, XGZP182 is easy for users to install by SMT assembly. With good repeatability, linearity, stability and sensibility, XGZP182 is very facile for users to calibrate output & thermal drift and make temperature co...
