CFSensor XGZP191

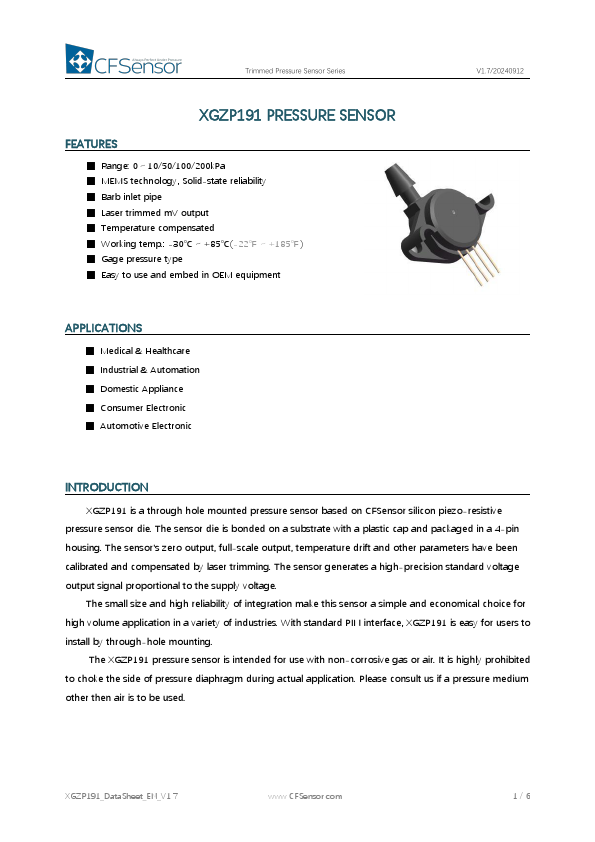

XGZP191 is a through hole mounted pressure sensor based on CFSensor silicon piezo-resistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 4-pin housing. The sensor's zero output, full-scale output, temperature drift and other parameters have been calibrated and compensated by laser trimming.| Part No. | XGZP191 |
|---|---|
| Datasheet | XGZP191 Download |
| Manufacturer |  CFSensor |
| Description | Calibrated mV Pressure Sensor |
| Buy | Stock & Price |
FEATURES
● Range: 0～10/50/100/200kPa● MEMS technology, Solid-state reliability
● Barb inlet pipe
● Laser trimmed mV output
● Temperature compensated
● Working temp.: -30℃～+85℃(-22℉～+185℉)
● Gage pressure type
● Easy to use and embed in OEM equipment
APPLICATIONS
● Medical & Healthcare● Industrial & Automation
● Domestic Appliance
● Consumer Electronic
● Automotive Electronic V1.7/20240912 INTRODUCTION The sensor generates a high-precision standard voltage output signal proportional to the supply voltage. The small size and high reliability of integration make this sensor a simple and economical choice for high volume application in a variety of industries. With standard PIN interface, XGZP191 is easy for users to install by through-hole mounting. The XGZP191 pressure sensor is intended for use with non-corrosive gas or air. It is highly prohibited to choke the side of pressure diaphragm during actual application. Please consult us if a pressure medium other then air is to be used. XG...
