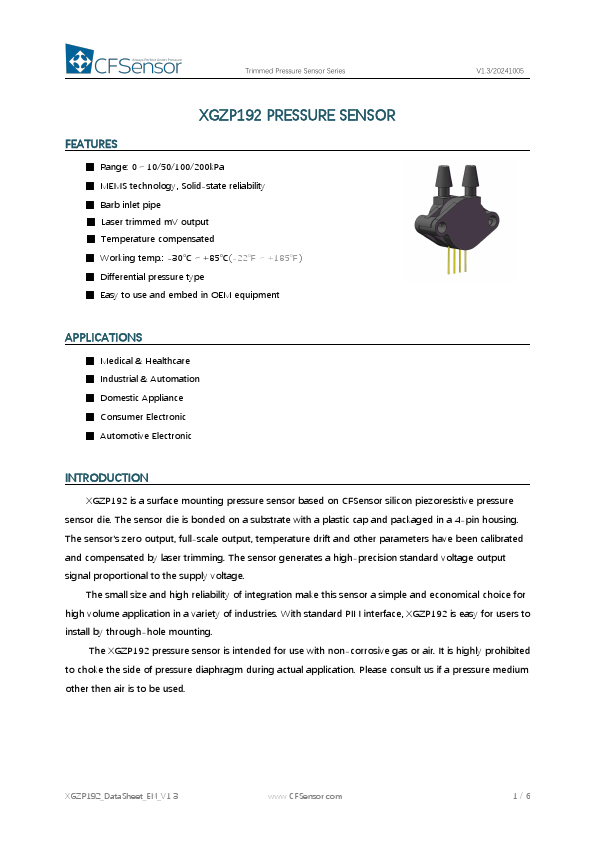

XGZP192
XGZP192 is Trimmed Pressure Sensor manufactured by CFSensor.
FEATURES
- Range: 0～10/50/100/200k Pa
- MEMS technology, Solid-state reliability
- Barb inlet pipe
- Laser trimmed m V output
- Temperature pensated
- Working temp.: -30℃～+85℃(-22℉～+185℉)
- Differential pressure type
- Easy to use and embed in OEM equipment
APPLICATIONS
- Medical & Healthcare
- Industrial & Automation
- Domestic Appliance
- Consumer Electronic
- Automotive Electronic
INTRODUCTION
XGZP192 is a surface mounting pressure sensor based on CFSensor silicon piezoresistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 4-pin housing. The sensor's zero output, full-scale output, temperature drift and other parameters have been calibrated and pensated by laser trimming. The sensor generates a high-precision standard voltage output signal proportional to the supply voltage.
The small size and high reliability of integration make this sensor a simple and economical choice for high volume application in a variety of industries. With standard PIN interface, XGZP192 is easy for users to install by through-hole mounting.
The XGZP192 pressure sensor is intended for use with non-corrosive gas or air. It is highly prohibited to choke the side of pressure diaphragm during actual application. Please consult us if a pressure medium other then air is to be used.
XGZP192_Data Sheet_EN_V1.3
.CFSensor.
1/6
Trimmed Pressure Sensor Series
V1.3/20241005

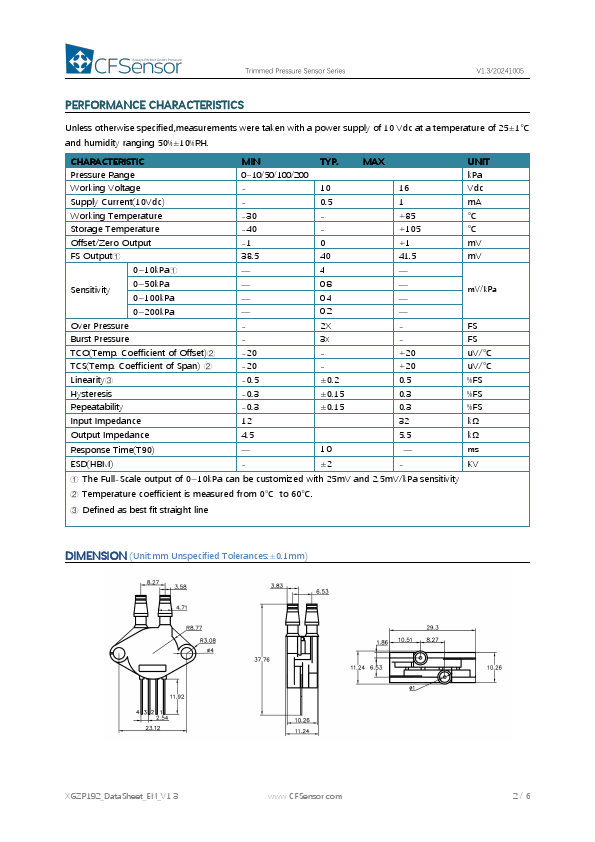

PERFORMANCE CHARACTERISTICS
Unless otherwise specified,measurements were taken with a power supply of 10 Vdc at a temperature of 25±1℃ and humidity ranging 50%±10%RH.
CHARACTERISTIC
Pressure Range
Working Voltage
Supply Current(10Vdc)
Working Temperature
Storage Temperature
Offset/Zero Output
FS Output①
0~10k Pa①
Sensitivity
0~50k Pa 0~100k Pa
0~10/50/100/200 -30 -40 -1 38.5
- -...
