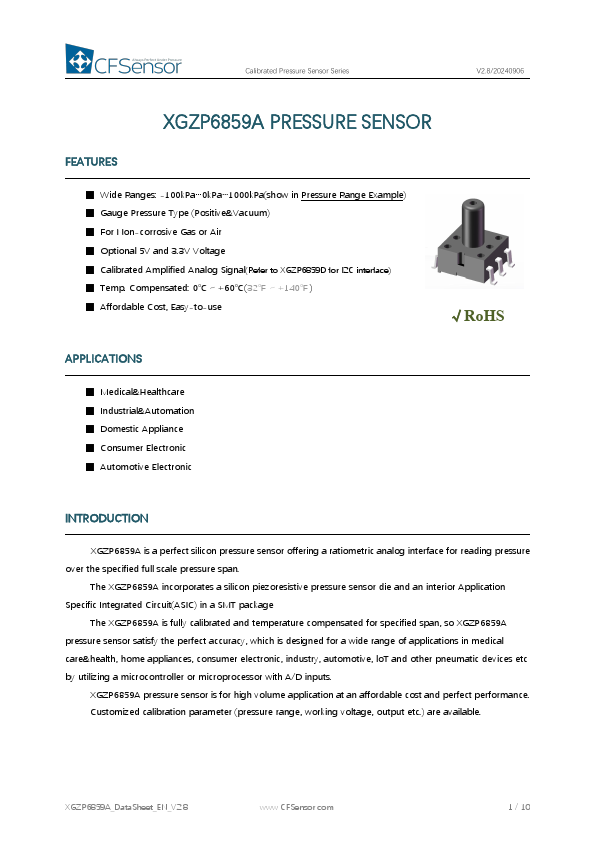

XGZP6859A
XGZP6859A is Calibrated Pressure Sensor manufactured by CFSensor.
FEATURES
- Wide Ranges: -100k Pa…0k Pa…1000k Pa(show in Pressure Range Example)
- Gauge Pressure Type (Positive&Vacuum)
- For Non-corrosive Gas or Air
- Optional 5V and 3.3V Voltage
- Calibrated Amplified Analog Signal(Refer to XGZP6859D for I2C interface)
- Temp. pensated: 0℃～+60℃(32℉～+140℉)
- Affordable Cost, Easy-to-use
√Ro HS
APPLICATIONS
- Medical&Healthcare
- Industrial&Automation
- Domestic Appliance
- Consumer Electronic
- Automotive Electronic
INTRODUCTION
XGZP6859A is a perfect silicon pressure sensor offering a ratiometric analog interface for reading pressure over the specified full scale pressure span.
The XGZP6859A incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC) in a SMT package
The XGZP6859A is fully calibrated and temperature pensated for specified span, so XGZP6859A pressure sensor satisfy the perfect accuracy, which is designed for a wide range of applications in medical care&health, home appliances, consumer electronic, industry, automotive, lo T and other pneumatic devices etc by utilizing a microcontroller or microprocessor with A/D inputs.
XGZP6859A pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibration parameter (pressure range, working voltage, output etc.) are available.
XGZP6859A_Data Sheet_EN_V2.8
.CFSensor.
1 / 10
Calibrated Pressure Sensor Series
V2.8/20240906

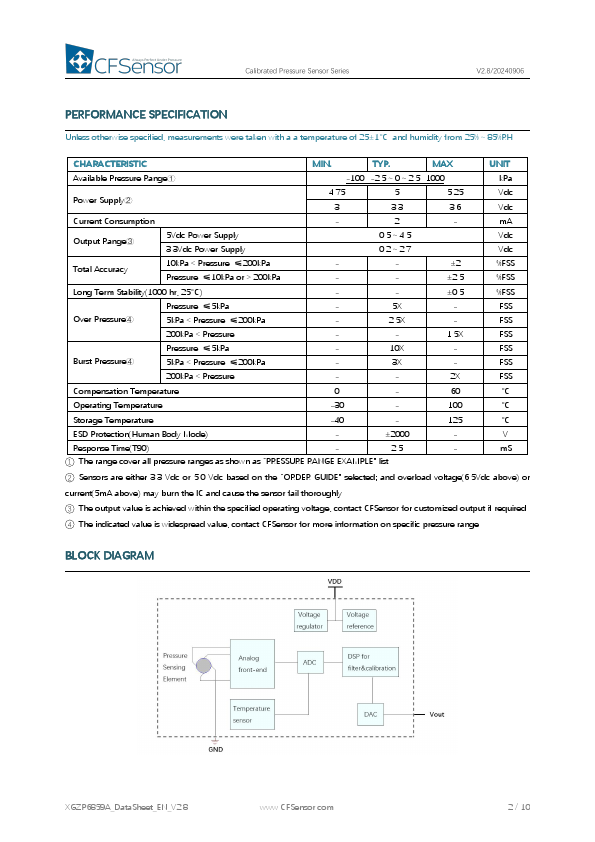

PERFORMANCE SPECIFICATION
Unless otherwise specified, measurements were taken with a a temperature of 25±1℃ and humidity from 25%～85%RH
CHARACTERISTIC
MIN.
TYP.
UNIT
Available Pressure Range①
Power Supply②
Current Consumption
Output Range③
5Vdc Power Supply 3.3Vdc Power Supply
Total Accuracy
10k Pa＜Pressure ≤200k Pa Pressure ≤10k Pa or＞200k Pa
Long Term Stability(1000 hr,...
