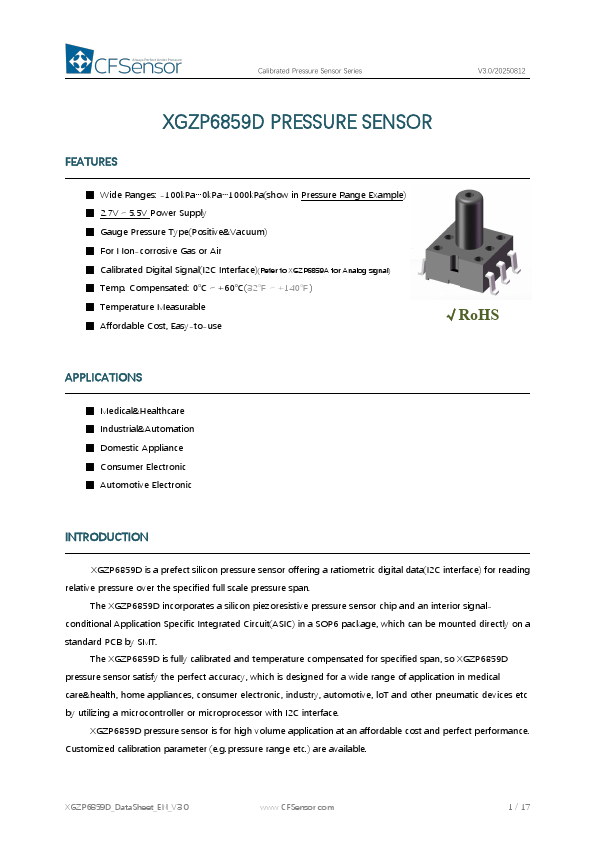

XGZP6859D
XGZP6859D is Calibrated Pressure Sensor manufactured by CFSensor.
FEATURES
- Wide Ranges: -100k Pa…0k Pa…1000k Pa(show in Pressure Range Example)
- 2.7V～5.5V Power Supply
- Gauge Pressure Type(Positive&Vacuum)
- For Non-corrosive Gas or Air
- Calibrated Digital Signal(I2C Interface)(Refer to XGZP6859A for Analog signal)
- Temp. pensated: 0℃～+60℃(32℉～+140℉)
- Temperature Measurable
- Affordable Cost, Easy-to-use
√Ro HS
APPLICATIONS
- Medical&Healthcare
- Industrial&Automation
- Domestic Appliance
- Consumer Electronic
- Automotive Electronic
INTRODUCTION
XGZP6859D is a prefect silicon pressure sensor offering a ratiometric digital data(I2C interface) for reading relative pressure over the specified full scale pressure span.
The XGZP6859D incorporates a silicon piezoresistive pressure sensor chip and an interior signalconditional Application Specific Integrated Circuit(ASIC) in a SOP6 package, which can be mounted directly on a standard PCB by SMT.
The XGZP6859D is fully calibrated and temperature pensated for specified span, so XGZP6859D pressure sensor satisfy the perfect accuracy, which is designed for a wide range of application in medical care&health, home appliances, consumer electronic, industry, automotive, lo T and other pneumatic devices etc by utilizing a microcontroller or microprocessor with I2C interface.
XGZP6859D pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibration parameter (e.g.pressure range etc.) are available.
XGZP6859D_Data Sheet_EN_V3.0
.CFSensor.
1 / 17
Calibrated Pressure Sensor Series
V3.0/20250812

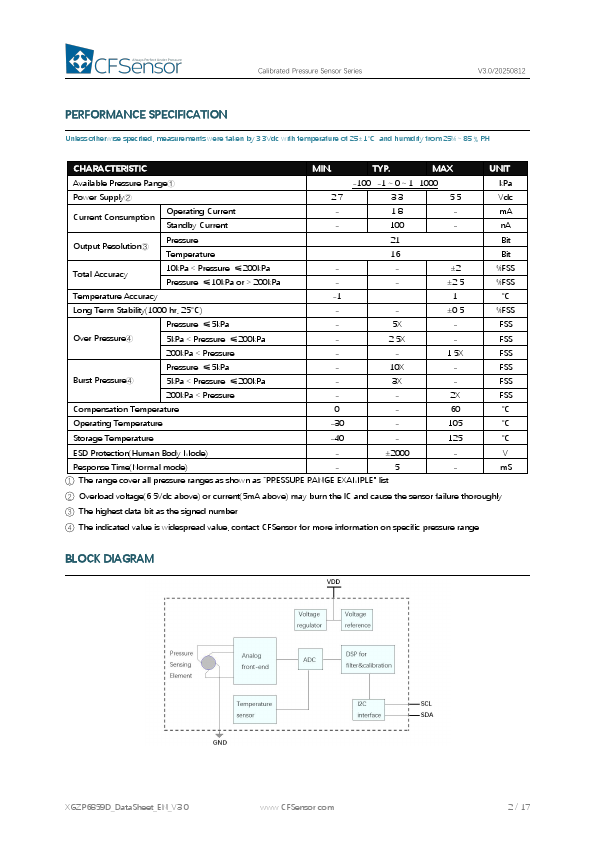

PERFORMANCE SPECIFICATION
Unless otherwise specified, measurements were taken by 3.3Vdc with temperature of 25±1℃ and humidity from 25%～85﹪RH.
CHARACTERISTIC
MIN.
TYP.
UNIT
Available Pressure Range①
-100…-1～0～1…1000 k Pa
Power...
