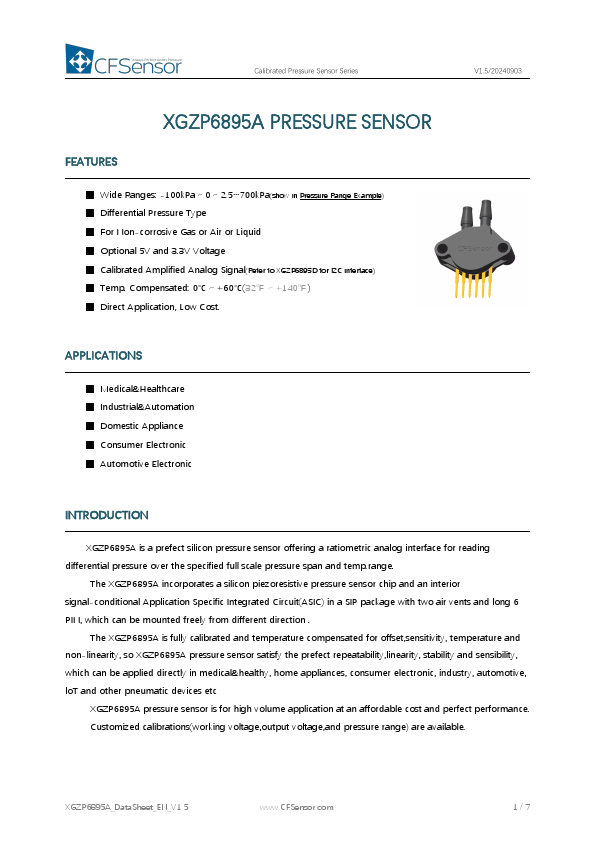

XGZP6895A
XGZP6895A is Calibrated Pressure Sensor manufactured by CFSensor.
FEATURES
- Wide Ranges: -100k Pa～0～2.5…700k Pa(show in Pressure Range Example)
- Differential Pressure Type
- For Non-corrosive Gas or Air or Liquid
- Optional 5V and 3.3V Voltage
- Calibrated Amplified Analog Signal(Refer to XGZP6895D for I2C interface)
- Temp. pensated: 0℃～+60℃(32℉～+140℉)
- Direct Application, Low Cost.
APPLICATIONS
- Medical&Healthcare
- Industrial&Automation
- Domestic Appliance
- Consumer Electronic
- Automotive Electronic
V1.5/20240903
INTRODUCTION
XGZP6895A is a prefect silicon pressure sensor offering a ratiometric analog interface for reading differential pressure over the specified full scale pressure span and temp.range.
The XGZP6895A incorporates a silicon piezoresistive pressure sensor chip and an interior signal-conditional Application Specific Integrated Circuit(ASIC) in a SIP package with two air vents and long 6 PIN, which can be mounted freely from different direction .
The XGZP6895A is fully calibrated and temperature pensated for offset,sensitivity, temperature and non-linearity, so XGZP6895A pressure sensor satisfy the prefect repeatability,linearity, stability and sensibility, which can be applied directly in medical&healthy, home appliances, consumer electronic, industry, automotive, lo T and other pneumatic devices etc
XGZP6895A pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibrations(working voltage,output voltage,and pressure range) are available.
XGZP6895A_Data Sheet_EN_V1.5
.CFSensor.
1/7
Calibrated Pressure Sensor Series
V1.5/20240903

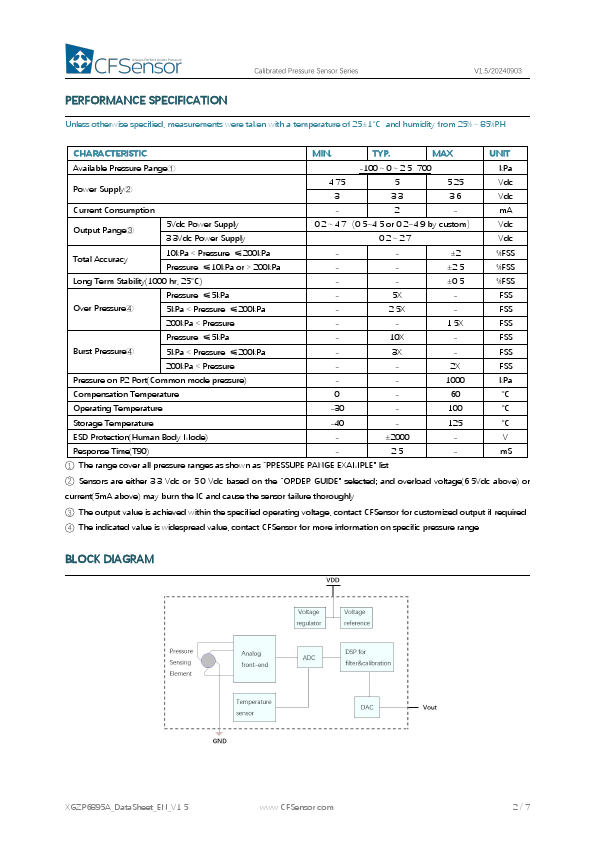

PERFORMANCE SPECIFICATION
Unless otherwise specified, measurements were taken with a temperature of 25±1℃ and humidity from 25%～85%RH
CHARACTERISTIC
MIN.
TYP.
UNIT
Available Pressure Range①
-100～0～2.5…700 k Pa
Power...
