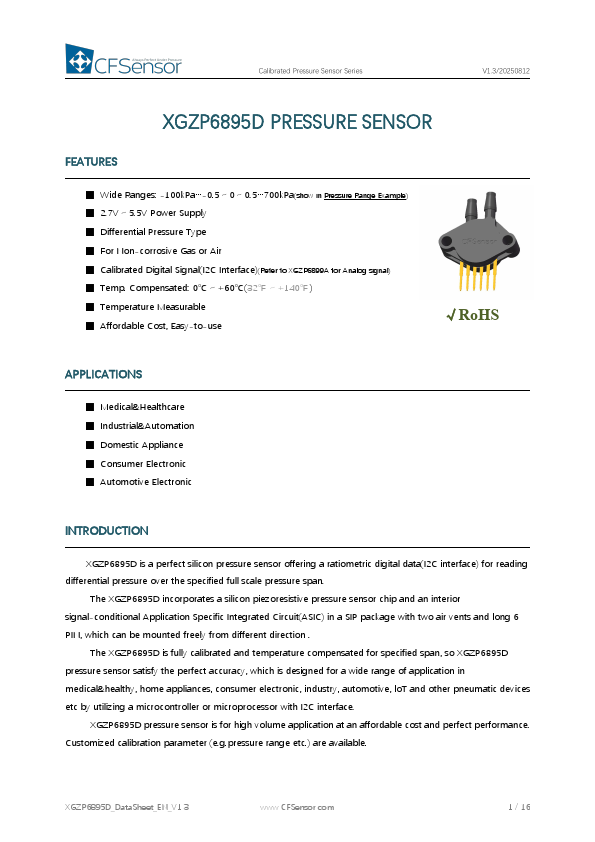

XGZP6895D
XGZP6895D is Calibrated Pressure Sensor manufactured by CFSensor.
FEATURES
- Wide Ranges: -100k Pa…-0.5～0～0.5…700k Pa(show in Pressure Range Example)
- 2.7V～5.5V Power Supply
- Differential Pressure Type
- For Non-corrosive Gas or Air
- Calibrated Digital Signal(I2C Interface)(Refer to XGZP6899A for Analog signal)
- Temp. pensated: 0℃～+60℃(32℉～+140℉)
- Temperature Measurable
- Affordable Cost, Easy-to-use
√Ro HS
APPLICATIONS
- Medical&Healthcare
- Industrial&Automation
- Domestic Appliance
- Consumer Electronic
- Automotive Electronic
INTRODUCTION
XGZP6895D is a perfect silicon pressure sensor offering a ratiometric digital data(I2C interface) for reading differential pressure over the specified full scale pressure span.
The XGZP6895D incorporates a silicon piezoresistive pressure sensor chip and an interior signal-conditional Application Specific Integrated Circuit(ASIC) in a SIP package with two air vents and long 6 PIN, which can be mounted freely from different direction .
The XGZP6895D is fully calibrated and temperature pensated for specified span, so XGZP6895D pressure sensor satisfy the perfect accuracy, which is designed for a wide range of application in medical&healthy, home appliances, consumer electronic, industry, automotive, lo T and other pneumatic devices etc by utilizing a microcontroller or microprocessor with I2C interface.
XGZP6895D pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibration parameter (e.g.pressure range etc.) are available.
XGZP6895D_Data Sheet_EN_V1.3
.CFSensor.
1 / 16
Calibrated Pressure Sensor Series
V1.3/20250812

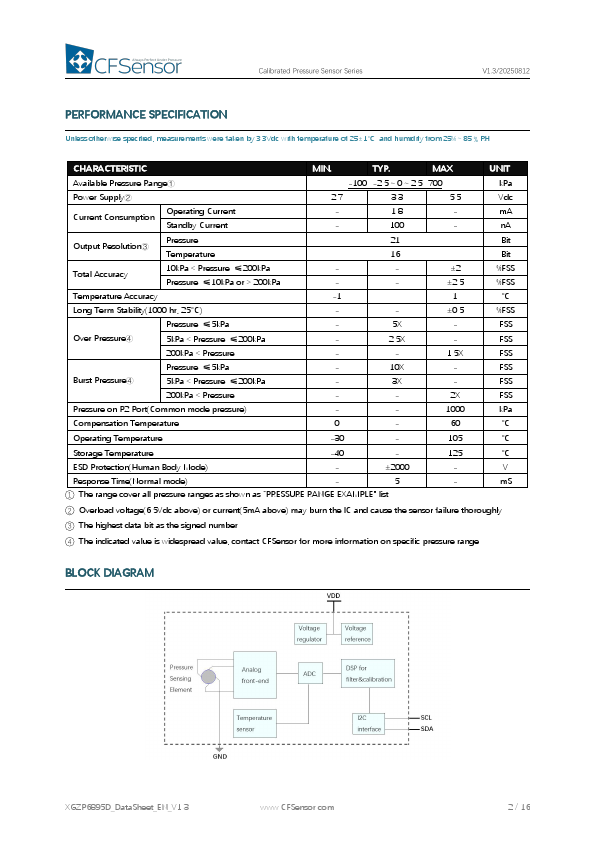

PERFORMANCE SPECIFICATION
Unless otherwise specified, measurements were taken by 3.3Vdc with temperature of 25±1℃ and humidity from 25%～85﹪RH.
CHARACTERISTIC
MIN.
TYP.
UNIT
Available Pressure Range①
-100…-2.5～0～2.5…700 k Pa
Power...
