GBLC12C Datasheet 350W Surface Mount Transient Voltage Suppressor Array

Manufacturer: CITC

Download the GBLC12C datasheet PDF. This datasheet also includes the GBLC03 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBLC03-CITC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBLC12C
Manufacturer CITC
File Size 47.72 KB
Description 350W Surface Mount Transient Voltage Suppressor Array
Download GBLC12C Download (PDF)

Overview

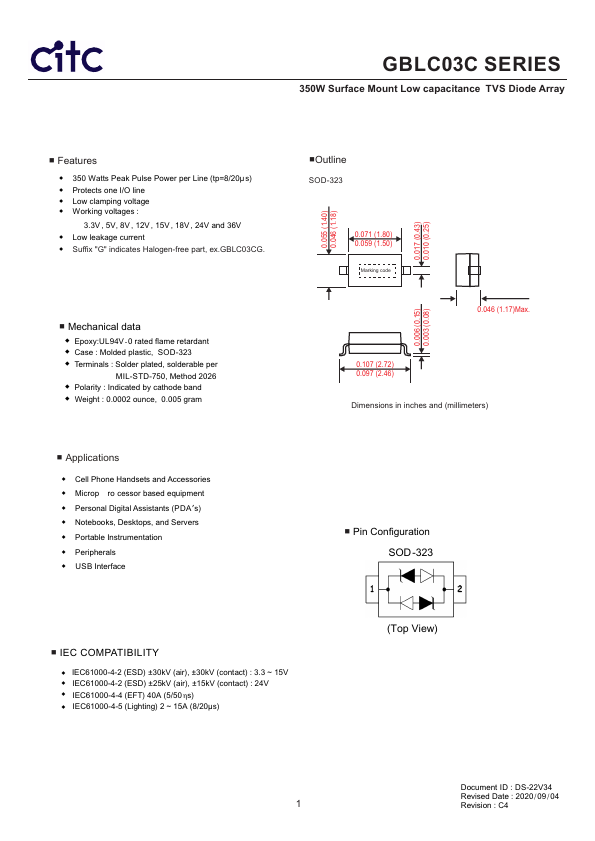

Low Capacitance SMD TVS Array Chip Integration Technology Corporation GBLC03 SERIES 350W Surface Mount Transient Voltage Suppressor Array VOLTAGE : 3.3 TO 24Volts 0.014 (0.35) 0.010 (0.

Key Features

  • 61000-4-2(ESD): Air-15KV, Contact-8KV.
  • Uni-directional & Bi-directional configuration.
  • Stand-off voltage: 3.3V-24V.
  • Low leakage.
  • Low capacitance, 3pF maximum.
  • Replacement for MLV(0805).
  • Protect one poer or I/O port.
  • Low clamping voltage,.
  • Suffix "G" indicates Halogen-free part, ex. GBLC03G.
  • In compliance with EU RoHS 2002/95/EC directives. 0.055 (1.40) 0.047 (1.20) Outline SOD-323 0.07 1 (1.80 ) 0.
