GBLC24C Datasheet 350W Surface Mount Transient Voltage Suppressor Array

Manufacturer: CITC

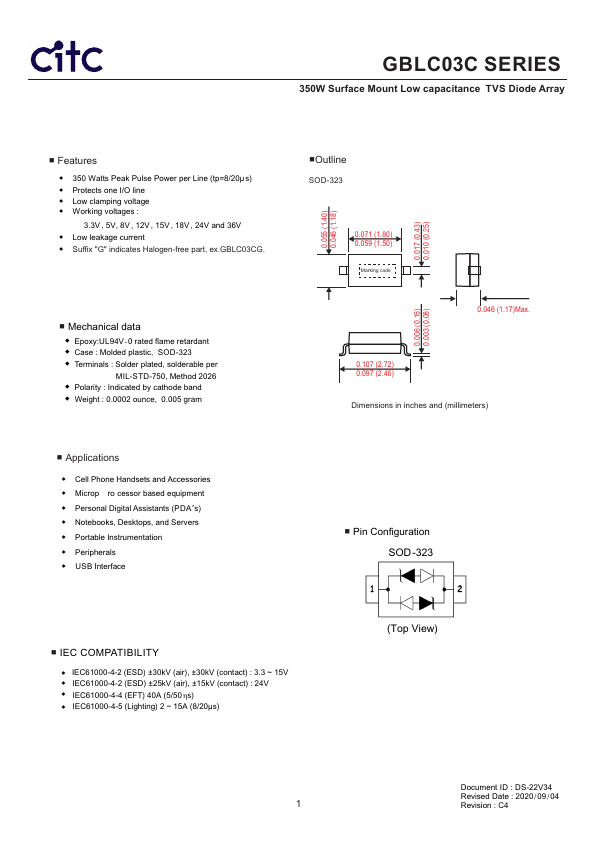

Overview: Low Capacitance SMD TVS Array Chip Integration Technology Corporation GBLC03 SERIES 350W Surface Mount Transient Voltage Suppressor Array VOLTAGE : 3.3 TO 24Volts 0.014 (0.35) 0.010 (0.

Download the GBLC24C datasheet PDF. This datasheet also includes the GBLC03 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Datasheet Details

Part number GBLC24C
Manufacturer CITC
File Size 47.72 KB
Description 350W Surface Mount Transient Voltage Suppressor Array
Download GBLC24C Download (PDF)

Key Features

  • 61000-4-2(ESD): Air-15KV, Contact-8KV.
  • Uni-directional & Bi-directional configuration.
  • Stand-off voltage: 3.3V-24V.
  • Low leakage.
  • Low capacitance, 3pF maximum.
  • Replacement for MLV(0805).
  • Protect one poer or I/O port.
  • Low clamping voltage,.
  • Suffix "G" indicates Halogen-free part, ex. GBLC03G.
  • In compliance with EU RoHS 2002/95/EC directives. 0.055 (1.40) 0.047 (1.20) Outline SOD-323 0.07 1 (1.80 ) 0.
