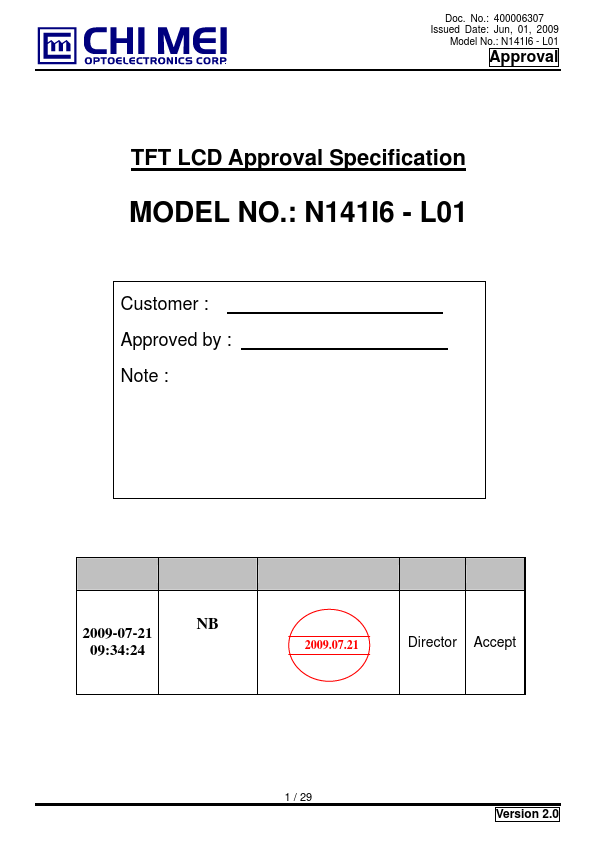

Doc. No.: 400006307 Issued Date: Jun, 01, 2009 Model No.: N141I6 - L01 Approval TFT LCD Approval Specification MODEL NO.: N141I6 - L01 Customer : Approved by : Note : 2009-07-21 09:34:24 Director Accept 1 / 29 Version 2.0 Doc. No.: 400006307 Issued Date: Jun, 01, 2009 Model No.: N141I6 - L01 Approval 1 GENERAL DESCRIPTION 1.1 OVERVIEW N141I6 - L01 is a 14.1” TFT Liquid Crystal Display module with white LED Backlight unit and 30 pins LVDS interface. This module supports 1280 x 800 WXGA mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction. The converter module for backlight is not built in. 1.2 Features - White LED Backlight - WXGA...
