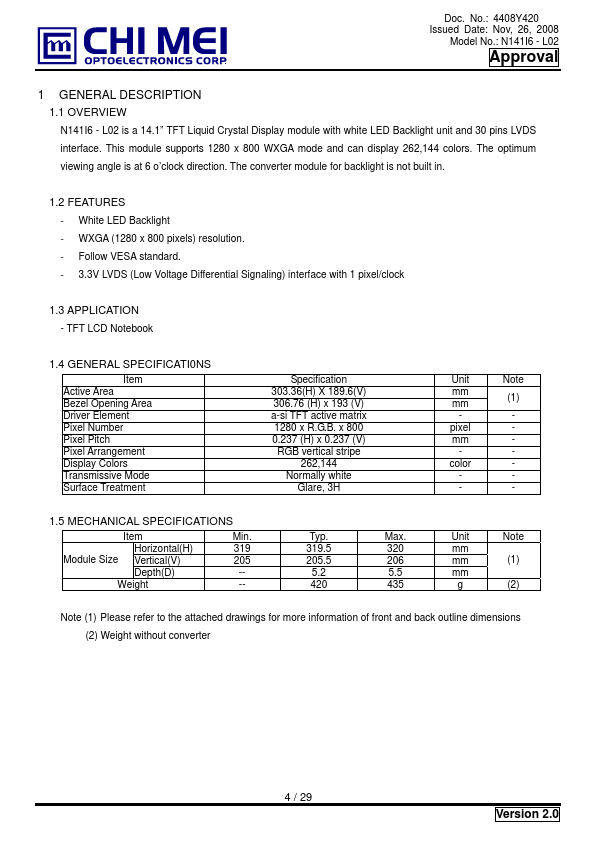

Doc. No.: 4408Y420 Issued Date: Nov, 26, 2008 Model No.: N141I6 - L02 Approval TFT LCD Approval Specification MODEL NO.: N141I6 - L02 Customer : Approved by : Note : 2008-11-28 14:55:48 CST PMMD III annie_hsu( Director /56522 / 54873) Director Accept 1 / 29 Version 2.0 Doc. No.: 4408Y420 Issued Date: Nov, 26, 2008 Model No.: N141I6 - L02 Approval 1 GENERAL DESCRIPTION 1.1 OVERVIEW N141I6 - L02 is a 14.1” TFT Liquid Crystal Display module with white LED Backlight unit and 30 pins LVDS interface. This module supports 1280 x 800 WXGA mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction. The converter module for backlight is not built in. 1.2...
