KPC452 - 4PIN MINI-FLAT PHOTODARLINGTON PHOTOCOUPLER

Description

4-pin Mini-Flat package.

Collector-emitter voltage is 300V.

The input-output isolation voltage is rated at 3750 Vrms..

Features

  • s 1. Pb free and RoHS compliant 2. Mini-flat package: compact 4 pin SOP with a 2.0mm profile 3. High collector-emitter voltage (VCEO : 300V) 4. High current transfer ratio (CTR : MIN.1000% at IF =1mA,VCE =2V) 5. High isolation voltage between input and output (Viso:3750Vrms) 6. MSL class 1 7. Agency Approvals:.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 40014684): DIN EN 60747-5-5.
  • FIMKO Approved: EN62368-1, EN60601-1.

📥 Download Datasheet

Datasheet preview – KPC452

Datasheet Details

Part number KPC452
Manufacturer COSMO Electronics
File Size 205.25 KB
Description 4PIN MINI-FLAT PHOTODARLINGTON PHOTOCOUPLER
Datasheet download datasheet KPC452 Datasheet

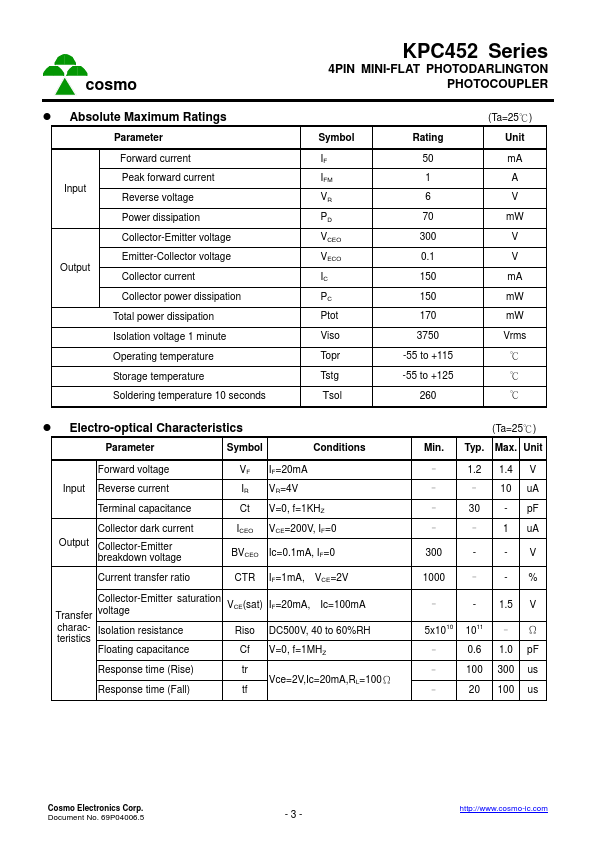

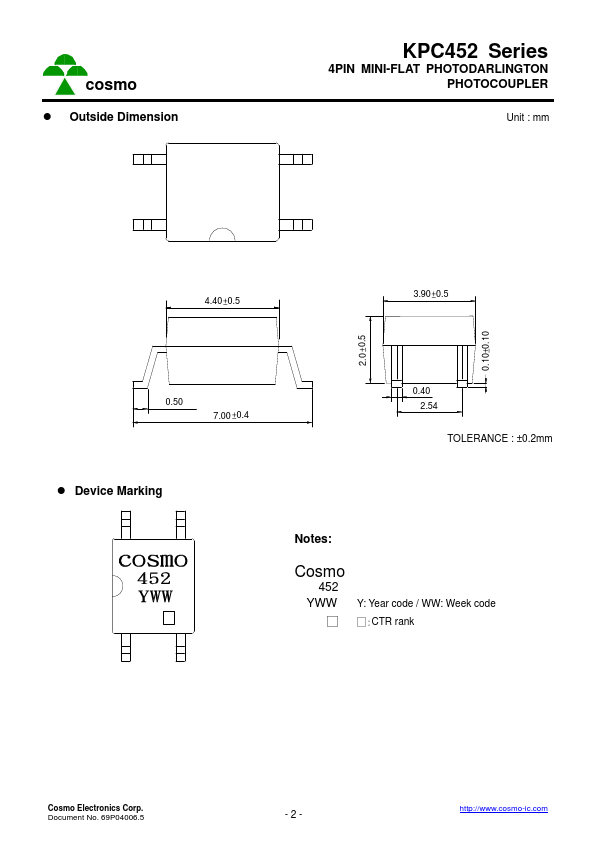

Additional preview pages of the KPC452 datasheet.

📁 Similar Datasheet

Other Datasheets by COSMO Electronics
  • KPC457 - 5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER
  • KPC410 - 5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER
  • KPC4N33 - 6PIN PHOTODARLINGTON PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text

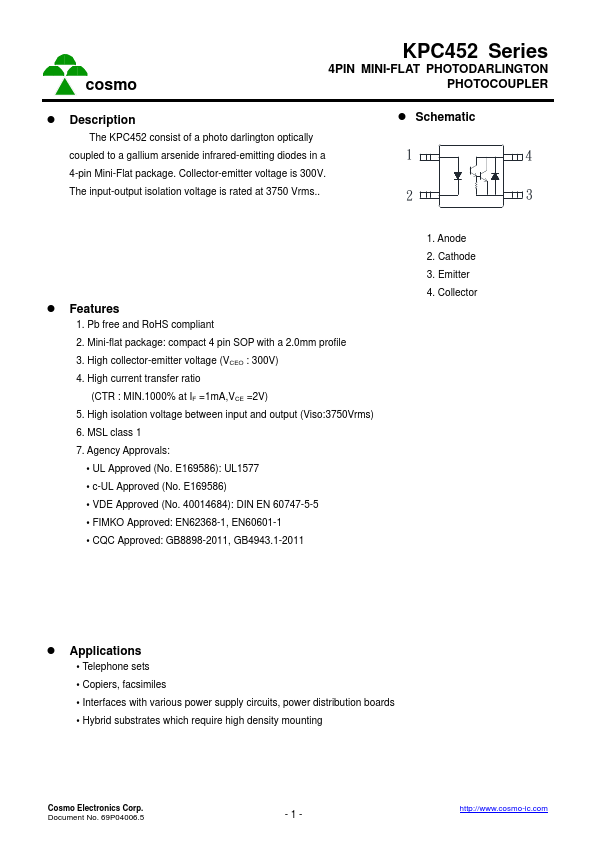

cosmo KPC452 Series 4PIN MINI-FLAT PHOTODARLINGTON PHOTOCOUPLER  Description  Schematic The KPC452 consist of a photo darlington optically 1 4 coupled to a gallium arsenide infrared-emitting diodes in a 4-pin Mini-Flat package. Collector-emitter voltage is 300V. 2 3 The input-output isolation voltage is rated at 3750 Vrms..  Features 1. Pb free and RoHS compliant 2. Mini-flat package: compact 4 pin SOP with a 2.0mm profile 3. High collector-emitter voltage (VCEO : 300V) 4. High current transfer ratio (CTR : MIN.1000% at IF =1mA,VCE =2V) 5. High isolation voltage between input and output (Viso:3750Vrms) 6. MSL class 1 7. Agency Approvals: • UL Approved (No. E169586): UL1577 • c-UL Approved (No. E169586) • VDE Approved (No.
