KPC457 - 5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER

Description

The KPC457 series consist of a LED.

It is a high-speed digital output type photocoupler.

And it is packaged in a 5pin mini-flat package.

Features

  • 1. Pb free and RoHS compliant 2. 5 pin mini-flat package 3. High speed response (tPLH:typ.0.2us, tPHL:typ.0.4us) 4. High instantaneous common mode rejection voltage (CMH: Min. 15KV/us, CML: Min. -15KV/us) 5. High isolation voltage between input and output (Viso: 3750Vrms) 6. MSL class 1 7. Agency Approvals:.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 40020973): DIN EN60747-5-5 z.

📥 Download Datasheet

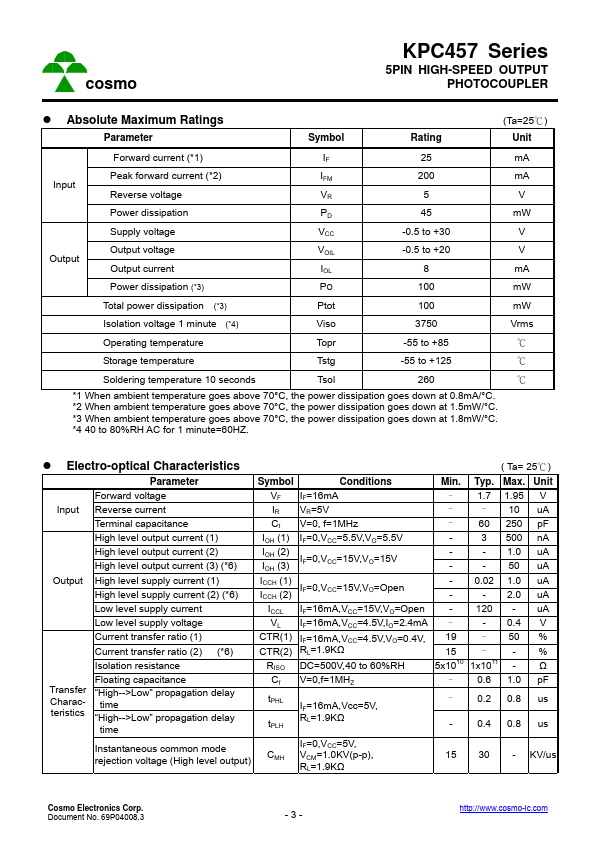

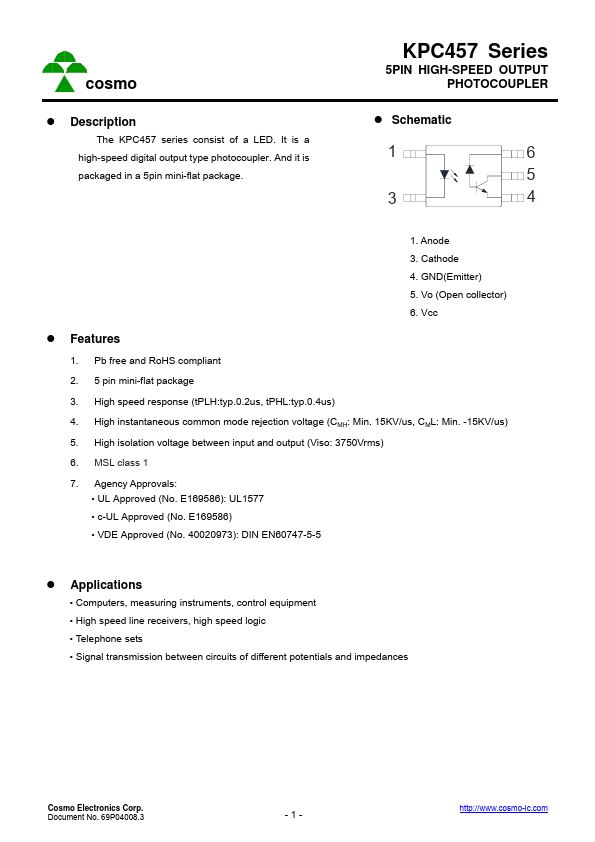

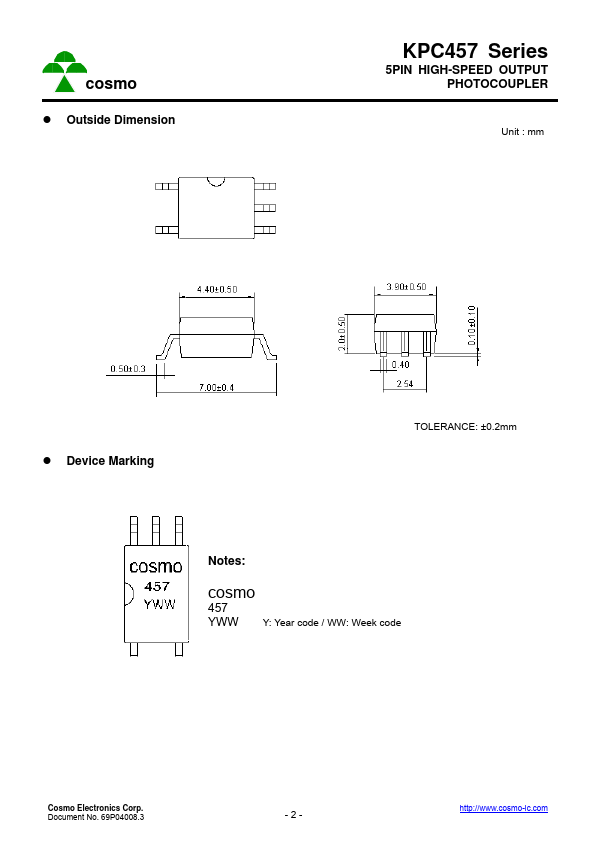

Datasheet preview – KPC457

Datasheet Details

Part number KPC457
Manufacturer COSMO Electronics
File Size 224.09 KB
Description 5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER
Datasheet download datasheet KPC457 Datasheet
