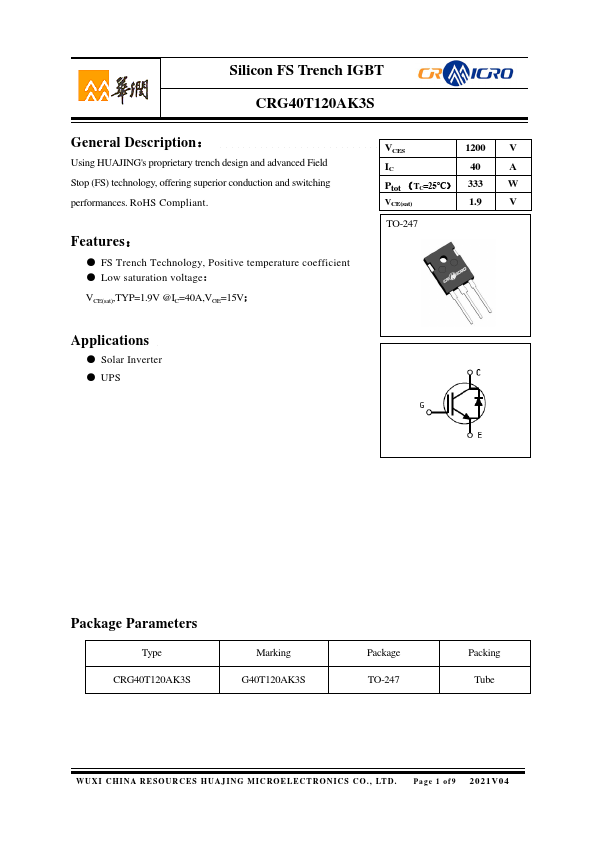

CRG40T120AK3S
CRG40T120AK3S is Silicon FS Trench IGBT manufactured by CR Micro.
Description
：
Using HUAJING's proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances. Ro HS pliant.
Features
：
- FS Trench Technology, Positive temperature coefficient
- Low saturation voltage： VCE(sat),TYP=1.9V @IC=40A,VGE=15V；
VCES
1200 V
Ptot （TC=25℃） 333
VCE(sat)
1.9 V
TO-247
Applications
- Solar Inverter
- UPS
Package Parameters
Type CRG40T120AK3S
Marking G40T120AK3S
Package TO-247
Packing Tube
WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO., LTD. Page 1 of 9 2021V04

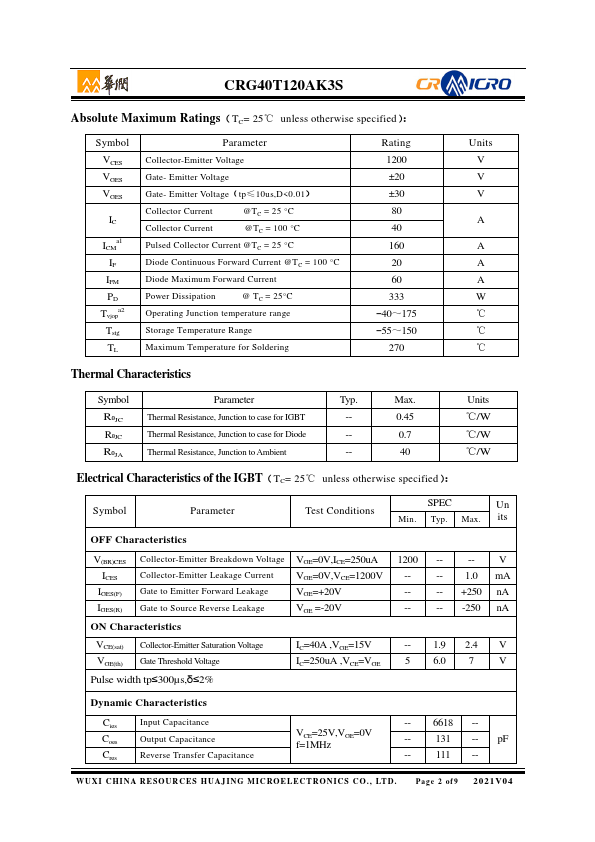

Absolute Maximum Ratings（TC= 25℃ unless otherwise specified）：
Symbol VCES VGES VGES
ICMa1 IF IFM PD
Tvjopa2 Tstg TL
Parameter
Collector-Emitter Voltage
Gate- Emitter Voltage
Gate- Emitter Voltage（tp≤10us,D<0.01）
Collector Current
@TC = 25 °C
Collector Current
@TC = 100 °C
Pulsed Collector Current @TC = 25 °C
Diode Continuous Forward Current @TC = 100 °C
Diode Maximum Forward...
