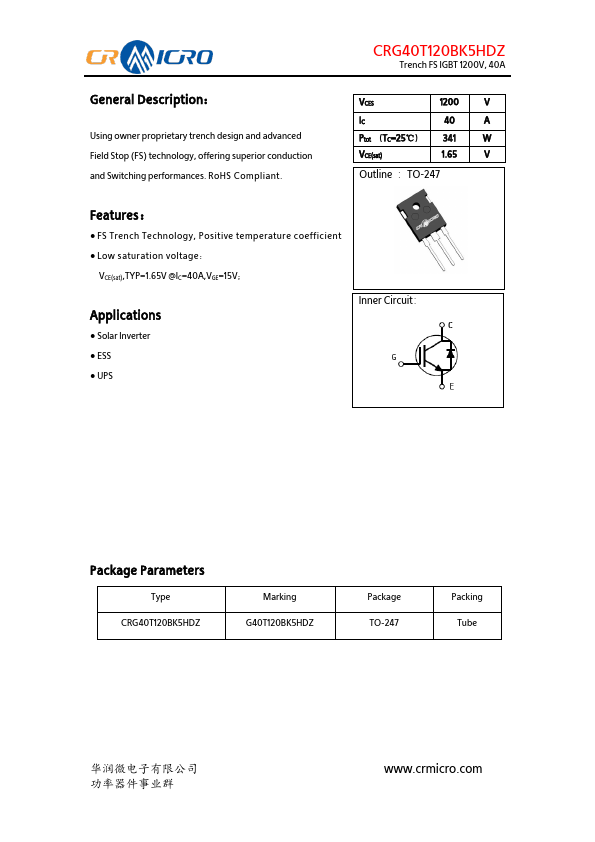

CRG40T120BK5HDZ
CRG40T120BK5HDZ is 1200V 40A Trench FS IGBT manufactured by CR Micro.
Description
：
Using owner proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and Switching performances. Ro HS pliant.
Trench FS IGBT 1200V, 40A
VCES
Ptot （TC=25℃）
VCE(sat)
Outline ：TO-247
Features
：
- FS Trench Technology, Positive temperature coefficient
- Low saturation voltage：
VCE(sat),TYP=1.65V @IC=40A,VGE=15V；
Applications
- Solar Inverter
- ESS
- UPS
Inner Circuit：
Package Parameters
Type CRG40T120BK5HDZ
Marking G40T120BK5HDZ
Package TO-247
Packing Tube
华润微电子有限公司 功率器件事业群
.crmicro.
Trench FS IGBT 1200V, 40A
Absolute Maximum Ratings（TC= 25℃ unless otherwise specified）：
Symbol VCES VGES VGES
ICMa1
Tvjopa2 Tstg TL
Parameter
Collector-Emitter...
