CRG40T65RK5SDQ
CRG40T65RK5SDQ is Silicon FS Trench IGBT manufactured by CR Micro.

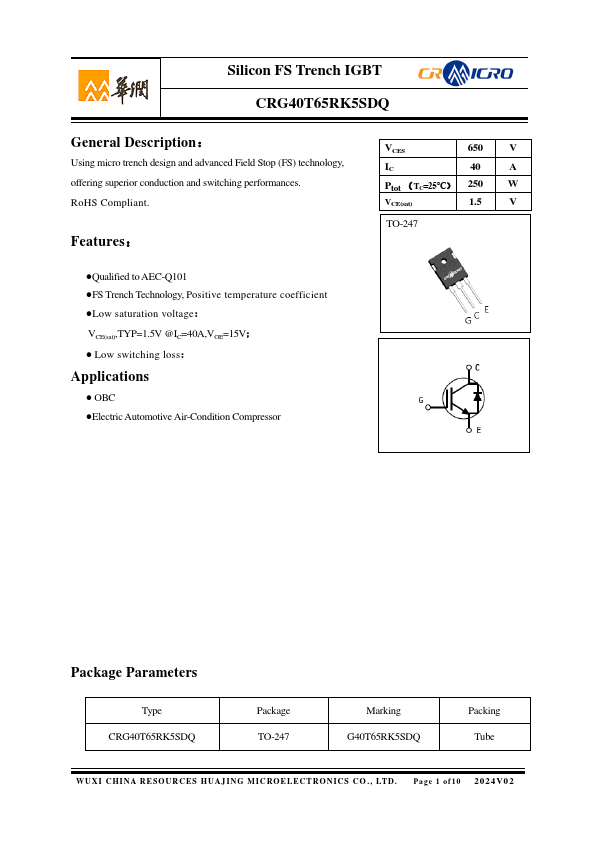

Silicon FS Trench IGBT CRG40T65RK5SDQ
General Description：
Using micro trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances. Ro HS pliant.
Features
：
- Qualified to AEC-Q101
- FS Trench Technology, Positive temperature coefficient
- Low saturation voltage： VCE(sat),TYP=1.5V @IC=40A,VGE=15V；
- Low switching loss：
Applications
- OBC
- Electric Automotive Air-Condition pressor
VCES
650 V
Ptot （TC=25℃） 250
VCE(sat)
1.5 V
TO-247
Package Parameters
Type CRG40T65RK5SDQ
Package TO-247
Marking G40T65RK5SDQ
Packing Tube
WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO ., LTD. Page 1 of 10...
