CRG50T60AK3HD - Silicon FS Trench IGBT

Datasheet Summary

Description

Using HUAJING's proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

RoHS Compliant.

Features

  • FS Trench Technology, Positive temperature coefficient.
  • Low saturation voltage： VCE(sat),TYP=1.8V @IC=50A,VGE=15V ； VCES 650 V IC 50 A Ptot （TC=25℃） 500 W VCE(sat) 1.8 V TO-247.

📥 Download Datasheet

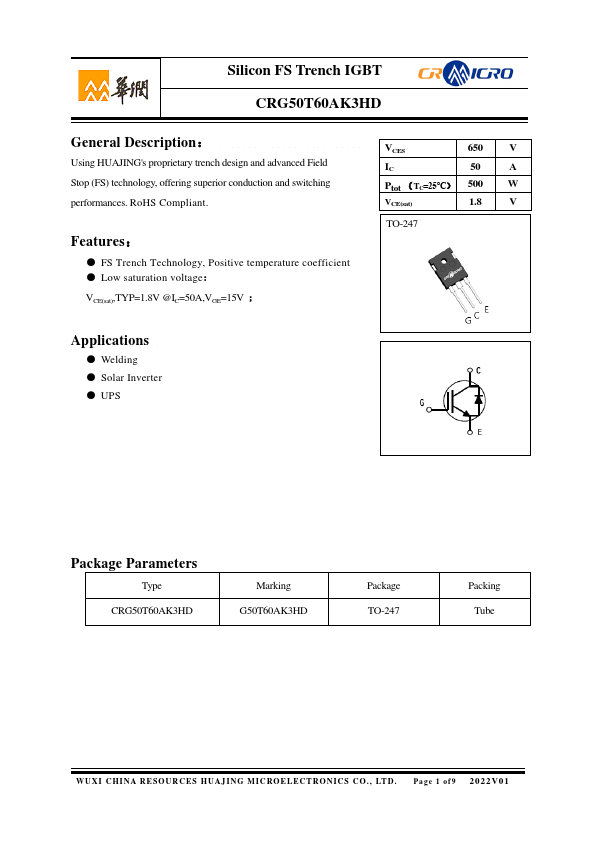

Datasheet preview – CRG50T60AK3HD

Datasheet Details

Part number CRG50T60AK3HD
Manufacturer CR Micro
File Size 1.21 MB
Description Silicon FS Trench IGBT
Datasheet download datasheet CRG50T60AK3HD Datasheet

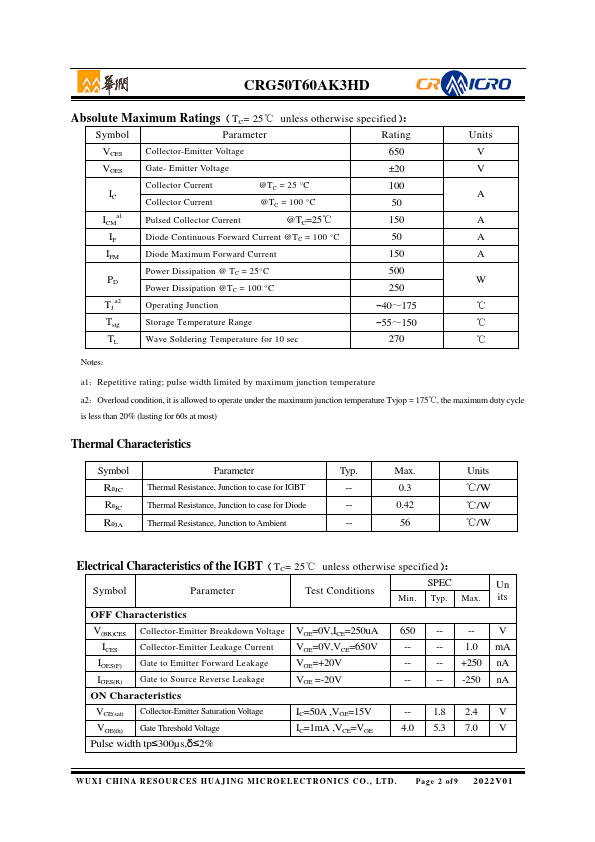

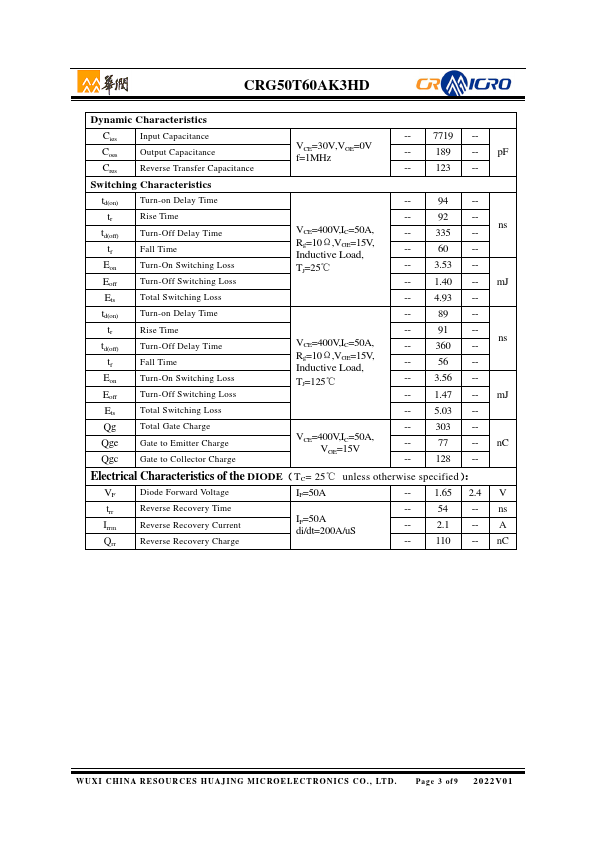

Additional preview pages of the CRG50T60AK3HD datasheet.

📁 Similar Datasheet

  • CRG01 - Rectifier (Toshiba Semiconductor)
  • CRG02 - Rectifier (Toshiba Semiconductor)
  • CRG0201 - Thick Film Chip Resistors (TE)
  • CRG04 - Rectifier Diode (Toshiba)
  • CRG0402 - Thick Film Chip Resistors (TE)
  • CRG04A - Rectifier Diode (Toshiba)
  • CRG05 - Rectifier (Toshiba)
  • CRG0603 - Thick Film Chip Resistors (TE)
  • CRG0805 - Thick Film Chip Resistors (TE)
  • CRG10A - Rectifier Diode (Toshiba)
Other Datasheets by CR Micro

Full PDF Text Transcription

Click to expand full text
Silicon FS Trench IGBT CRG50T60AK3HD General Description： Using HUAJING's proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances. RoHS Compliant. Features： ● FS Trench Technology, Positive temperature coefficient ● Low saturation voltage： VCE(sat),TYP=1.8V @IC=50A,VGE=15V ； VCES 650 V IC 50 A Ptot （TC=25℃） 500 W VCE(sat) 1.8 V TO-247 Applications ● Welding ● Solar Inverter ● UPS Package Parameters Type CRG50T60AK3HD Marking G50T60AK3HD Package TO-247 Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO., LTD.
