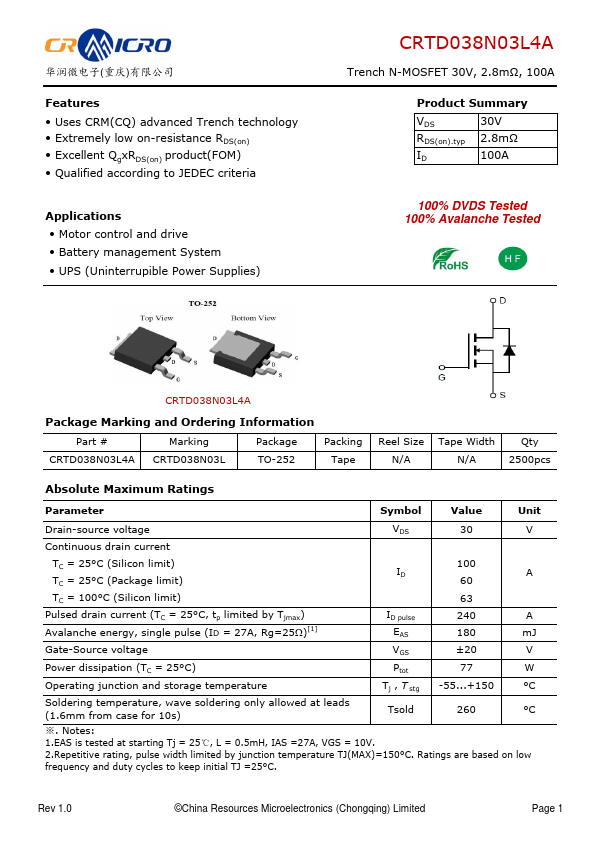

CRTD038N03L4A
CRTD038N03L4A is Trench N-MOSFET manufactured by CR Micro.
华润微电子(重庆)有限公司
Features
- Uses CRM(CQ) advanced Trench technology
- Extremely low on-resistance RDS(on)
- Excellent QgxRDS(on) product(FOM)
- Qualified according to JEDEC criteria
Applications
- Motor control and drive
- Battery management System
- UPS (Uninterrupible Power Supplies)
Trench N-MOSFET 30V, 2.8mΩ, 100A
Product Summary
VDS RDS(on).typ ID
30V 2.8mΩ 100A
100% DVDS Tested 100% Avalanche Tested
Package Marking and Ordering Information
Part # CRTD038N03L4A
Marking CRTD038N03L
Package TO-252
Packing Tape
Reel Size N/A
Tape Width
Qty
N/A
2500pcs...
