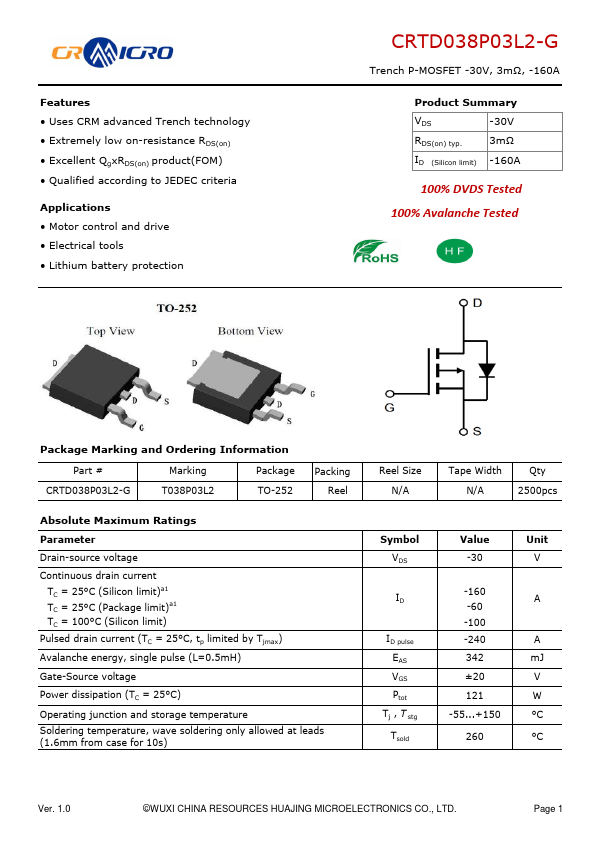

CRTD038P03L2-G
CRTD038P03L2-G is Trench P-MOSFET manufactured by CR Micro.
Features
- Uses CRM advanced Trench technology
- Extremely low on-resistance RDS(on)
- Excellent QgxRDS(on) product(FOM)
- Qualified according to JEDEC criteria
Applications
- Motor control and drive
- Electrical tools
- Lithium battery protection
Trench P-MOSFET -30V, 3mΩ, -160A
Product Summary
-30V
RDS(on) typ. ID (Silicon limit)
3mΩ -160A
100% DVDS Tested 100% Avalanche Tested
Package Marking and Ordering Information
Part # CRTD038P03L2-G
Marking T038P03L2
Package TO-252
Packing...
