CVCSO-914 Datasheet Ultra-Low Phase Noise True SineWave SAW Based VCSO

Manufacturer: CRYSTEK

CVCSO-914 ultra-low phase noise true sinewave saw based vcso by CRYSTEK - Datasheet Preview

Datasheet Details

Part number	CVCSO-914
Manufacturer	CRYSTEK
File Size	1.02 MB
Description	Ultra-Low Phase Noise True SineWave SAW Based VCSO
Download	CVCSO-914 Download (PDF)

Overview

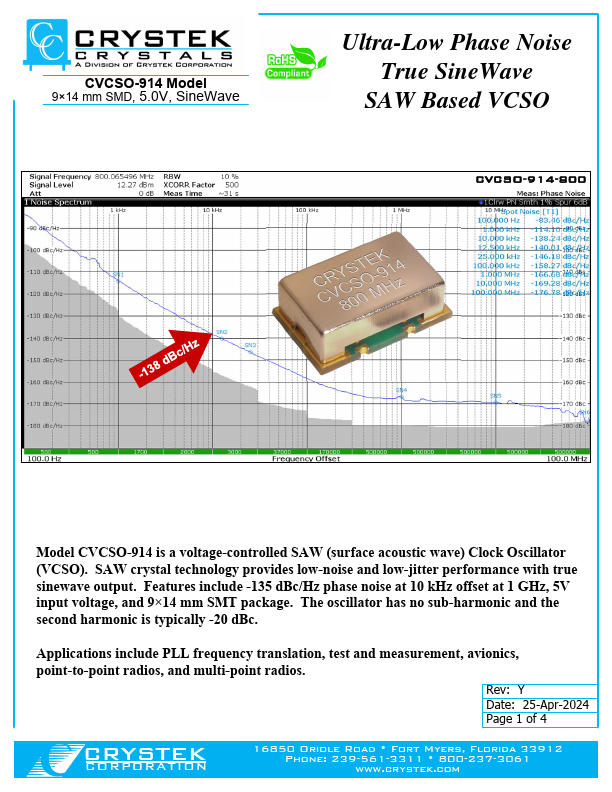

CVCSO-914 Model 9×14 mm SMD, 5.0V, SineWave Ultra-Low Phase Noise True SineWave SAW Based VCSO CVCSO-914-800 Model CVCSO-914 is a voltage-controlled SAW (surface acoustic wave) Clock Oscillator (VCSO).

SAW crystal technology provides low-noise and low-jitter performance with true sinewave output.

Key Features

include -135 dBc/Hz phase noise at 10 kHz offset at 1 GHz, 5V input voltage, and 9×14 mm SMT package. The oscillator has no sub-harmonic and the second harmonic is typically -20 dBc.
