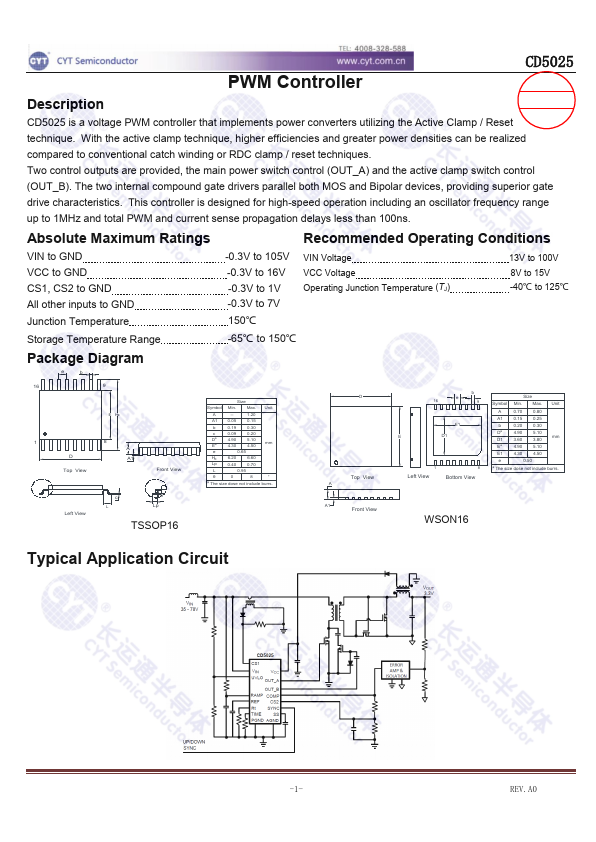

CD5025
CD5025 is PWM Controller manufactured by CYT.
Description
CD5025 is a voltage PWM controller that implements power converters utilizing the Active Clamp / Reset technique. With the active clamp technique, higher efficiencies and greater power densities can be realized pared to conventional catch winding or RDC clamp / reset techniques. Two control outputs are provided, the main power switch control (OUT_A) and the active clamp switch control (OUT_B). The two internal pound gate drivers parallel both MOS and Bipolar devices, providing superior gate drive characteristics. This controller is designed for high-speed operation including an oscillator frequency range up to 1MHz and total PWM and current sense propagation delays less than 100ns.
Absolute Maximum Ratings
VIN to GND VCC to GND CS1, CS2 to GND All other inputs to GND Junction Temperature
Storage Temperature Range
Remended Operating Conditions
-0.3V to 105V VIN Voltage
13V to 100V
-0.3V to 16V -0.3V to 1V -0.3V to 7V
VCC Voltage Operating Junction Temperature (TJ)
8V to 15V -40℃ to 125℃
150℃
-65℃ to 150℃
Package Diagram e b
E HE
A1
Top View
Front View
Left View c L
θ Lp
TSSOP16
Size
Symbol Min.
Max. Unit
--
A1
0.15 b
0.30...
