CD5026
CD5026 is PWM Controller manufactured by CYT.
Description

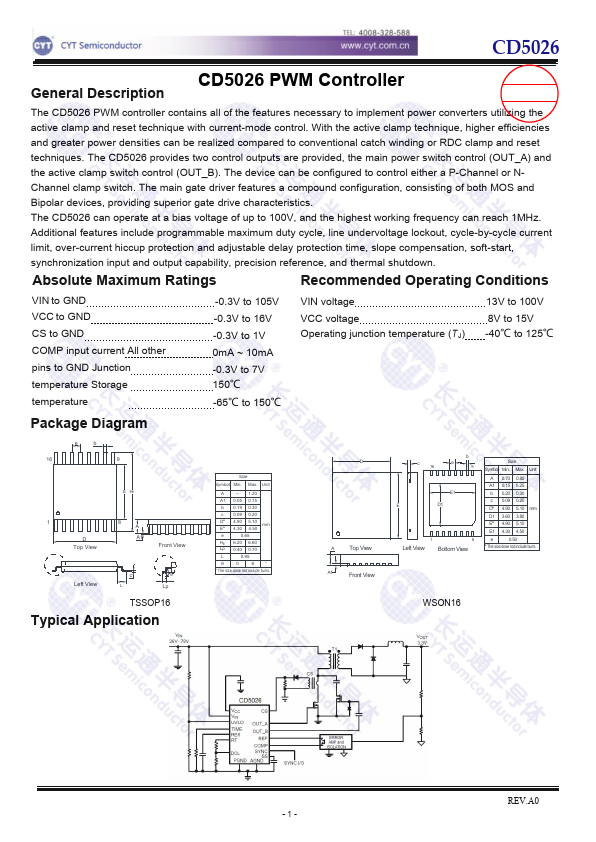

CD5026 PWM Controller
The CD5026 PWM controller contains all of the features necessary to implement power converters utilizing the active clamp and reset technique with current-mode control. With the active clamp technique, higher efficiencies and greater power densities can be realized pared to conventional catch winding or RDC clamp and reset techniques. The CD5026 provides two control outputs are provided, the main power switch control (OUT_A) and the active clamp switch control (OUT_B). The device can be configured to control either a P-Channel or NChannel clamp switch. The main gate driver features a pound configuration, consisting of both MOS and Bipolar devices, providing superior gate drive characteristics. The CD5026 can operate at a bias voltage of up to 100V, and the highest working frequency can reach 1MHz. Additional features include programmable maximum duty cycle, line undervoltage lockout, cycle-by-cycle current limit, over-current hiccup protection and adjustable delay protection time, slope pensation, soft-start, synchronization input and output capability, precision reference, and thermal shutdown.
Absolute Maximum Ratings
Remended Operating Conditions
VIN to GND VCC to GND CS to GND P input current All other pins to GND Junction temperature Storage temperature
-0.3V to 105V -0.3V to 16V -0.3V to 1V 0m A ~ 10m A -0.3V to 7V 150℃ -65℃ to 150℃
VIN voltage VCC voltage Operating junction temperature (T J)
13V to 100V 8V to 15V -40℃ to 125℃
Package Diagram e b
E HE
8 A
D Top View
A1 Front View c
θ
Left View
Lp
Size
Symbol Min. Max. Unit
-- 1.20
A1 0.05 0.15 b 0.19 0.30 c 0.09 0.20
Da 4.90 5.10
Ea mm 4.30 4.50 e
HE 6.20 6.60 Lp 0.40 0.70
θ
8° a The size dose not include burrs.
Top View
A1
Front View c
16 b...
