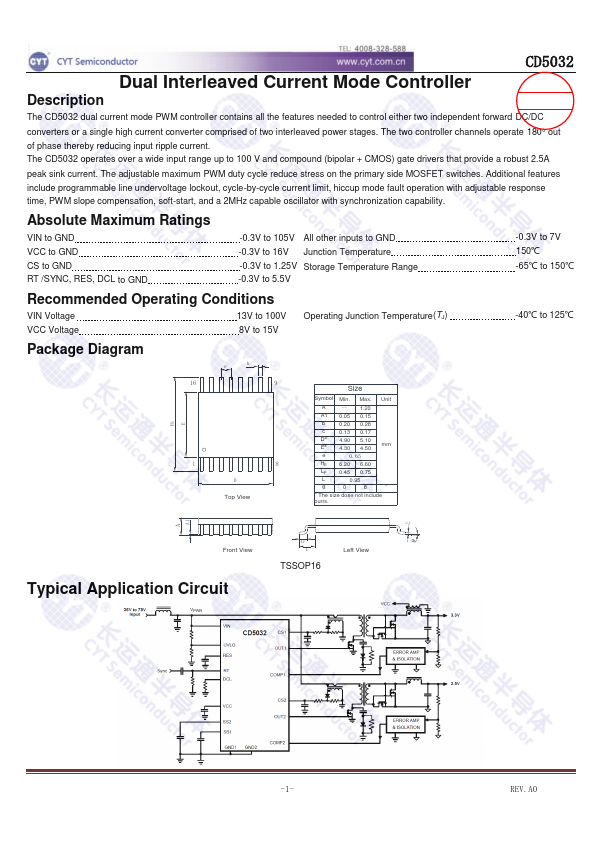

CD5032
CD5032 is Dual Interleaved Current Mode Controller manufactured by CYT.
Description
The CD5032 dual current mode PWM controller contains all the features needed to control either two independent forward DC/DC converters or a single high current converter prised of two interleaved power stages. The two controller channels operate 180°out of phase thereby reducing input ripple current. The CD5032 operates over a wide input range up to 100 V and pound (bipolar + CMOS) gate drivers that provide a robust 2.5A peak sink current. The adjustable maximum PWM duty cycle reduce stress on the primary side MOSFET switches. Additional features include programmable line undervoltage lockout, cycle-by-cycle current limit, hiccup mode fault operation with adjustable response time, PWM slope pensation, soft-start, and a 2MHz capable oscillator with synchronization capability.
Absolute Maximum Ratings
VIN to GND VCC to GND CS to GND RT /SYNC, RES, DCL to GND
-0.3V to 105V All other inputs to GND -0.3V to 16V Junction Temperature -0.3V to 1.25V Storage Temperature Range -0.3V to 5.5V
-0.3V to 7V 150℃ -65℃ to 150℃
Remended Operating Conditions
VIN Voltage
13V to 100V
VCC Voltage
8V to 15V
Operating Junction Temperature(TJ)
-40℃ to 125℃
Package Diagram e b
Top View
Size
Symbol Min. Max. Unit
-- 1.20
A1 0.05 0.15 b 0.20 0.28 c
0.13 0.17
Da 4.90 5.10
Ea mm 4.30 4.50 e
HE 6.20 6.60
LP 0.45 0.75
θ
° a The size dose not include burrs.
E A1 c θ
Front View
Typical Application Circuit
LP L
TSSOP16
Left...
