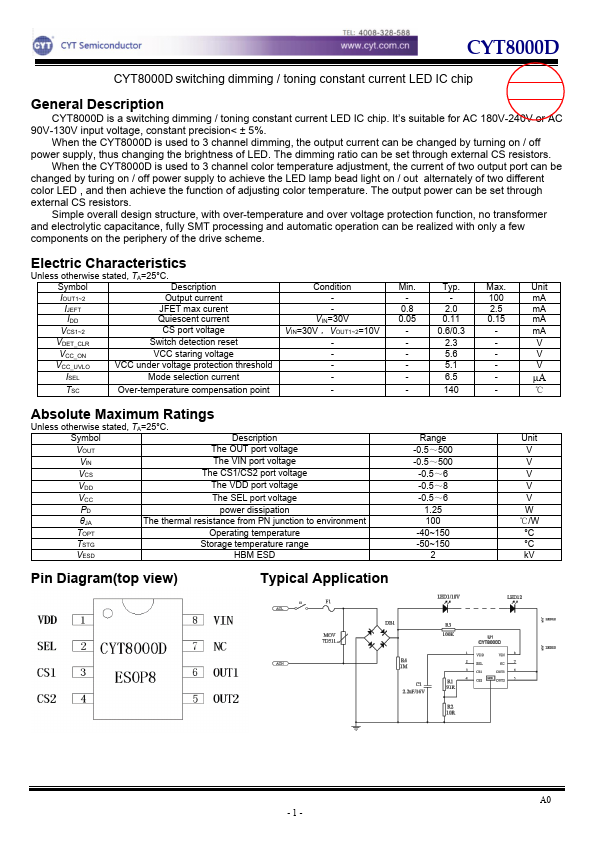

CYT8000D
CYT8000D is switching dimming / toning constant current LED IC manufactured by CYT.
CYT8000D switching dimming / toning constant current LED IC chip
General Description
CYT8000D is a switching dimming / toning constant current LED IC chip. It’s suitable for AC 180V-240V or AC 90V-130V input voltage, constant precision< ± 5%.
When the CYT8000D is used to 3 channel dimming, the output current can be changed by turning on / off power supply, thus changing the brightness of LED. The dimming ratio can be set through external CS resistors.
When the CYT8000D is used to 3 channel color temperature adjustment, the current of two output port can be changed by turing on / off power supply to achieve the LED lamp bead light on / out alternately of two different color LED , and then achieve the function of adjusting color temperature. The output power can be set through external CS resistors.
Simple overall design structure, with over-temperature and over voltage protection function, no transformer and electrolytic capacitance, fully SMT processing and automatic operation can be realized with only a few ponents on the periphery of the drive scheme.
Electric Characteristics
Unless otherwise stated, TA=25°C.
Symbol
Description
Condition
Min.
Typ.
Max.
Unit
IOUT1~2 IJEFT IDD
Output current JFET max curent Quiescent current
VIN=30V
- -
100 m A
2.5 m A
0.15 m A
VCS1~2
CS port voltage
VIN=30V ，VOUT1~2=10V
- 0.6/0.3
- m A
VDET_CLR
Switch detection reset
-...
