California Eastern Labs PS2501-1
The PS2501-1, -2, -4 and PS2501L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2501-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2501L-1, -2, -4 are lead bending type (Gull-wing) for surface mount.| Part No. | PS2501-1 |
|---|---|
| Datasheet | PS2501-1 Download |
| Manufacturer |  California Eastern Labs |
| Description | Photocoupler |
| Buy | Stock & Price |
DESCRIPTION
FEATURES
● High isolation voltage (BV = 5 000 Vr.m.s.)● High collector to emitter voltage (VCEO = 80 V)
● High-speed switching (tr = 3 µs TYP., tf = 5 µs TYP.)
● Ordering number of tape product: PS2501L-1-E3, E4, F3, F4, PS2501L-2-E3, E4
● Safety standards

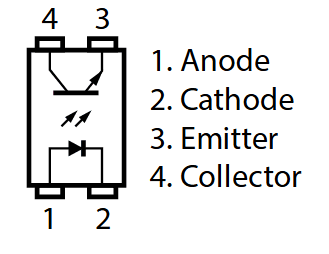

● UL approved: File No. E72422 1 2 PIN CONNECTION (Top View) PS2501-1, PS2501L-1 4 3 1. Anode 2. Cathode 3. Emitter 4. Collector
APPLICATIONS
● Power supply● Telephone/FAX.
● FA/OA equipment
● Programmable logic controller PS2501-2, PS2501L-2 8 7 6 5 1, 3. Anode 2, 4. Cathode 5, 7. Emitter 6, 8. Collector 1 2 3 4 PS2501-4, PS2501L-4 16 15 14 13 12 11 10 9 1 2 3 4 5 6 7 8 1, 3, 5, 7. Anode 2, 4, 6, 8. Cathode 9, 11, 13, 15. Emitter 10, 12, 14, 16. Collector Document No. PN10225EJ02V0DS (2nd edition) Date Published April 2005 CP(K) The mark shows major revised points. PS2501-1,-2,-4, PS2501L-1,-2,-4 PACKAGE DIMENSIONS (UNIT : mm) DIP Type (New package) PS2501-1 4.6±0.35 19.8±0.5 PS2501-4 6.5±0.5 7.62 6.5±0.5 7.62 3.2±0.
